SKU: BW01-XT-XWHM-Y-NA

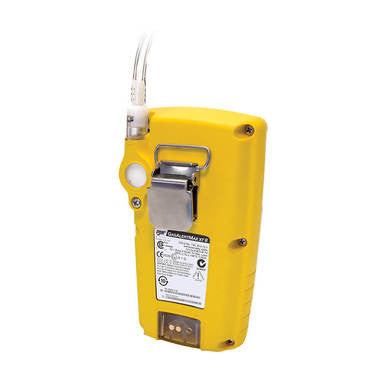

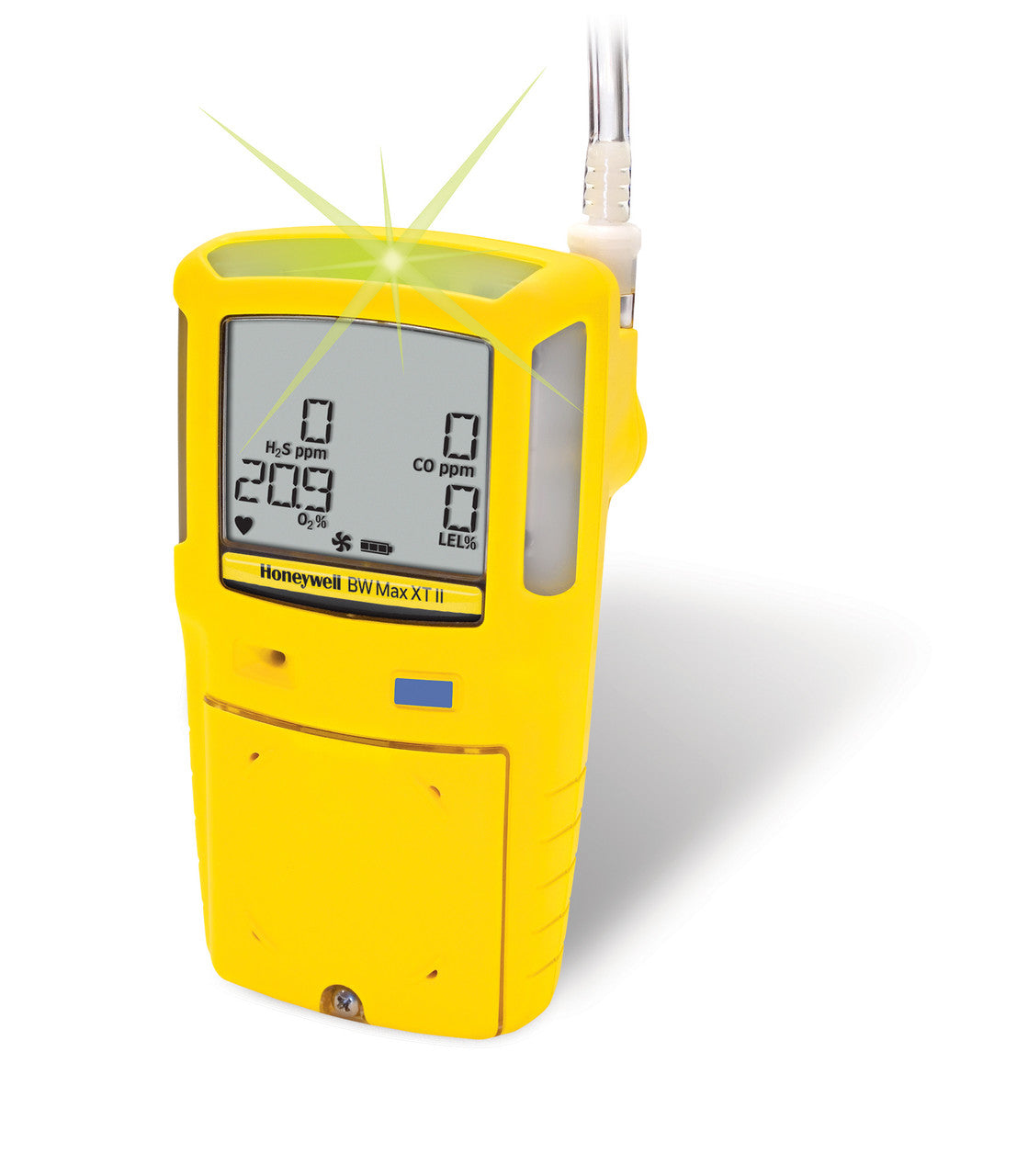

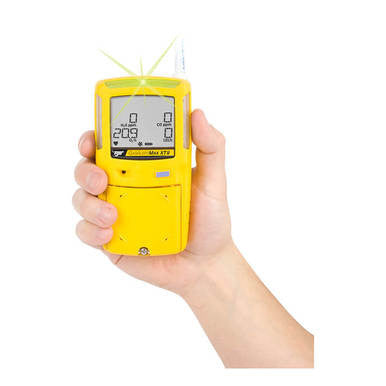

BW XT-XWHM-Y-NA Honeywell GasAlert Max XT II Confined Space Multi-Gas Monitor

$1,075.00

Ships in 5 - 7 days

Description

BW XT-XWHM-Y-NA GasAlert Max XT II Monitor is a multi-gas monitor with an internal pump that detects and monitors toxic gas levels.

It is perfect for confined space workers, oil rig workers, sewer technicians, engineers, firefighters, military personnel, or anyone else who works in hazardous spaces.

Key Features:

Sporting four gas sensors for detecting hydrogen sulfide (H2S), carbon monoxide (CO), oxygen (O2) and the LEL of a variety of dangerously combustible/flammable gases, the GasAlert Max XT II portable detector also features an internal pump for remote sampling.
It comes calibrated with a fully-charged battery, and is ready to use right out of the box.
The GasAlert Max XT II displays levels of all four gases on its bright, backlit LCD screen (which also shows you battery levels and pump activity).
A selection of alerts and alarms keep the worker aware of any dangerous levels. Bright alarm LED lights, vibration options, and a 95 dB alarm ensure the worker gets the message.
The GasAlert Max XT II also has an optional confidence beep, which tells you the device is operating and fully functional.
Alerts are available for Short Term Exposure Limits (STEL) (5-15 minutes), Long Term Exposure Limits (LTW; ~8 hours) as well as high/low levels for each gas.
Concussion-proof housing and an IP66/67 rating for water-resistance.
The internal sample draw pump is easy to maintain, with both moisture and particle filters protecting it, which are easy to monitor (via a filter window) and change.
One-button operation designed for use with gloved hands, making it easy to train staff.

The GasAlert Max XT II is compatible with the IntelliDoX for Gas Alert Max XT II DX-MAXXT for recording readings throughout a shift, for charging the kit, and for altering settings for alarms and tolerance levels.

Note: Calibration gas may be ordered separately. Due to HazMat regulations, calibration gas takes between 5–7 days to ship and will not arrive at the same time as the monitor.

Remember to calibrate every six months and regularly perform bump tests.

PK Safety services BW Technologies by Honeywell gas monitors in-house with factory-trained technicians. For help selecting the right part or to schedule calibration and repair, call 800.829.9580 or contact us online.

FAQs: How Often Do I Need To Calibrate My Gas Monitor?

The GasAlert Max XT II Includes:

Rechargeable battery
Wall charger
Calibration certificate
Manual (in hard copy)
Screwdriver
Five replacement particulate (thick) filters for the pump
Five replacement hydrophobic (thin) filters for the pump
One replacement filter for the end of the hose
One 3 ft. piece of clear hose with unit connector
One 10 ft. piece of clear hose with unit connector

Sensors:

H2S: 0-200 ppm (measuring range), 1 ppm (resolution)
CO: 0-1000 ppm (measuring range), 1 ppm (resolution)
O2: 0-30.0 percent (measuring range), 0.1 percent (resolution)
Combustible Gases: 0-100 percent LEL (measuring range), 1 percent (resolution)

Sensor Type	Calibration Gas Value	Low Alarm	High Alarm
H2S - Hydrogen Sulfide	25ppm	10ppm	15ppm
CO - Carbon Monoxide	100ppm	35ppm	200ppm
LEL - Methane Curve	50% LEL	10% LEL	20% LEL
O2 - Oxygen	18% VOL	19.5% VOL	23% VOL

Specifications:

Size: 5.1 x 2.8 x 2.0 inch
Weight: 11.5 oz.
Temperature: -4 to 122° F
Alarms: Visual/audible
Typical battery life: 13 hours at 32° F/ 8 hours at -4° F
Recharges in 6 hours
Pump draw: Sample pump from up to 75 ft.
Warranty: Full two year warranty including all sensors

Specification Sheet:

Brochure:

Product Guide:

Manual:

Quick Reference Guide:

Part Number:
XT-XWHM-Y-NA - GasAlert Max XT II or GasAlert Max XT 2

Frequently Asked Questions

What gases does the GasAlert Max XT II detect?

The GasAlert Max XT II (XT-XWHM-Y-NA) simultaneously detects four gases: hydrogen sulfide (H2S, 0-200 ppm), carbon monoxide (CO, 0-1000 ppm), oxygen (O2, 0-30%), and combustible gases (LEL, 0-100%). Default alarm setpoints are H2S 10/15 ppm, CO 35/200 ppm, LEL 10%/20%, and O2 19.5%/23% vol. per OSHA requirements for confined space entry (29 CFR 1910.146).

Does the GasAlert Max XT II come ready to use?

Yes. The unit ships pre-calibrated with a fully charged battery. Included in the package: rechargeable battery, wall charger, calibration certificate, user manual, screwdriver, particle filters (5), hydrophobic filters (5), hose end filter, 3 ft. hose, and 10 ft. hose. Order separate 4-gas calibration gas for on-site calibration needs.

Can the GasAlert Max XT II be used with an IntelliDoX docking station?

Yes. The Max XT II is compatible with the BW IntelliDoX DX-MAXXT docking station for automated bump testing, calibration, alarm setpoint configuration, and compliance data transfer. The IntelliDoX Enabler Kit DX-ENBL-NA is required for operation.

How long does the battery last on the GasAlert Max XT II?

Typical battery life is 13 hours at 32°F and 8 hours at -4°F. The rechargeable battery recharges fully in 6 hours. The replaceable battery kit XT-BAT-K1 is available for field battery replacement to extend operational uptime.

What is the pump sampling range of the GasAlert Max XT II?

The internal sample draw pump can pull air samples from up to 75 feet away, making it ideal for pre-entry atmospheric testing of confined spaces such as tanks, manholes, and vaults. Use the included 3 ft. and 10 ft. hoses, or add longer hoses as needed. The pump filters are visible through a filter window and easy to replace with replacement filter packs.

Does PK Safety offer service and calibration for the GasAlert Max XT II?

Yes. PK Safety is a BW Technologies / Honeywell Factory Authorized Service Center. We provide factory-authorized calibration through our BW Gas Monitor Calibration Service and can service, repair, and recertify your Max XT II instruments. Call 800.829.9580 for service details.
