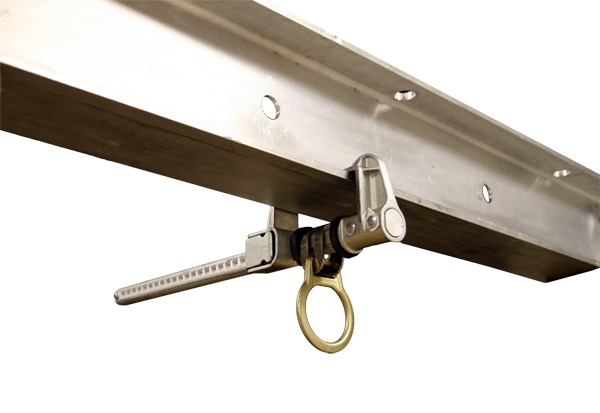

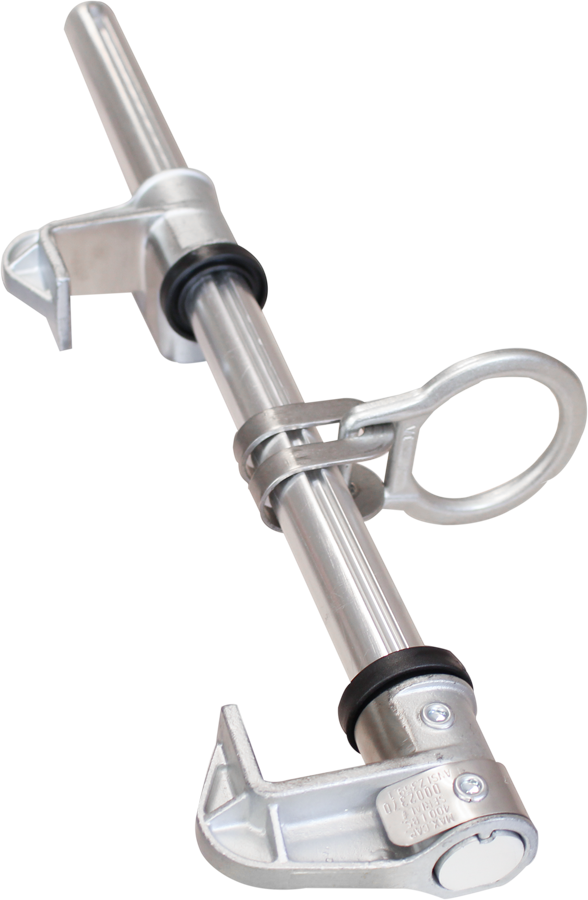

French Creek Sliding Beam Anchor w/Floating D-Ring 1702

Usually ships in 5 - 7 days
$149.04

Frequently Bought Together

French Creek Sliding Beam Anchor with Floating D-Ring is light, smooth, and easy to use. I-beam anchors are designed to connect to a steel I-beam for fall protection. The clamps attach without tools to I-beams either overhead or underfoot.

Key Features:

  • Quick, easy installation and attachment
  • Plated, corrosion resistant hardware
  • Fit flanges 3-1/2" to 14" wide, up to 1-1/4" thick
  • Usable on top or bottom of I-beam
  • Floating d-ring and one adjustable end
  • Weight Capacity130-310 Lbs ANSI 400 Lbs. OSHA
  • ANSI Z359.1, OSHA 1926.502

Part Number:
1702


Additional Details:

SKU:
FRC01-1702
Weight:
3.75 LBS
Width:
12.00 (in)
Height:
7.00 (in)
Depth:
19.00 (in)
Shipping:
Calculated at Checkout
D-Ring:
3.75 Lbs
Standards:
ANSI Z359.1, OSHA 1926.502
Size:
Fits 3-1/2" to 12" flange
Weight Capacity:
130-310 lbs. ANSI, 400 lbs. OSHA
Install Type:
Reusable
Attachment Type:
Wedge
Material:
High strength stainless steel, high strength alloy steel dee ring
