BW IntelliDoX Docking Station for 4-Gas Monitors DX-MCLP
Description

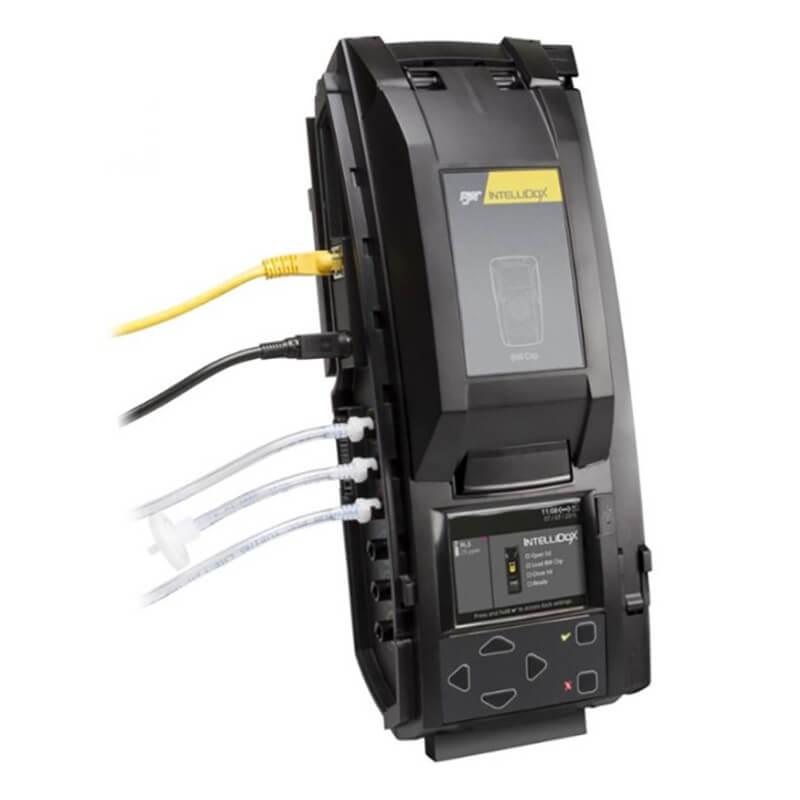

The BW DX-MCLP IntelliDoX Docking Station is a bump test and calibration station for the BW GasAlert MicroClip XL (MCXL-XWHM-Y-NA) and GasAlert MicroClip X3 (MCX3-XWHM-Y-NA) 4-gas monitors.
The IntelliDoX comes with a complete 2-year warranty.
Please Note: The BW IntelliDoX Enabler Kit DX-ENBL-NA is required to operate the IntelliDoX Docking Station.
Key Features:
- Enables fast bump testing, tracking, email notices, and easy record-keeping for improved compliance
- Performs the quickest bump test in the industry for increased uptime and no wasted calibration gas
- Enables the ability to change alarm setpoints, set a noncompliance indicator when a bump test is due, and adjust other parameters for maximum flexibility
- Easy setup with a network or USB drive — no tools required
- Expandable to five docking modules that can operate independently, while sharing power, network connection, and calibration gas
- Easy data transfer (by Ethernet or USB) from docking module to computer
- Communications method: Two-way infrared communication between docking module and detector
- Data storage: 2 GB internal
- 12 V / 8.33A ITE power supply
- Automatic tests: Fast bump in 10 seconds, Standard bump in 40 seconds
- Compatible with the Calibration Gas Demand Flow Regulator
Part Number:
DX-MCLP
PK Safety services BW Technologies by Honeywell gas monitors in-house with factory-trained technicians. For help selecting the right part or to schedule calibration and repair, call 800.829.9580 or contact us online.
Related Searches
Bw Technologies By Honeywell, Gas Detection Docking Stations, Gas Detection
Frequently Asked Questions
Which gas monitors work with the IntelliDoX DX-MCLP?
The DX-MCLP is designed for the GasAlert MicroClip XL (MCXL-XWHM-Y-NA) and GasAlert MicroClip X3 (MCX3-XWHM-Y-NA). For GasAlert Max XT II monitors, use the DX-MAXXT. For BW Clip single-gas monitors, use the DX-CLIP. For BW Flex detectors, use the DX-CP.
Is the Enabler Kit required for the DX-MCLP?
Yes. The BW IntelliDoX Enabler Kit DX-ENBL-NA is required to operate the DX-MCLP docking station. The Enabler Kit includes the power supply, AC cord, Ethernet cable, inlet filter assembly, calibration and purge tubing, exhaust tubing, quick connect fittings, and the IntelliDoX inlet end plate. Order the docking station module and Enabler Kit together.
How fast is the bump test on the DX-MCLP?
The DX-MCLP supports two bump test modes: FastBump (10 seconds) for rapid compliance verification and Standard bump (40 seconds) for more thorough testing. FastBump eliminates the traditional purge cycle, saving both time and calibration gas. Up to five DX-MCLP modules can be ganged together to simultaneously test up to five MicroClip monitors.
What calibration gas does the MicroClip XL/X3 need with the DX-MCLP?
Use a 4-gas calibration mix containing CH4 50% LEL, H2S 25 ppm, CO 100 ppm, O2 18% vol. Options include the BW CG-Q34-4 (34L) or the BW CG-Q58-4 (58L). A demand flow regulator is recommended for controlled gas delivery to the IntelliDoX.
Can alarm setpoints be changed using the DX-MCLP?
Yes. The DX-MCLP allows configuration of alarm setpoints (high and low) for connected MicroClip monitors, enabling or disabling the noncompliance indicator when a bump test is due, and other parameter adjustments throughout the monitor's service life. All changes are tracked in the Honeywell Safety Suite data log.
Can PK Safety help configure the DX-MCLP for my fleet?
Yes. PK Safety is a BW Technologies / Honeywell Factory Authorized Service Center. Our technicians can assist with IntelliDoX setup, calibration gas selection, Safety Suite integration, and fleet compliance program design. Call 800.829.9580 for support or fleet pricing.
Read more
