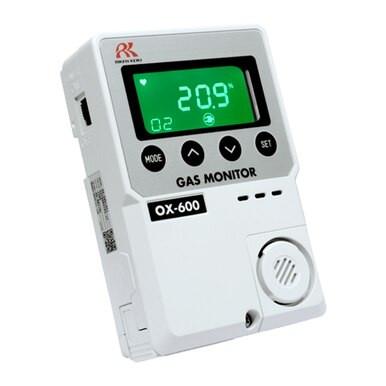

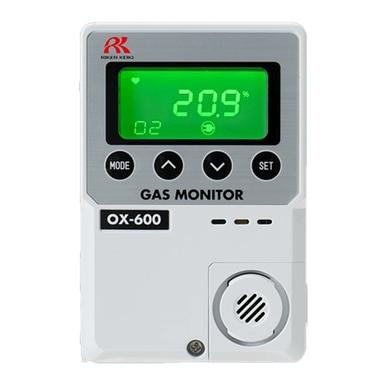

The OX-600 is an indoor, standalone monitor that detects Oxygen with a range of 0-25.0 % volume with 0.1% increments. The OX-600 has two preset alarms, and comes ready to operate with a simple wall mount bracket and a 10 ft power cord. An audible alarm tone and the multicolored LED digital display notify the user when alarm is triggered. The Monitor uses a fast responding low-cost plug-in style galvanic cell sensor. This sensor is field replaceable with no tools required. The sensor can be remotely mounted with an optional remote sensor cable.
Applications: laboratories, cryogenic environments, clean rooms, industrial gas facilities, gas storage rooms, indoor monitoring, iron and steel industry, warehouses, tunnels and garages, vehicle service areas.
Key Features:
- Operates with or without a controller
- Tri-color visual alarm display: Green=Normal, Yellow=Alarm 1, Red=Alarm 2
- Large, easy-to-read digital display
- Pressure compensation eliminates false alarms caused by pressure change
- Power: 24VDC or 115 VAC
Note: The OX-600's standard configuration is with the sensor installed in the main unit. Please call customer service to specify when ordering if you want an extender cable with a remote sensor. The sensor integrated type does not include the remote sensor.
Alarm Levels: Two preset alarms (L-LL), alarm 1 = 19.5% vol, alarm 2 = 18.0% vol
Data Sheet:
Manual:
Part Number:
72-1005 - O2 Single Gas Monitor 24 VDC
72-1006 - O2 Single Gas Monitor 115 VAC
- SKU:
- RKI01-72-100_
- Weight:
- 0.60 LBS
- Width:
- 3.15 (in)
- Height:
- 1.20 (in)
- Depth:
- 4.72 (in)
- Shipping:
- Calculated at Checkout
- Color:
- White
- Type:
- Single-Gas
- Gas Type:
- Oxygen (O2)
