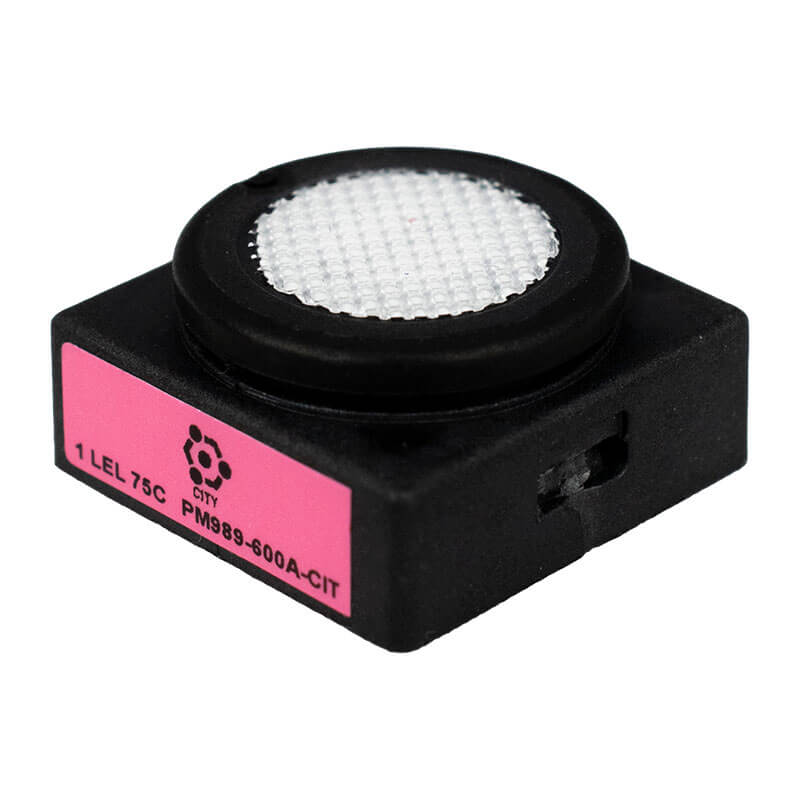

WatchGas SST4-MINI & SST4-PUMP CAT LEL Sensor SST-X2-RPL

The SST-X2-RPL is compatible with:

• WatchGas SST4-MINI Diffusion 4-Gas Detector — when configured with the X2 (CAT) LEL sensor
• WatchGas SST4-PUMP 4-Gas Detector — when configured with the X2 (CAT) LEL sensor

It is NOT compatible with the SST4-MICRO (that monitor uses the smaller LPC MEMS pellistor — use SST-X1-RPL), or with MINI/PUMP monitors configured with NDIR (use SST-X3-RPL) or PUMP-specific LPC (use SST-X4-RPL).

If you're not certain how your MINI or PUMP was configured, check the invoice or product label, or call PK Safety at 800.829.9580 with the serial number and we'll confirm which X-variant fits.

This is a real technology-choice decision, not a marketing upsell. Both sensors work well in the right environment.

Stay with CAT (SST-X2-RPL) if:

• Your monitoring environment is clean — no silicones, minimal H2S, no halogens
• You need broad-spectrum response across many different hydrocarbons (methane, propane, butane, natural gas, solvents, alcohols) — CAT covers the widest range
• Your calibration workflow uses methane or pentane span gas — both are standard for CAT
• You want the industry-standard sensor tech with the longest field track record and predictable calibration behavior
• You're primarily monitoring methane in oil & gas, natural gas utility, or wastewater digester applications without heavy H2S co-exposure

Upgrade to NDIR (SST-X3-RPL) if:

• Your environment has silicones (RTV sealants, mold-release agents, silicone-heavy lubricants) — CAT poisoning is progressive and permanent
• You work in sour gas (high H2S) oil & gas fields — CAT can be poisoned by sustained H2S exposure
• You work around chlorinated solvents or refrigerants — halogens inhibit CAT response
• You need LEL monitoring in oxygen-deficient atmospheres (below ~10% O2) — CAT requires oxygen to function; NDIR does not
• You want to eliminate the pellistor-poisoning failure mode from your fleet entirely and are willing to trade broad-spectrum response (NDIR only detects IR-active hydrocarbons — methane, propane, natural gas) for poisoning immunity

Call PK Safety at 800.829.9580 to talk through your specific environment. Note that upgrading from CAT to NDIR requires the correctly-configured monitor — you can't just drop the X3 sensor into a monitor built for X2 without WatchGas-side configuration.

Toxic-gas sensors (H2S, CO, O2) protect against exposure — the alarm setpoints are anchored to permissible exposure limits like OSHA PELs or NIOSH RELs, and the concentrations of concern are typically parts per million.

LEL sensors protect against fire and explosion. The scale is 0–100% LEL, where 100% LEL means the atmosphere has reached the lower flammable limit and is now ignitable given a spark or heat source. The concentrations are much higher than toxic thresholds — methane at 100% LEL is about 5% by volume, or 50,000 ppm.

OSHA's permit-required confined space rule (29 CFR 1910.146) draws two hard lines: workers must retrieve at 10% LEL, and evacuate at 100% LEL. A drifting LEL sensor means those hard lines are being drawn in the wrong place. The consequence isn't a delayed alarm on a slowly-escalating exposure — it's the difference between exiting a confined space safely and being inside when an atmosphere becomes ignitable.

The most common CAT LEL sensor failure modes:

• Silicone poisoning — the classic pellistor killer. Silicones from RTV sealants, greases, lubricants, some hand creams and hair products, and industrial mold-release agents deposit on the catalytic bead and reduce its catalytic activity. Damage is progressive and typically permanent.
• Sulfur compound poisoning (H2S, mercaptans) — common concern in oil & gas (especially sour gas fields), wastewater, and any environment where H2S is present alongside methane.
• Halogen poisoning — chlorinated solvents, refrigerants, and other halogenated compounds can inhibit pellistor response.
• Over-range exposure — pellistor cells exposed to concentrations above 100% LEL can be thermally damaged by the exothermic reaction and may not recover full sensitivity.
• Mechanical shock — traditional catalytic bead pellistors can crack the bead structure under impact. The CAT variant in the SST-X2-RPL is a robust industrial-grade pellistor, but drops onto hard surfaces can still cause failures.
• Normal wear — pellistor cells drift with cumulative use as the bead structure ages. This is why calibration cadence matters and why a 2-year warranty exists.

If your monitor has been used in an environment with silicone, sulfur, or halogen exposure and the LEL channel is showing drift, poisoning is the most likely cause. A drift you can't recover with calibration is a replacement signal, not a re-calibration signal — and if the poisoning source is still present, consider whether NDIR (SST-X3-RPL) is a better long-term fit.

CAT is the industry-standard LEL sensor for broad hydrocarbon response, so the SST4-MINI (X2 config) and SST4-PUMP (X2 config) buyer set is broad — anyone doing confined-space entry, hot-work permits, or general industrial atmosphere monitoring where a mix of combustible gases is possible.

• Oil & gas exploration, production, and field service — LEL monitoring at wellheads, tank batteries, and confined spaces (CAT is well-suited to sweet gas; consider NDIR for sour gas)
• Petroleum refining and petrochemical plants — hot-work permits, tank entry, unit shutdowns and turnarounds (SST4-PUMP with CAT is common for remote sampling in tank entry workflows)
• Natural gas utilities and pipelines — distribution work, meter sets, service repairs, leak surveys
• Wastewater treatment — methane digester gas monitoring in wet wells, headworks, and process confined spaces (be alert to H2S co-exposure poisoning risk)
• Confined-space entry contractors — utility (sewer, water, telecom vaults), industrial, marine, tank cleaning
• Landfill and biogas — methane monitoring in gas collection systems
• Brewery, distillery, and fermentation — ethanol vapor monitoring in cellars, tank rooms, and process areas
• Painting, coatings, and print shops — solvent vapor monitoring (be alert to silicone-based mold-release agents)
• Marine vessel interior spaces — cargo holds, engine rooms, ballast tanks

Both paths work. The SST4 platform is designed for user sensor replacement, and the WatchGas SST4-MINI / SST4-PUMP manual walks through the swap procedure. After installation, you must complete a full calibration to verify the new LEL sensor's response against a known span gas — typically 50% LEL methane (2.5% CH4 in air) or 50% LEL pentane, depending on your calibration protocol.

LEL calibration is more straightforward than specialty-gas calibration (methane cal gas is standard, non-corrosive, and widely stocked), so DIY sensor swap is a realistic path if you have a functioning calibration workflow.

If you don't have LEL cal gas or a calibration station on hand — or you'd rather have the swap done by a factory-trained technician who verifies calibration against multiple LEL span points — sending the monitor to PK Safety is often the safer path. We handle the swap, cal gas, and return-to-service documentation.

The SST-X2-RPL sensor cell costs $175. A full new SST4-MINI monitor starts at $720; the SST4-PUMP is higher. Sensor swap saves $545+ vs full-monitor replacement.

Sensor replacement is the more cost-effective path when the monitor's housing, display, battery, pump (on the PUMP variant), and other three sensors (O2, CO, H2S) are in good working order. Full-monitor replacement is a better fit when the monitor itself is aging, has physical damage, has a battery that no longer holds charge, or has multiple sensors due for replacement — and a full new monitor comes with the 3-year instrument warranty on the electronics.

If the reason you're replacing the LEL sensor is CAT poisoning by silicones, H2S, or halogens — and the poisoning source is still present in your environment — the right call may actually be an NDIR upgrade path (SST-X3-RPL) rather than another CAT sensor. Call PK Safety at 800.829.9580 to talk through the decision.
