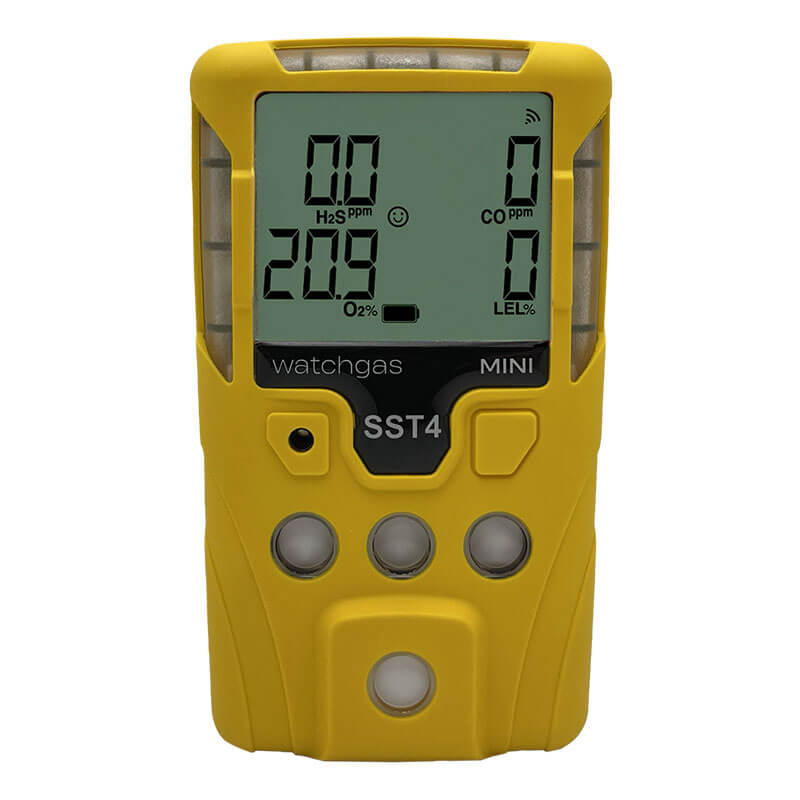

WatchGas SST4-MINI Diffusion 4-Gas Detector

Both cover the same four confined-space gases (O2, LEL, H2S, CO) with the same alarm setpoints, same 48-hour battery, and same WatchGas SST platform features. The MINI's smaller form factor is the deciding factor when you or your crew work hands-full and can't clip a larger case to a belt or harness for a full shift.

Consider fit and wearability alongside the technical spec. A 4-gas monitor a worker actually wears all shift protects them more than a larger one that gets set on the truck seat when the day gets busy. Utility line workers, HVAC service techs, plumbers, and confined-space-adjacent tradespeople typically choose the MINI. For fleet-safety programs where the monitor lives on a dedicated entry-team member or in a fixed monitoring station, the MICRO's larger physical case is often preferable. Same platform, different wearability profile — pick the one your crew will actually keep on their body.

Under OSHA's permit-required confined-space entry standard (29 CFR 1910.146), the atmosphere is classified oxygen-deficient below 19.5% O2 and oxygen-enriched above 23.5% O2. For combustible gases, entry is prohibited when concentrations exceed 10% of the lower explosive limit (LEL). Toxic-gas alarms are set below OSHA's permissible exposure limits — for H2S, the OSHA ceiling is 20 ppm (29 CFR 1910.1000 Table Z-2); for CO, the 8-hour PEL is 50 ppm.

The SST4-MINI ships with configurable low, high, TWA, and STEL setpoints for each gas. Factory-set alarm points are documented in the specification sheet.

Catalytic bead (CAT) is a traditional LEL sensor — well-proven, effective in standard oxygenated atmospheres, but requires oxygen in the sample stream to produce a reading. NDIR (Non-Dispersive Infrared) reads combustibles by absorbing an IR wavelength specific to the target hydrocarbon and does not require oxygen — which means it works in inerted atmospheres (nitrogen blankets, CO2 storage, semiconductor process spaces) where CAT sensors go blind.

For standard trades and confined-space work in normal atmospheres, LEL CAT is the mainstream choice at a lower cost. Spec the NDIR variant if any of your entries involve intentionally-inerted spaces. If you're unsure whether a given space is likely to be inerted, call PK Safety at 800.829.9580 and describe the work — we can help you pick the right sensor variant.

Bump test before every use — a quick check with a known gas concentration that confirms each sensor responds and the alarms fire. Calibration is a longer procedure that adjusts sensor readings against a certified gas concentration standard. Manufacturer recommendation for the SST4 platform is calibration every six months at minimum; many operators calibrate quarterly or after any alarm event.

The WatchGas SST-DOCK automates both bump test and calibration in about 60 seconds per unit and produces the compliance logs OSHA auditors expect under 29 CFR 1910.146 recordkeeping.

Yes. The SST4-MINI is fully compatible with the WatchGas SST-DOCK Touchscreen docking station for bump testing, calibration, and datalogging. The SST-DOCK handles SST4-MINIs, SST4-MICROs, SST4-PUMPs, and SST1 series monitors interchangeably — one dock, one workflow across a mixed fleet.

The wireless-charging pad on the SST-DOCK connects to the SST4-MINI with no cable connectors — one docking session covers bump test, calibration, log upload, and battery charge in a single hands-off workflow.

PK Safety carries the full WatchGas SST line and services the SST4-MINI with factory-trained technicians in-house. That covers sensor replacement, calibration, firmware updates, and warranty support. Call 800.829.9580 to talk through your 4-gas program with someone who understands trades-level confined-space and hands-full work — not a call-center script.

PK Safety also handles BW/Honeywell (Factory Authorized), RKI, and RAE Systems monitors under the same roof, so a mixed-brand fleet doesn't mean shipping to multiple service centers.
