SKU: WG01-SST1-O

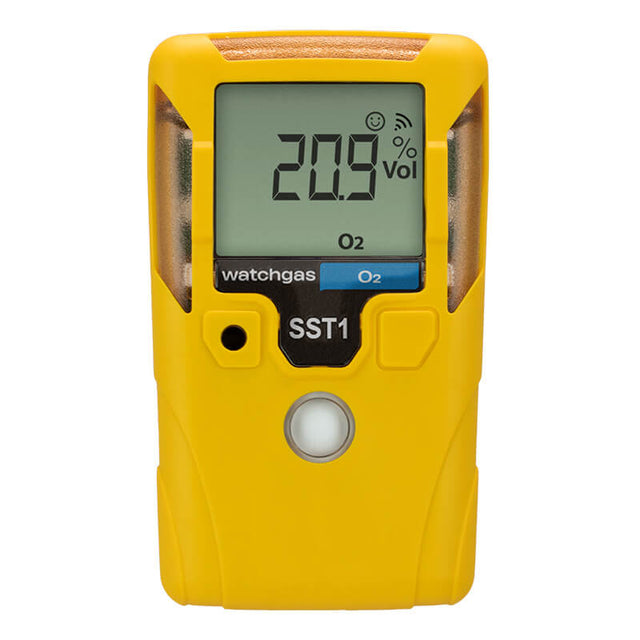

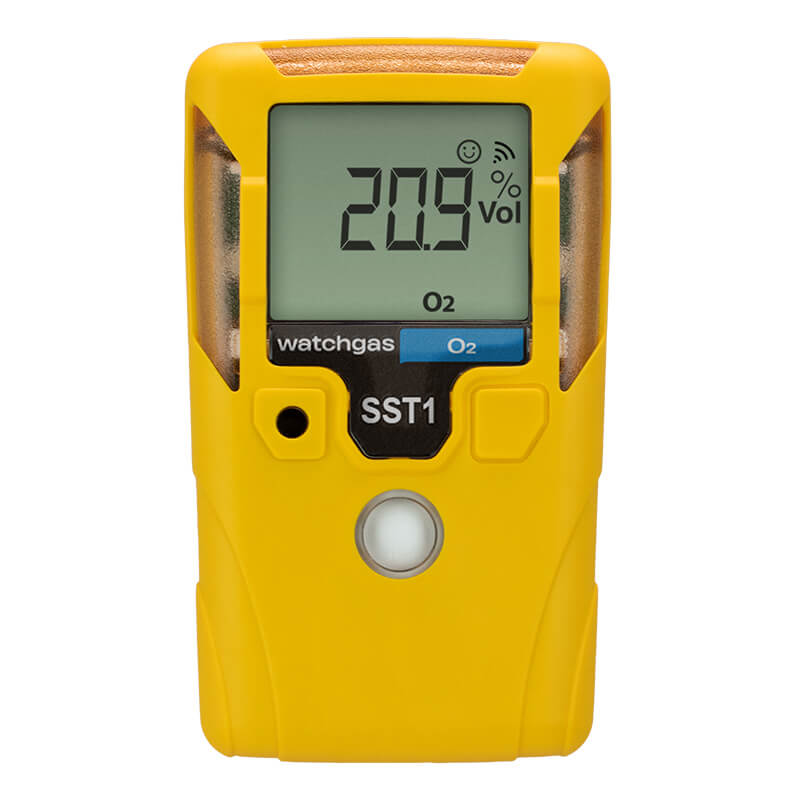

WatchGas SST1 Serviceable O2 Gas Detector SST1-O

$210.00

Ships in 2 - 3 weeks

Description

Oxygen deficiency is silent. The gases that displace oxygen — nitrogen, argon, helium, carbon dioxide, methane — are almost all colorless and odorless at the concentrations that matter.

A worker in a nitrogen-purged tank, a CO2-flooded fermentation cellar, a cryogenic storage room, or a semiconductor process bay can lose consciousness in minutes with no sensory warning. The atmosphere feels normal until cognitive impairment sets in — and at that point, workers often lose the ability to accurately judge their own condition.

The WatchGas SST1-O reads oxygen concentration continuously by percent-by-volume, with configurable alarms at OSHA's 19.5% oxygen-deficient classification and the 23.5% oxygen-enriched threshold.

Under 29 CFR 1910.146 (permit-required confined space) and 29 CFR 1910.134 (respiratory protection), atmospheres below 19.5% O2 are classified oxygen-deficient and atmospheres above 23.5% are classified oxygen-enriched (fire/combustion hazard). Configurable low, high, TWA, and STEL alarms can be tuned to OSHA compliance levels or a stricter internal standard. Vibration, audible, and visual alarms reach workers before cognitive impairment does. Single-button acknowledgment for gloves-on operation.

Why the freshness question matters on an O2 monitor:

Oxygen sensors have finite service life — typically 1 to 2 years, often shorter than CO or H2S sensors on the same platform. As the sensor ages, response slows and readings drift; a sensor that has lost 10–15% responsiveness may still show a normal-looking oxygen level while missing an actual deficiency onset. In operations where atmospheric oxygen displacement is routine (breweries, cryogenics, semiconductor fabs, food-packaging with inert flush), sensor drift is more consequential than in typical industrial monitoring.

The WatchGas SST1 platform is designed to be serviced: the O2 sensor cell is replaceable, the battery is replaceable, and PK Safety handles both in-house. When the sensor reaches end-of-life, send the unit in for a fresh sensor — the instrument stays in service.

Why safety managers standardize on the SST1-O:

Continuous O2 monitoring across 0–25% by volume with configurable low, high, TWA, and STEL alarms
Alarm setpoints at OSHA thresholds: 19.5% oxygen-deficient classification, 23.5% oxygen-enriched classification (per 29 CFR 1910.146)
Serviceable sensor cell — replace at end-of-life instead of scrapping the whole monitor
Serviceable battery — 2-year rated
3-year instrument warranty; 2-year sensor warranty
Solid polymer sensor technology
NFC configuration and WatchGas App for phone-based setup
Vibration, audible, and visual alarms — you notice it in a running-machine environment or a quiet fermentation cellar
Compatible with the WatchGas SST-DOCK for automated bump test, calibration, and datalogged compliance workflow
Datalogging for compliance audits under 29 CFR 1910.146 recordkeeping

PK Safety services the full WatchGas SST line with factory-trained technicians in-house. We also handle BW/Honeywell (Factory Authorized), RKI, and RAE Systems monitors — one shop for a mixed fleet. If the O2 sensor drifts or reaches end-of-life, send the unit to us for replacement — you're not shipping equipment into a black box. Call us at 800.829.9580 to talk through your oxygen-deficiency monitoring setup with someone who understands the operational patterns and the WatchGas SST platform.

This is right for you if:

You do permit-required confined-space entries into tanks, vaults, or vessels that may have been purged with inert gas
You run food or beverage inert-packaging operations (nitrogen or CO2 flush on packaging lines, MAP packaging)
You operate a brewery, winery, or cidery (fermentation CO2 accumulates in cellars, walk-in coolers, and holding-tank areas)
You work with cryogenic gases (liquid oxygen, liquid nitrogen, liquid argon — boil-off displaces atmospheric oxygen in enclosed spaces)
You work in a semiconductor fab or a similar cleanroom process environment (inerted glove boxes, process-gas rooms)
You maintain medical gas storage facilities (bulk O2, but also large nitrogen or argon storage)
You work pharmaceutical or specialty-chemical operations with nitrogen-purged reactors, isolators, or storage
You need audit-ready O2 exposure logs for OSHA recordkeeping under 29 CFR 1910.146

Technical documents:

Brochure

Specification Sheet

Manual

Firmware Download

Part Number: WG01-SST1-O — O2 0–25% vol. Serviceable, Real Time Display (Oxygen)

Frequently Asked Questions

What is OSHA's oxygen threshold for confined-space entry?

Under 29 CFR 1910.146 (permit-required confined space), OSHA classifies an atmosphere with less than 19.5% O2 by volume as oxygen-deficient and an atmosphere with more than 23.5% O2 as oxygen-enriched (a fire and combustion hazard). Below 19.5%, entry is not permitted without supplied-air respiratory protection under 29 CFR 1910.134. Below 23.5% (on the enriched side), combustion risk rises rapidly — many materials that don't burn in normal air will ignite readily in an oxygen-enriched atmosphere.

NIOSH's IDLH threshold for oxygen deficiency is 6% by volume — below that level, workers can lose consciousness within seconds. Cognitive impairment begins well before IDLH: at approximately 16% O2, judgment and reaction time are noticeably degraded; at 12%, workers may not recognize danger; at 8%, unconsciousness typically occurs within a few minutes. This is why the SST1-O alarm at 19.5% is not a comfort threshold — it is the regulatory line that triggers OSHA's protective requirements.

Why is oxygen deficiency more dangerous than most workers realize?

Oxygen deficiency has no sensory warning. The gases that displace oxygen in industrial atmospheres — nitrogen, argon, helium, carbon dioxide, methane — are colorless, odorless, and non-irritating at the concentrations at which they displace enough O2 to be dangerous. There is nothing a worker's senses can detect until symptoms appear.

The physiological mechanism is more insidious than most workers understand. Silent hypoxia produces cognitive impairment before physical symptoms. At 16% O2, judgment and reaction time are affected — but at that concentration, workers also lose the ability to accurately assess their own condition. In many oxygen-deficiency fatalities, the tragic pattern is: a worker enters a space unaware it is oxygen-deficient; a colleague enters to help; the rescuer is affected before completing the rescue. Continuous O2 monitoring in any atmosphere subject to displacement is the only reliable warning system.

What does "serviceable" mean on the SST1-O?

Traditional single-gas O2 monitors are single-use — when the sensor reaches end-of-life (typically 1–2 years for oxygen sensors), the whole unit gets scrapped and replaced. The SST1 platform is designed to be serviced: the O2 sensor cell is replaceable, and the battery is also replaceable (2-year rating). PK Safety services the WatchGas SST line in-house — send the unit in when the sensor or battery needs replacement.

Oxygen sensors drift as they age, and drift on an O2 monitor is silent. A sensor that has lost 10–15% responsiveness will still show readings that look normal — but the alarm may not fire at the concentration where it was set. Replacing the sensor cell restores full responsiveness without buying a new instrument.

How often should I bump test and calibrate the SST1-O?

Bump test before every use — in the case of an O2 sensor, the bump test is typically a fresh-air baseline check (confirming the sensor reads ~20.9% in normal atmosphere) plus a controlled dilution test to confirm the alarm fires at the setpoint. Calibration is a longer procedure using certified span gas.

Manufacturer recommendation for the SST1 platform is calibration every six months at minimum. Operations with continuous oxygen displacement exposure (breweries with active fermentation, cryogenic storage rooms, semiconductor process bays) often calibrate more frequently — quarterly or after any alarm event — because O2 sensor drift accelerates in altered-atmosphere environments. The WatchGas SST-DOCK automates both bump test and calibration in about 60 seconds per unit and produces compliance logs under 29 CFR 1910.146 recordkeeping.

Does the SST1-O work with the WatchGas SST-DOCK docking station?

Yes. The SST1-O is fully compatible with the WatchGas SST-DOCK Touchscreen docking station for bump testing, calibration, and datalogging. If you're running a fleet of SST1 monitors (SST1-O for O2, SST1-H for H2S, SST1-M for CO, and other gas variants), the SST-DOCK handles them all interchangeably and generates timestamped logs suitable for OSHA audits.

The bump test plus calibration workflow takes about 60 seconds per unit — fast enough to run a fleet through end-of-shift without slowing crew turnover.

How does PK Safety support the SST1-O after purchase?

PK Safety carries the full WatchGas SST line and services the SST1-O with factory-trained technicians in-house. That covers sensor replacement, battery replacement, calibration, firmware updates, and warranty support. Call 800.829.9580 to talk through your oxygen-deficiency monitoring program with someone who understands confined-space, inert-atmosphere, and cryogenic operations — not a call-center script.

PK Safety also handles BW/Honeywell (Factory Authorized), RKI, and RAE Systems monitors under the same roof, so a mixed-brand fleet doesn't mean shipping to multiple service centers.

Not sure the SST1-O is the right monitor for your oxygen-deficiency exposure program? Call PK Safety at 800.829.9580. A person who knows silent-hypoxia work environments and the WatchGas SST platform will pick up.
