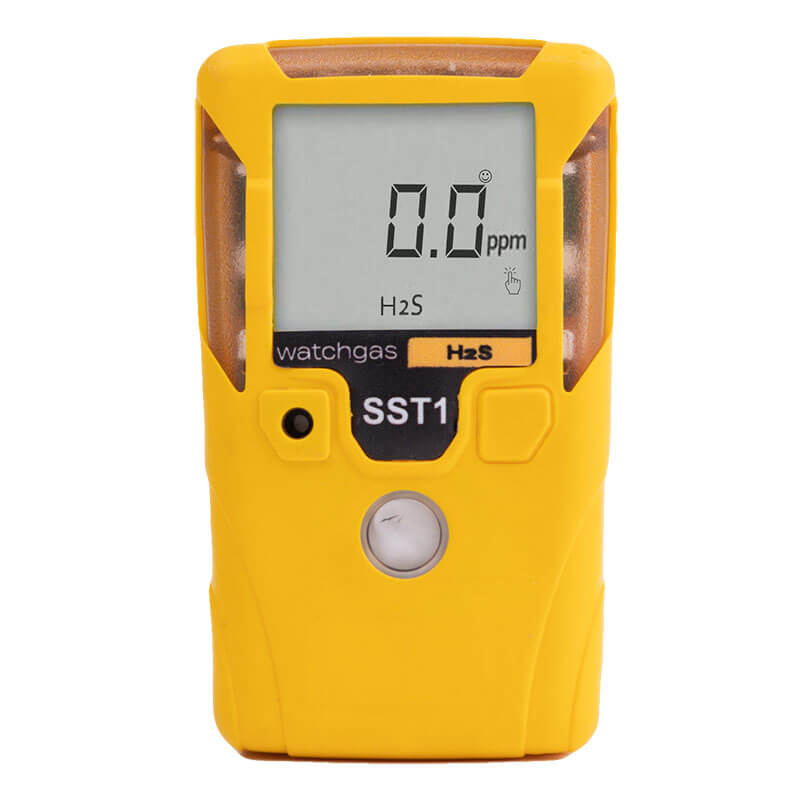

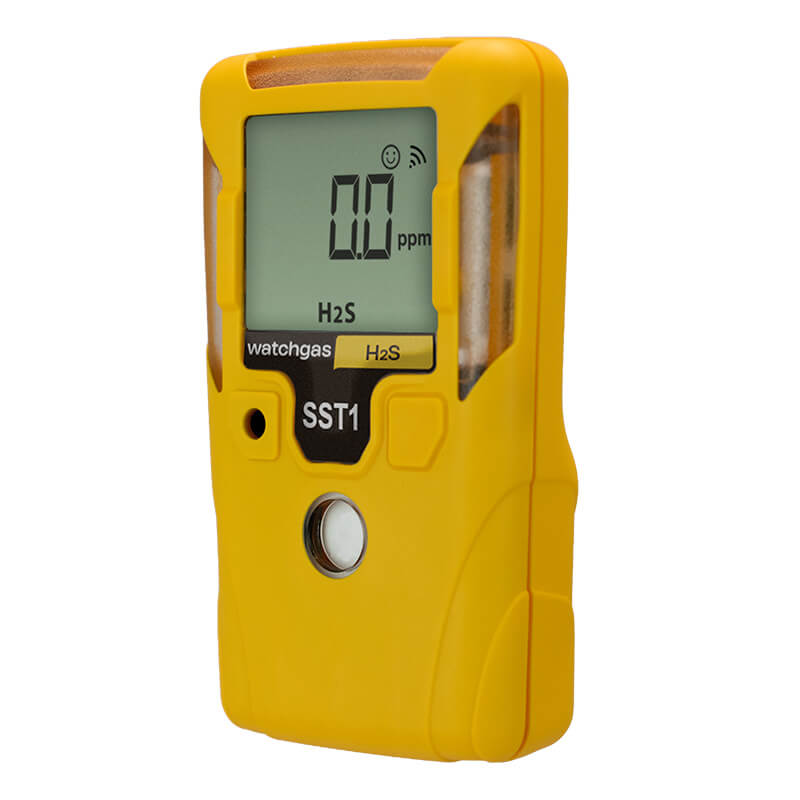

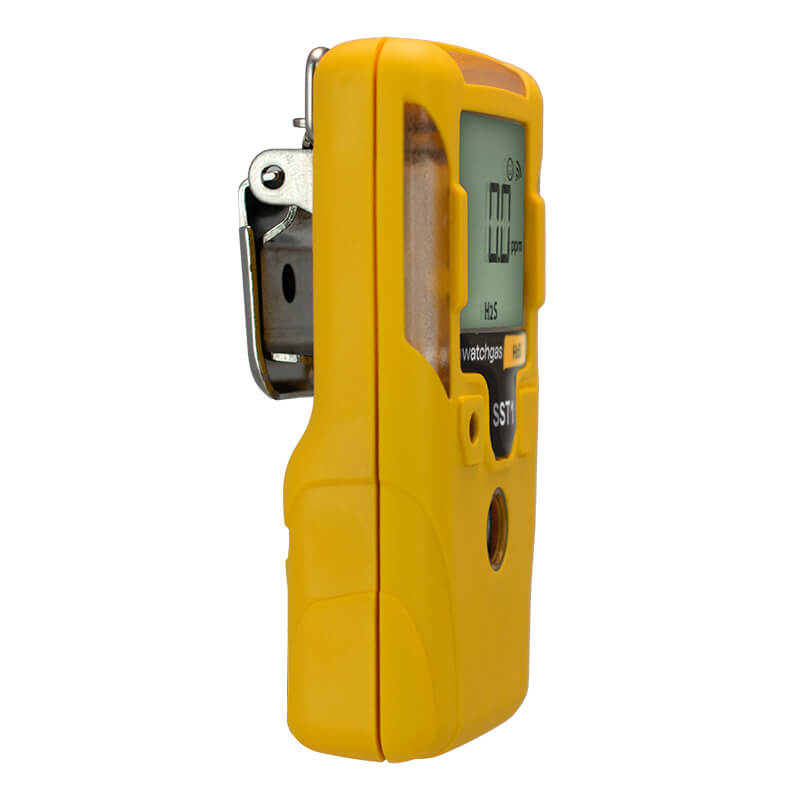

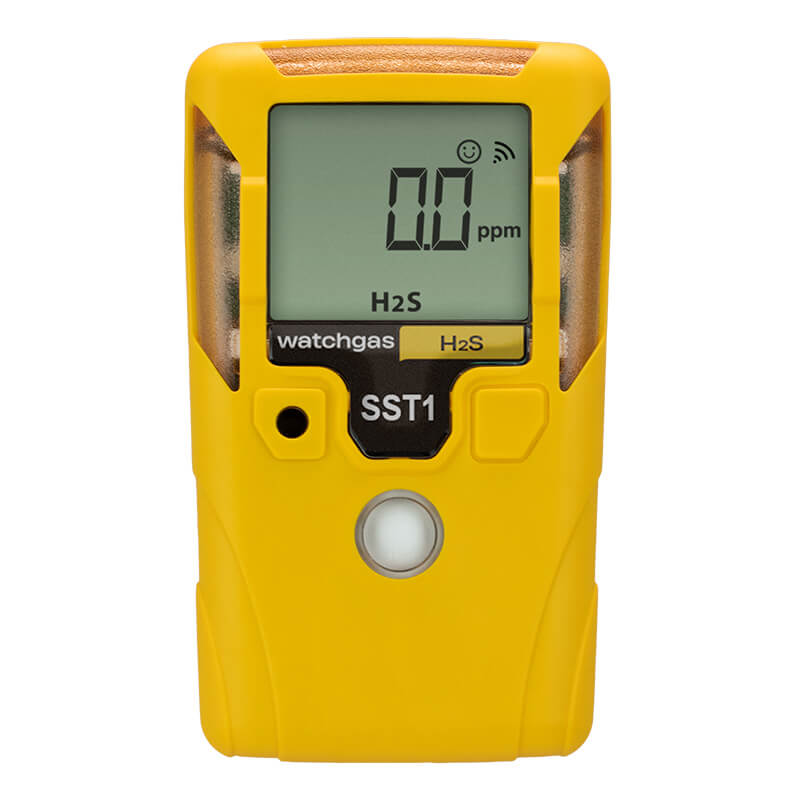

WatchGas SST1 Serviceable H2S Gas Detector SST1-H
Description
Hydrogen sulfide is what makes gas detection non-optional. Rotten-egg smell at 1 ppm. Olfactory paralysis at 100 ppm — right where the atmosphere is classified immediately dangerous to life and health.
In sour service, wastewater treatment, pulp mills, confined livestock operations, and landfill work, workers cannot rely on their sense of smell to keep them alive. H2S has the exact wrong safety profile: obvious at concentrations that can't hurt anyone, undetectable to the nose at concentrations that can cause unconsciousness within one breath.
The WatchGas SST1-H reads H2S continuously in parts per million, from below OSHA's 20 ppm ceiling through the IDLH threshold at 100 ppm and above.
Configurable low, high, TWA, and STEL alarms fire well below regulatory limits — with vibration, audible, and visual signals that reach a worker even when their nose no longer can. Single-button operation means the alarm can be acknowledged with gloves on. Under 29 CFR 1910.146 permit-required confined-space entries and 29 CFR 1910.134 respiratory protection programs, continuous H2S monitoring is either explicitly required or standard best practice.
Why the freshness question matters more on H2S than on any other single-gas instrument:
H2S sensors have a definite service life — typically 2 years — after which responsiveness slowly falls. A drift-affected sensor still shows readings, but those readings may not trigger the alarm at the concentration where the alarm was set. Fleet-safety programs that assume a 3-year-old H2S monitor is still calibrated to spec are one bad bump-test cycle away from missing an alarm in the field.
The WatchGas SST1 platform is designed to be serviced: the H2S sensor cell is replaceable, the battery is replaceable, and PK Safety handles both in-house. When the sensor reaches end-of-life, send the unit in for a fresh sensor — the instrument stays in service, not scrapped and re-bought.
Why safety managers standardize on the SST1-H:
- Continuous H2S monitoring across the 0–500 ppm range with configurable low, high, TWA, and STEL alarms
- Serviceable sensor cell — replace at end-of-life instead of scrapping the whole monitor
- Serviceable battery — 3-year replaceable
- 3-year instrument warranty; 2-year sensor warranty
- Solid polymer sensor technology — more stable than legacy H2S sensor designs
- NFC configuration and WatchGas App for phone-based setup
- Vibration, audible, and visual alarms — you notice it in a noisy pump station or drilling floor
- Compatible with the
WatchGas SST-DOCK for automated bump test, calibration, and datalogged compliance workflow
- Datalogging for compliance audits — OSHA 29 CFR 1910.146 permit-required confined space, and internal exposure programs
PK Safety services the full WatchGas SST line with factory-trained technicians in-house. We also handle BW/Honeywell (Factory Authorized), RKI, and RAE Systems monitors — one shop for a mixed fleet. If the H2S sensor drifts or reaches end-of-life, send the unit to us for replacement — you're not shipping equipment into a black box. Call us at
800.829.9580 to talk through your H2S monitoring setup with someone who understands sour-service work and the WatchGas SST platform.
This is right for you if:
- You work sour-service oil & gas (upstream production streams with dissolved H2S, downstream refining with residual H2S in process gas)
- You're in wastewater treatment (H2S from anaerobic decomposition — 20+ ppm at grit chambers, wet wells, and headworks is common)
- You work in pulp and paper (kraft process H2S emissions in digester, recovery boiler, and pulp storage areas)
- You do confined livestock operations (poultry barns, manure pits — seasonal H2S peaks during agitation)
- You work landfill operations (H2S from anaerobic decomposition of organic waste)
- You do site maintenance, turnaround, or shutdown work in refineries or chemical plants where residual H2S may remain after lock-out
- You need audit-ready H2S exposure logs for OSHA recordkeeping under 29 CFR 1910.146
Technical documents:
Brochure
Specification Sheet
Manual
Firmware Download
Part Number: WG01-SST1-H — H2S 0–500 ppm Serviceable, Real Time Display (Hydrogen Sulfide)
Frequently Asked Questions
What is the OSHA exposure limit for hydrogen sulfide?
OSHA sets a 20 ppm ceiling for hydrogen sulfide under 29 CFR 1910.1000 Table Z-2 — meaning workers should never be exposed above 20 ppm at any instant. This is a CEILING limit, not an 8-hour time-weighted average, which is different from most toxic-gas standards. Table Z-2 also permits a single acceptable maximum peak concentration of 50 ppm for up to 10 minutes if no other measurable exposure occurs, but the 20 ppm ceiling is the operational number for most exposure programs.
NIOSH's recommended exposure limit is stricter at 10 ppm as a 10-minute ceiling. At 100 ppm, the atmosphere is classified immediately dangerous to life and health (NIOSH IDLH). The SST1-H's configurable alarms can be tuned to the OSHA ceiling, the NIOSH REL, or a stricter internal standard.
Why is olfactory paralysis a specific concern with H2S?
Hydrogen sulfide has a very distinctive rotten-egg smell at low concentrations — most workers can detect it easily at 0.13 ppm, well below any exposure limit. The problem is that at concentrations at or above 100 ppm — coincident with the NIOSH IDLH threshold — the olfactory nerves become paralyzed within seconds. Workers stop smelling the gas exactly when it reaches lethal concentrations.
This physiological quirk is why H2S monitoring is not optional in sour-service environments. Relying on the sense of smell would misinform workers at the most dangerous concentrations. A continuous reading in ppm from the SST1-H shows the actual concentration regardless of nose adaptation.
What does "serviceable" mean on the SST1-H?
Traditional single-gas H2S monitors are single-use — when the sensor reaches end-of-life (typically 2 years), the whole unit gets scrapped and replaced. The SST1 platform is designed to be serviced: the H2S sensor cell is replaceable, and the battery is also replaceable (3-year rating). PK Safety services the WatchGas SST line in-house — send the unit in when the sensor or battery needs replacement.
The freshness argument is especially important on H2S monitors because a drift-affected sensor still displays readings, but those readings may not trigger the alarm at the concentration where the alarm was set. Replacing the sensor cell restores full responsiveness without buying a new instrument.
How often should I bump test and calibrate the SST1-H?
Bump test before every use — a quick check with a known H2S concentration that confirms the sensor responds and the alarm fires. Calibration is a longer procedure that adjusts sensor readings against a certified gas concentration standard. Manufacturer recommendation for the SST1 platform is calibration every six months at minimum.
Sour-service and wastewater operators frequently calibrate more often — quarterly, or after any alarm event — because H2S sensors drift faster in environments with continuous H2S exposure. The
WatchGas SST-DOCK automates both bump test and calibration in about 60 seconds per unit and produces the compliance logs OSHA auditors expect under 29 CFR 1910.146 recordkeeping requirements.
Does the SST1-H work with the WatchGas SST-DOCK docking station?
Yes. The SST1-H is fully compatible with the
WatchGas SST-DOCK Touchscreen docking station for bump testing, calibration, and datalogging. If you're running a fleet of SST1 monitors (SST1-H for H2S, SST1-M for CO, SST1-O for O2, and other gas variants), the SST-DOCK handles them all interchangeably and generates timestamped logs suitable for OSHA audits.
The bump test plus calibration workflow takes about 60 seconds per unit — fast enough to run a fleet through end-of-shift without slowing crew turnover.
How does PK Safety support the SST1-H after purchase?
PK Safety carries the full WatchGas SST line and services the SST1-H with factory-trained technicians in-house. That covers sensor replacement, battery replacement, calibration, firmware updates, and warranty support. Call
800.829.9580 to talk through your H2S monitoring setup with someone who understands sour-service and confined-space work and the WatchGas SST platform — not a call-center script.
PK Safety also handles BW/Honeywell (Factory Authorized), RKI, and RAE Systems monitors under the same roof, so a mixed-brand fleet doesn't mean shipping to multiple service centers.
Not sure the SST1-H is the right monitor for your H2S exposure program? Call PK Safety at 800.829.9580. A person who knows sour-service work and the WatchGas SST platform will pick up.
