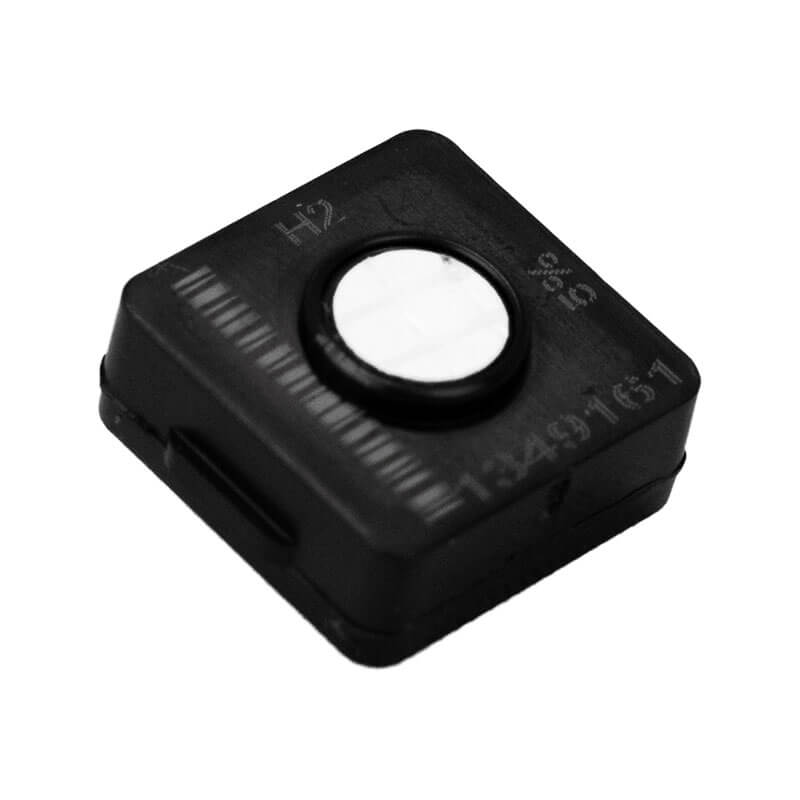

WatchGas SST1 Replacement H2 High Sensor SST-H2HR-RPL

When your H2 sensor drifts, you don't replace the whole monitor. You swap the sensor cell.

That's the operational advantage of the serviceable WatchGas SST1 line. Traditional single-gas monitors are single-use — when the sensor reaches end-of-life or a bump test reveals unrecoverable drift, the whole unit gets discarded. The SST1 platform is designed to be maintained: this WatchGas Replacement H2 High Range Sensor drops into the WatchGas SST1-H2 Serviceable H2 Gas Detector configured for high-range hydrogen monitoring, extending the monitor's service life beyond the original sensor's lifespan.

This is the High Range variant of the WatchGas H2 sensor. It detects hydrogen across 0–20,000 ppm — that's 0–2% by volume in air, or up to 50% of the Lower Explosive Limit. Standard low-range H2 sensors saturate in environments with continuous H2 generation or ambient H2 concentrations above ~500 ppm. This sensor gives you accurate readings across the full ppm-through-percent detection window without over-ranging — the right choice for battery charging rooms with continuous H2 evolution, hydrogen fuel cell test stands, hydrogen production facilities, and refinery hydrogen recovery units.

Hydrogen isn't a toxic exposure hazard. It's a fire and explosion hazard. Colorless, odorless, and lighter than air — hydrogen accumulates near ceilings, vents, and enclosed high points where workers can't smell or see it. Its flammable range in air runs from 4% (the Lower Explosive Limit) all the way to 75% — one of the widest flammable ranges of any industrial gas. Sensor drift on H2 doesn't mean a missed exposure event; it means the monitor may not alarm before the atmosphere reaches an ignitable concentration. For continuous-H2 environments, sensor accuracy across the full percent-level detection range is a fire-prevention input.

What this sensor is (and isn't):

• It IS a factory replacement High Range H2 electrochemical sensor cell (0–20,000 ppm detection window) for the serviceable SST1-H2 monitor configured for high-range hydrogen monitoring, and WatchGas SST4-series multi-gas monitors custom-configured with an H2 High Range sensor slot.
• It is DIFFERENT from the standard SST-H2-RPL, which is a low-range H2 sensor for typical leak-detection applications. The standard sensor saturates well before this High Range sensor's ceiling. Use this sensor for continuous-H2 environments; use the standard sensor for intermittent-leak-detection environments.
• It is NOT the same as an LEL sensor. Catalytic bead LEL sensors in SST4-family monitors detect hydrogen as one combustible gas among many but report readings as % LEL of a calibrated gas (typically methane) — not as a specific H2 concentration.
• It is NOT a standalone gas detection device. The sensor cell requires a compatible WatchGas SST monitor to function.
• The WatchGas SST1 line does NOT include Limited-Life alert-only monitors for hydrogen — so there's no non-serviceable variant to exclude from compatibility.

Solid polymer electrochemical sensor technology. The dry-cell design eliminates the liquid electrolyte used in traditional electrochemical sensors, giving the cell better long-term stability, no leak risk in truck-bed or field storage, and better tolerance for temperature extremes. Ultra-low power consumption compared to older H2 sensor designs.

When to replace an H2 High Range sensor cell:

• The sensor fails a bump test and won't recover on recalibration
• Calibration drift exceeds acceptable tolerance across successive cal events
• The monitor displays a sensor fault code specific to the H2 channel
• The sensor's warranty period (2 years) has elapsed and calibration reliability starts trending down
• You're rotating a fleet's sensor generation on a proactive maintenance cadence — especially valuable in continuous-H2 environments where sensor drift silently defeats percent-level accuracy

Who buys the SST-H2HR-RPL:

• Battery manufacturing operations and industrial-scale battery charging rooms (continuous H2 evolution requires percent-level detection)
• Hydrogen fuel cell manufacturers running test stands at operating pressures (H2 concentrations can reach percent levels during testing)
• Hydrogen production facilities (electrolysis plants, steam methane reforming, hydrogen recovery units)
• Petroleum refining hydrogen recovery and hydrotreating operators (where H2 is a process gas at percent-level concentrations)
• Semiconductor fabrication CVD chambers using H2 as a process gas
• Aerospace propellant handling facilities (H2 as rocket propellant)
• Metallurgy operations with H2-rich annealing atmospheres
• Nuclear power plants monitoring H2 buildup in containment vessels post-accident
• Hydrogen-fueled vehicle refueling stations (where refueling operations can produce brief high-concentration exposures)

Sensor specifications:

Gas	Range	Sensor technology	Warranty	Compatible monitors
H2 (hydrogen, High Range)	0–20,000 ppm (0–2% / 0–50% LEL)	Solid polymer electrochemical (dry-cell)	2 years	SST1-H2 (high-range configuration), SST4-series (with H-HR sensor slot)

Key features:

• High accuracy across the 0–20,000 ppm detection range — no saturation in continuous-H2 environments
• 2-year sensor warranty
• Ultra-low power consumption (optimized for battery-operated and IoT-integrated monitors)
• Direct linearity across the extended detection range
• No zero drift
• Silicone-resistant (no poisoning by common industrial silicone contaminants)
• High temperature range tolerance

PK Safety services the full WatchGas SST line with factory-trained technicians in-house. If you'd rather send the monitor to us for sensor replacement than swap the cell yourself, we handle that in-house — full swap, calibration verification against a certified high-range H2 standard, and return-to-service. We also service BW/Honeywell (Factory Authorized Service Center), RKI, and RAE Systems monitors — one shop for a mixed-brand fleet's sensor lifecycle. Call us at 800.829.9580 to talk through your continuous-hydrogen monitoring workflow with someone who understands the SST platform.

Part Number: WG01-SST-H2HR-RPL — WatchGas Replacement H2 High Range Sensor, 0–20,000 ppm (2-year warranty)

Frequently Asked Questions

What's the difference between the SST-H2HR-RPL and the standard SST-H2-RPL?

Detection range. Both sensors detect hydrogen using the same solid polymer electrochemical technology, both carry 2-year warranties, and both cost the same ($275). What differs is how much H2 they can measure without saturating:

• SST-H2-RPL (standard, low-range): designed for typical H2 leak detection at low ppm concentrations. Alarms well below the 4% LEL threshold. Right for intermittent-H2 environments where the goal is early leak warning.
• SST-H2HR-RPL (this sensor, High Range): designed for continuous-H2 environments where the atmosphere routinely contains meaningful H2 concentrations. 0–20,000 ppm detection range (0–2% H2, or 0–50% LEL). Provides percent-level accuracy where the low-range sensor would saturate.

Not sure which you need? If your monitor is deployed in a battery charging room, fuel cell test stand, hydrogen production or recovery facility, or any environment where H2 is a continuous process gas, this High Range sensor is likely the right choice. If your monitor is a general leak-detection instrument, the standard SST-H2-RPL is the right choice. Call PK Safety at 800.829.9580 to walk through your application.

Which WatchGas monitors is the SST-H2HR-RPL sensor compatible with?

The SST-H2HR-RPL is compatible with:

• WatchGas SST1-H2 Serviceable H2 Gas Detector configured for high-range hydrogen monitoring — the SST1-H2 monitor accepts either the standard-range or high-range H2 sensor, but the configuration must match the sensor's range
• WatchGas SST4-series multi-gas monitors only when custom-configured with a dedicated H2 High Range sensor slot

If you're unsure whether your SST1-H2 monitor is configured for standard or high-range H2 detection, call PK Safety at 800.829.9580 with your monitor's serial number — we can look up the configuration from the WatchGas manufacturing record.

Why is hydrogen monitored for fire and explosion instead of toxicity?

Hydrogen isn't a toxic exposure hazard. It has no OSHA PEL or NIOSH REL because it's not toxic at concentrations workers would encounter. Monitoring is for flammable-atmosphere detection:

• Flammable range: 4–75% in air — one of the widest of any industrial gas
• Minimum ignition energy: 0.019 mJ — extremely low; static-electricity discharge from clothing can be enough
• Autoignition: ~1,076°F (580°C) — hot surfaces (steam pipes, motors, heaters) can serve as ignition sources without a spark

H2 monitors alarm well below the 4% LEL threshold — typically 10–25% of LEL (0.4–1% H2 / 4,000–10,000 ppm) — to give crews time to evacuate and ventilate before the atmosphere becomes ignitable. NFPA 55, NFPA 2, and NFPA 505 (industrial battery charging rooms) govern hydrogen safety in various industrial contexts.

How do I know it's time to replace my H2 High Range sensor?

Four common signals:

1. The sensor fails a bump test and won't recover after recalibration.
2. Calibration drift exceeds acceptable tolerance across successive cal events, especially at the high end of the detection range where accuracy matters most for percent-level monitoring.
3. The monitor displays a sensor fault code specific to the H2 channel.
4. The sensor is out of its 2-year warranty period. Proactive replacement is standard operating discipline for continuous-H2 environments.

Can I install the SST-H2HR-RPL myself?

Yes — the SST1 platform is designed for user sensor replacement. After installation, complete a full calibration using a certified H2 High Range calibration gas. High-range H2 cal gas (typically 1% or 2% H2 in nitrogen balance) is a specialty item and requires special handling because 2% H2 sits at 50% of LEL — it's not flammable in the cylinder (nitrogen balance) but becomes an ignition concern if released to a confined space with air.

If you don't have a high-range H2 cal workflow set up, sending the monitor to PK Safety for the swap and calibration verification is the safer path. We stock the appropriate cal gas.

Should I replace the sensor or buy a new SST1-H2 monitor?

The SST-H2HR-RPL sensor cell costs $275. A full new SST1-H2 monitor costs $420. Sensor swap saves $145 — about 65% of the full-monitor price for the maintenance action.

The sensor replacement is the more cost-effective path when your monitor's housing, display, battery, and electronics are in good working order. Full-monitor replacement is a better fit when the monitor itself is aging, has physical damage, or has a battery no longer holding charge. Call PK Safety at 800.829.9580 with your monitor's condition.

Not sure whether your SST1-H2 is configured for standard or high-range H2, or which sensor variant to order? Call PK Safety at 800.829.9580. A person who knows hydrogen monitoring and the SST platform will pick up.
