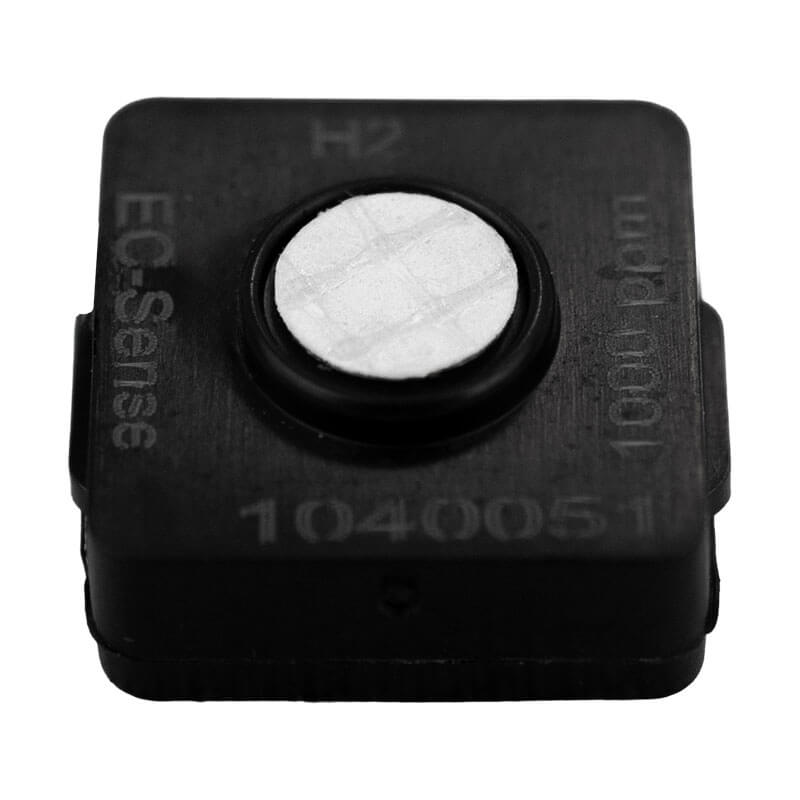

WatchGas SST1 Replacement H2 Sensor SST-H2-RPL
Description
When your H2 sensor drifts, you don't replace the whole monitor. You swap the sensor cell.
That's the operational advantage of the serviceable WatchGas SST1 line. Traditional single-gas monitors are single-use — when the sensor reaches end-of-life or a bump test reveals unrecoverable drift, the whole unit gets discarded. The SST1 platform is designed to be maintained: this WatchGas Replacement H2 Sensor drops into the
WatchGas SST1-H2 Serviceable H2 Gas Detector, extending the monitor's service life beyond the original sensor's lifespan.
Hydrogen isn't a toxic exposure hazard. It's a fire and explosion hazard. Colorless, odorless, and lighter than air — hydrogen accumulates near ceilings, vents, and enclosed high points where workers can't smell or see it. Its flammable range in air runs from 4% (the Lower Explosive Limit) all the way to 75% — one of the widest flammable ranges of any industrial gas. Sensor drift on H2 doesn't mean a missed exposure event; it means the monitor may not alarm before the atmosphere reaches an ignitable concentration. For hydrogen monitoring, sensor accuracy is a fire-prevention input.
What this sensor is (and isn't):
-
It IS a factory replacement H2 electrochemical sensor cell for the serviceable SST1-H2 monitor and WatchGas SST4-series multi-gas monitors
custom-configured with a dedicated H2 sensor slot. This is a specialty configuration — SST4 monitors ordered with the standard 4-gas set (LEL/O2/CO/H2S) don't have a dedicated H2 slot.
-
It is NOT the same as an LEL sensor. Catalytic bead LEL sensors in SST4-family monitors detect hydrogen as one combustible gas among many, but report readings as % LEL of a calibrated gas (typically methane) — not as a specific H2 concentration. If you need dedicated H2 monitoring with a direct concentration readout, that requires the SST1-H2 monitor with this dedicated H2 sensor.
-
It is NOT a standalone gas detection device. The sensor cell requires a compatible WatchGas SST monitor to function.
- The WatchGas SST1 line does NOT include Limited-Life (2-year or 3-year alert-only) monitors for hydrogen — so, unlike H2S/CO/O2 replacement sensors, there's no non-serviceable variant to exclude from the compatibility list.
Solid polymer electrochemical sensor technology. The dry-cell design eliminates the liquid electrolyte used in traditional electrochemical sensors, giving the cell better long-term stability, no leak risk in truck-bed or field storage, and better tolerance for temperature extremes. Ultra-low power consumption compared to older H2 sensor designs.
When to replace an H2 sensor cell:
- The sensor fails a bump test and won't recover on recalibration
- Calibration drift exceeds acceptable tolerance across successive cal events
- The monitor displays a sensor fault code specific to the H2 channel
- The sensor's warranty period (2 years) has elapsed and calibration reliability starts trending down
- You're rotating a fleet's sensor generation on a proactive maintenance cadence — especially valuable in continuous-hydrogen environments (battery charging rooms, fuel cell facilities, refinery hydrogen recovery units) where sensor drift can silently defeat leak detection
Who buys the SST-H2-RPL:
- Owners of the WatchGas SST1-H2 serviceable H2 monitor whose current sensor has drifted, failed a bump, or reached end-of-warranty
- Battery manufacturing operations and battery-charging rooms (lead-acid batteries release H2 during charging — warehouse charging areas require continuous H2 monitoring per NFPA 505 for industrial trucks)
- Hydrogen fuel cell manufacturers, testers, and R&D facilities
- Chemical processing plants using H2 as a reagent (ammonia synthesis, methanol production, hydrocracking)
- Semiconductor fabrication facilities using H2 as a carrier or reducing gas
- Metallurgy operations with H2 annealing atmospheres or sintering
- Aerospace propellant handling facilities
- Petroleum refineries with hydrogen recovery, hydrotreating, or hydrocracking units
- Nuclear power plants monitoring H2 buildup in containment vessels
- Emerging hydrogen economy operators — hydrogen-fueled vehicle refueling stations, hydrogen production and storage facilities, hydrogen pipeline infrastructure
Sensor specifications:
Gas
Sensor technology
Warranty
Compatible monitors
H2 (hydrogen)
Solid polymer electrochemical (dry-cell)
2 years
SST1-H2, SST4-series (with dedicated H2 sensor slot)
Key features:
- High accuracy across the H2 detection range
- 2-year sensor warranty
- Ultra-low power consumption (optimized for battery-operated and IoT-integrated monitors)
- High precision at low H2 concentrations — critical for early leak detection well before the 4% LEL threshold
- No zero drift
- Silicone-resistant (no poisoning by common industrial silicone contaminants)
- Direct linearity across the detection range
- High temperature range tolerance
PK Safety services the full WatchGas SST line with factory-trained technicians in-house. If you'd rather send the monitor to us for sensor replacement than swap the cell yourself, we handle that in-house — full swap, calibration verification against a certified H2 standard, and return-to-service. We also service BW/Honeywell (Factory Authorized Service Center), RKI, and RAE Systems monitors — one shop for a mixed-brand fleet's sensor lifecycle. Call us at
800.829.9580 to talk through your hydrogen monitoring workflow with someone who understands the SST platform and industrial H2 detection.
Technical documents (WatchGas SST1):
SST1 Brochure
Part Number: WG01-SST-H2-RPL — WatchGas Replacement H2 (Hydrogen) Sensor (2-year warranty)
Frequently Asked Questions
Which WatchGas monitors is the SST-H2-RPL sensor compatible with?
The SST-H2-RPL is compatible with:
-
SST1-H2 Serviceable H2 Gas Detector — the single-gas hydrogen monitor is designed around this sensor
- WatchGas SST4-series multi-gas monitors
only when custom-configured with a dedicated H2 sensor slot (not the standard LEL/O2/CO/H2S configuration)
Not sure which configuration your SST4 has? Call PK Safety at 800.829.9580 with your monitor's serial number — we can look up the sensor set from the WatchGas manufacturing record.
The WatchGas SST1 catalog does not include Limited-Life (2-year or 3-year alert-only) monitors for hydrogen, so there's no non-serviceable H2 variant to exclude from compatibility.
Why is hydrogen monitored differently from toxic gases like H2S or CO?
Hydrogen isn't a toxic exposure hazard — it's a fire and explosion hazard. That changes what the monitor is protecting against:
-
No OSHA PEL. Hydrogen has no permissible exposure limit under OSHA regulations because it's not toxic at concentrations workers would encounter. OSHA's concern is fire and explosion, not chronic exposure.
-
Flammable range: 4–75%. Hydrogen's Lower Explosive Limit (LEL) is 4% by volume in air (40,000 ppm) — the concentration at which an ignition source can start a flame. Its Upper Explosive Limit (UEL) is 75% — one of the widest flammable ranges of any industrial gas.
-
Ignition energy: 0.019 mJ. Hydrogen requires extremely little energy to ignite — a static-electricity discharge from clothing can be enough. That's why monitoring is critical wherever H2 may accumulate.
-
Autoignition: ~1,076°F (580°C). At that temperature, H2 ignites without any external spark. Hot surfaces in industrial environments (steam pipes, heaters, motors) can serve as ignition sources.
H2 monitors are set to alarm well below the 4% LEL threshold — typically at 10%–25% of LEL (0.4%–1% H2 in air) for a low-level alarm, giving crews time to evacuate and ventilate before the atmosphere reaches ignitable concentration.
How do I know it's time to replace my H2 sensor?
Four common signals:
-
The sensor fails a bump test and won't recover after recalibration.
-
Calibration drift exceeds acceptable tolerance across successive cal events.
-
The monitor displays a sensor fault code specific to the H2 channel. Cell exhaustion, extreme temperature or humidity exposure, or physical damage can trigger a fault.
-
The sensor is out of its warranty period. The SST-H2-RPL carries a 2-year warranty. Beyond that, sensor reliability trends down — for hydrogen monitoring in continuous-H2 environments, proactive replacement at warranty end is standard operating discipline.
Can I install the SST-H2-RPL myself, or do I need to send the monitor to PK Safety?
Both paths work. The SST1 platform is designed for user sensor replacement — the sensor cell is accessed through the monitor's service compartment, and the WatchGas SST1 manual walks through the swap procedure. After installation, you'll need to complete a full calibration to verify the new sensor's response against a known H2 standard (typically 2.5% H2 in air or nitrogen balance).
Hydrogen calibration gas requires special handling and storage — it's flammable at cal concentrations if released to a confined space. If you don't have a hydrogen cal workflow set up, sending the monitor to PK Safety for the swap and calibration verification is often the safer path. We stock the appropriate cal gas and can verify the sensor's response in our shop before returning the monitor to service.
Should I replace the sensor or buy a new SST1-H2 monitor?
The SST-H2-RPL sensor cell costs $275. A full new
SST1-H2 monitor costs $420. Sensor swap saves $145 — about 65% of the full-monitor price for the maintenance action.
The sensor replacement is the more cost-effective path when your monitor's housing, display, battery, and electronics are in good working order. Full-monitor replacement is a better fit when the monitor itself is aging, has physical damage, or has a battery no longer holding charge — and a full new monitor also comes with the 3-year instrument warranty on the electronics.
Call PK Safety at 800.829.9580 with your monitor's condition and we'll walk you through the choice.
What alarm setpoints should I configure on my SST1-H2?
Industry standard for hydrogen monitoring is to alarm well below the 4% LEL threshold, giving crews time to evacuate and ventilate before the atmosphere reaches ignitable concentration:
-
Low alarm: typically 10% of LEL (0.4% H2 in air / 4,000 ppm). An operational "start ventilating and investigate the source" threshold.
-
High alarm: typically 20–25% of LEL (0.8–1% H2 in air / 8,000–10,000 ppm). An "evacuate and shut off source" threshold.
Setpoints vary by application: battery charging rooms may run stricter (5% LEL low, 10% high) because of continuous H2 generation and the shift-worker context; refinery hydrogen recovery areas may run different setpoints per site-specific risk assessment. NFPA 55, NFPA 2, and site-specific insurance/permit requirements should drive the final configuration.
PK Safety can help you calibrate setpoints to your facility's risk profile — call 800.829.9580.
Not sure whether your SST4 has a dedicated H2 sensor slot, or how to set alarm thresholds for your hydrogen monitoring application? Call PK Safety at 800.829.9580. A person who knows hydrogen monitoring and the SST platform will pick up.
