Stewart R. Browne Ground Clamp, REB2960
Description

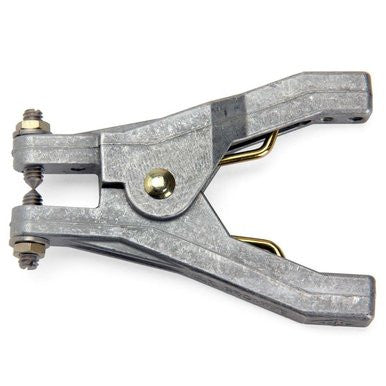

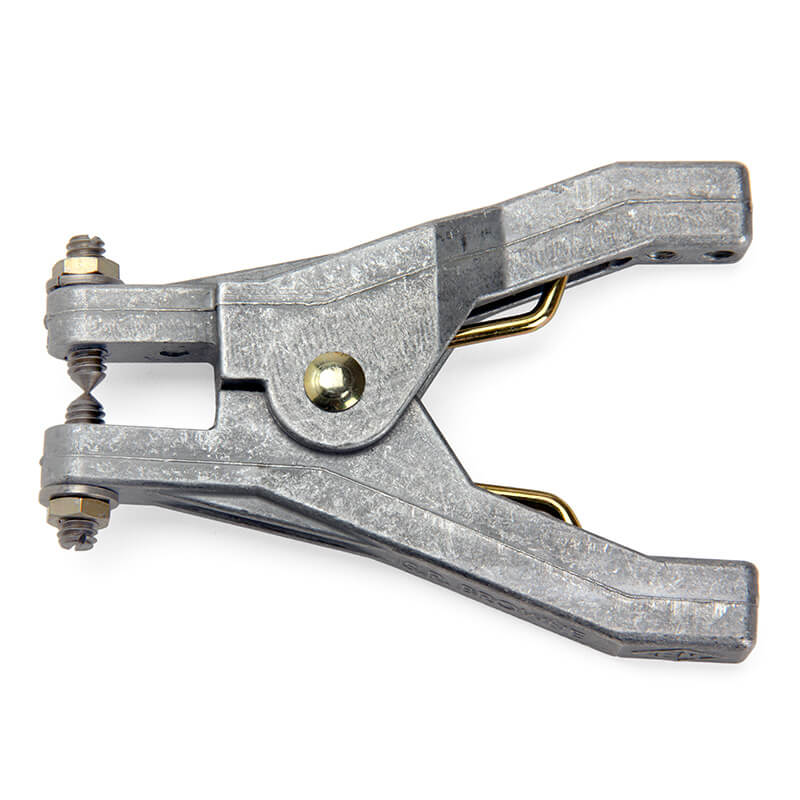

The REB2960 Grounding Clamp from Stewart R. Browne is a popular and versatile product.
Heavy duty die-cast aluminum handles with 2 stainless steel points are the basis of these grounding pliers. This design allows the clamp to get through multiple layers of paint or corrosion build-up so that proper contact is made to bare metal.
This is quite different from the
ALS10A Aircraft Grounding Clamp with non-marring plated steel jaws. The stainless steel contacts are machined to a sharp point. They are replaceable, but may also be re-sharpened by resourceful maintenance folks.
Other design details include a plated steel spring that provides approximately 55 pounds of closing force.

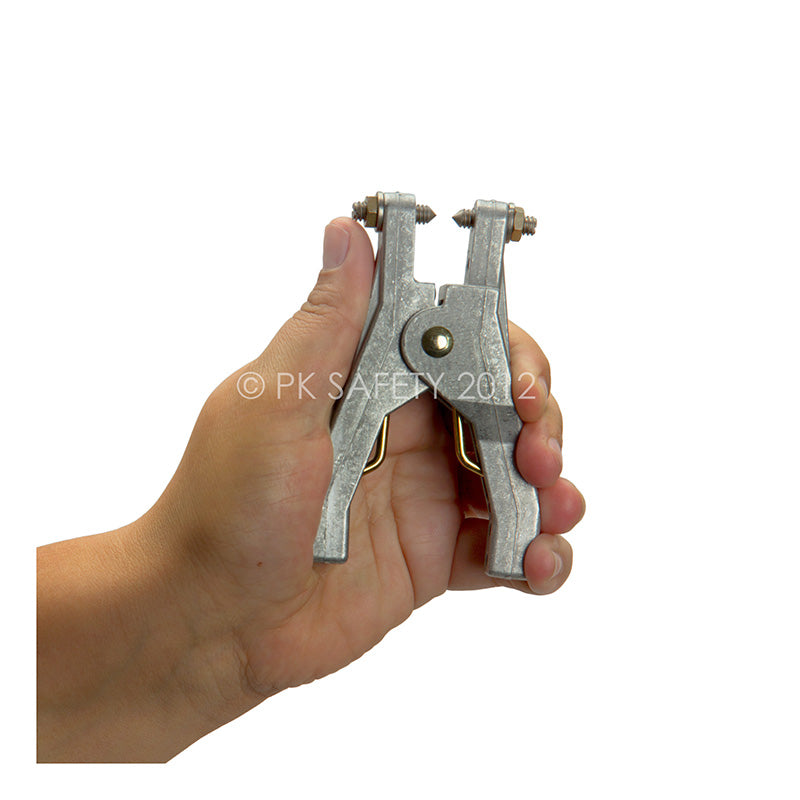

Squeezing this ground clamp to open it will put you in mind of a Charles Atlas exercise device.
The grounding wire or cable is accepted on one leg of the pliers. 2 Allen set-screws secure the conductor in place.
The opening is .185 inches in diameter, and accommodates up to 5-AWG wire.
The REB2960 ground clamp has a wide variety of uses, including when transferring flammable liquids between containers or other maintenance operations where static generated sparks could cause a problem.
This product carries FM (Factory Mutual) approval, with the FM logo cast onto the handles.
Made in U.S.A.
Dimensions:
- Weight: 4.9 oz.
- Length: 4.3 in.
- Width: 3.25 in.
- Thickness: 3/4 in. (including rivet pivot)
- Max Jaw Opening: Approx 1 1/4 in. (points backed out)
Part Number:
REB2960
