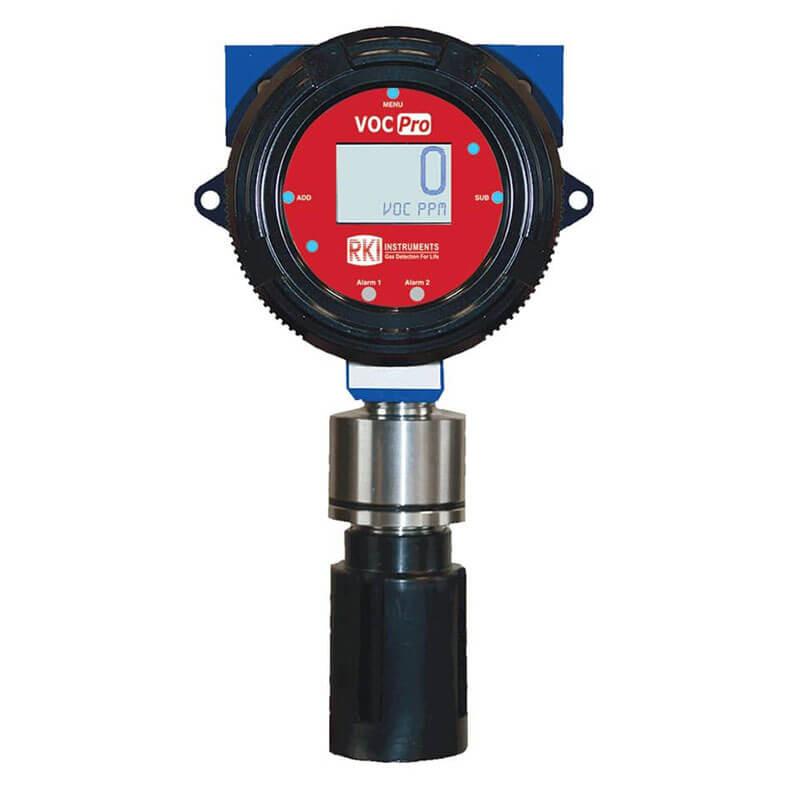

RKI VOC Pro (10.6 eV PID) High Range Sensor/Transmitter
Description
The RKI VOC Pro Series (10.6 eV PID) High Range Sensor/Transmitter with junction box is a 3-wire explosion-proof VOC gas detector using a photoionization detector (PID) sensor to detect a broad spectrum of volatile organic compounds. Standard outputs include a 4-20 mA analog signal and RS-485 Modbus, making integration with RKI Beacon controllers and most DCS/PLC systems straightforward. Non-intrusive magnetic calibration switches allow full field calibration and diagnostics without opening the enclosure.
For help choosing the correct range or configuration, contact Customer Service at
800.829.9580.
Compatible RKI Beacon controllers:
Beacon 110,
Beacon 200,
Beacon 410A,
Beacon 800.
Applications: Petrochemical plants, Refineries, Water & wastewater treatment plants, Pulp & paper mills, Manufacturing facilities, Automotive, Semiconductor plants, Chemical plants
Key Features:
- 10.6 eV PID sensor — detects a wide range of VOCs
- Three measuring ranges: 0–100 ppm, 0–500 ppm, 0–2,000 ppm
- 3-wire wired power: 12 to 35 VDC operating voltage
- Operating temperature: -40°C to +54°C
- Graphical LCD with LED backlight
- 3-button interface (ADD, MENU, SUB) with corresponding non-intrusive magnetic switches
- 2 individually configurable alarm levels
- 2 front-panel LED indicators (amber and red)
- 2 optional fully programmable alarm relays (dry contacts)
- Output options: 4-20 mA (3-wire) analog; RS-485 Modbus (4-wire)
- Explosion-proof construction
- 1-year warranty (see specifications for details)
Part Numbers:
66-6193-10 — 0–100 ppm
66-6193-50 — 0–500 ppm
66-6193-2K — 0–2,000 ppm
Specification Sheet:
Manual:
Frequently Asked Questions
What types of gases does the RKI VOC Pro with 10.6 eV PID sensor detect?
A 10.6 eV photoionization lamp can ionize most common VOCs, including benzene, toluene, xylene, styrene, methylene chloride, and many other organic solvents and hydrocarbons. Compounds with ionization potential above 10.6 eV (such as methane and ethane) are not detectable by PID. For specific compound detection verification, consult the VOC Pro specification sheet or contact our team at
800.829.9580.
How do I select the correct measuring range (100, 500, or 2,000 ppm)?
Range selection depends on the VOC concentrations expected at your facility. The 0–100 ppm range (66-6193-10) is suited for ambient monitoring where concentrations are expected to remain low. The 0–500 ppm range (66-6193-50) covers moderate-risk areas. The 0–2,000 ppm range (66-6193-2K) is appropriate for process areas or environments with higher potential VOC releases. Our technical team can help you choose — call
800.829.9580.
How is the VOC Pro calibrated in the field?
The VOC Pro uses non-intrusive magnetic switches (ADD, MENU, SUB) for calibration and full system diagnostics without opening the explosion-proof enclosure — an important safety advantage in classified locations. Calibration is performed with a certified isobutylene reference gas at a known concentration. Contact PK Safety at
800.829.9580 for appropriate calibration gas.
Can the VOC Pro connect to a DCS or PLC instead of an RKI controller?
Yes. The VOC Pro outputs a standard 4-20 mA analog signal (3-wire) and an RS-485 Modbus signal (4-wire), both of which are natively compatible with most DCS and PLC systems. While it is optimized to work with RKI Beacon controllers, the open output architecture means it integrates into virtually any industrial automation or safety system that accepts these standard signal types.
What service and calibration support does PK Safety provide for the VOC Pro?
PK Safety is an RKI Factory Authorized Service Center. We can assist with VOC Pro sensor configuration, calibration gas procurement, and ongoing maintenance planning. PID lamps require periodic replacement depending on operating conditions — our team can advise on replacement intervals. Call
800.829.9580 for VOC Pro service support.
