RKI SDM-04 Calibration Station 81-SDM04-10_
Description

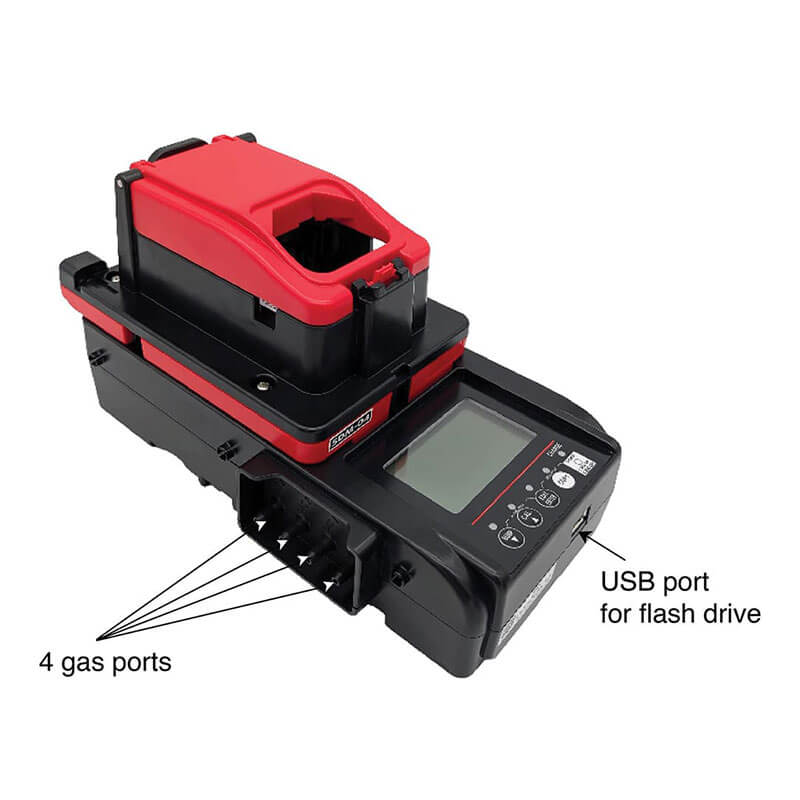

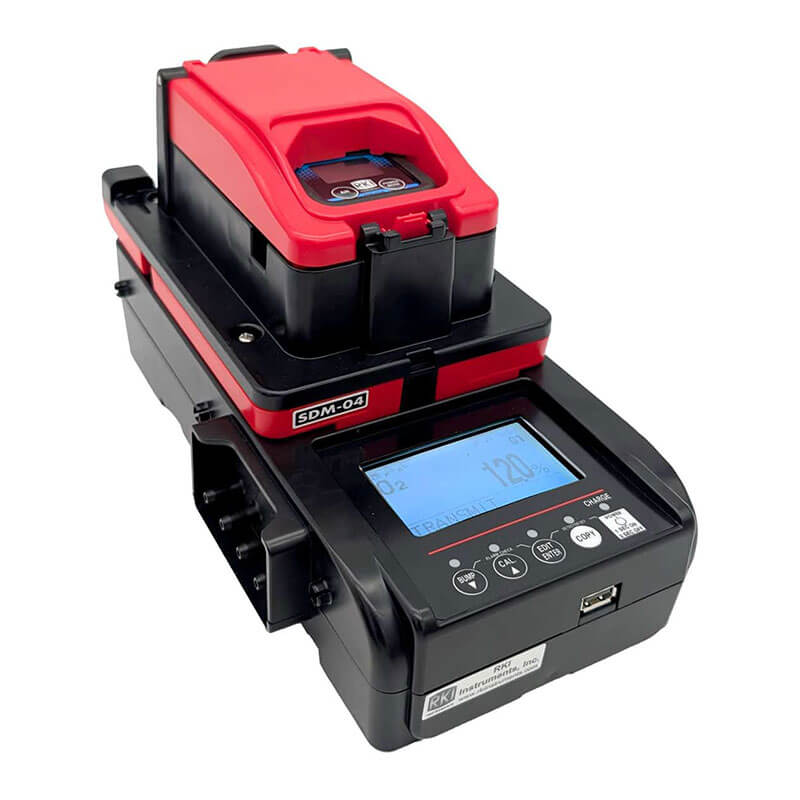

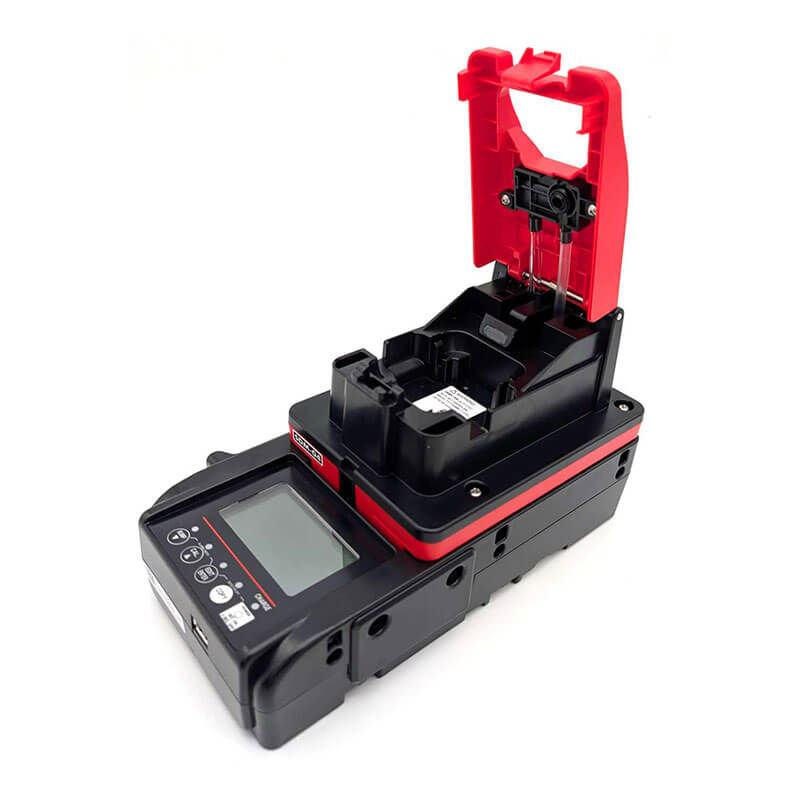

The RKI SDM-04 Calibration Station automates calibration and bump testing for RKI 04 Series portable gas monitors (CO-04,
HS-04,
OX-04). Every test is logged automatically, and all records transfer to a PC via the included USB flash drive and software for compliance documentation.

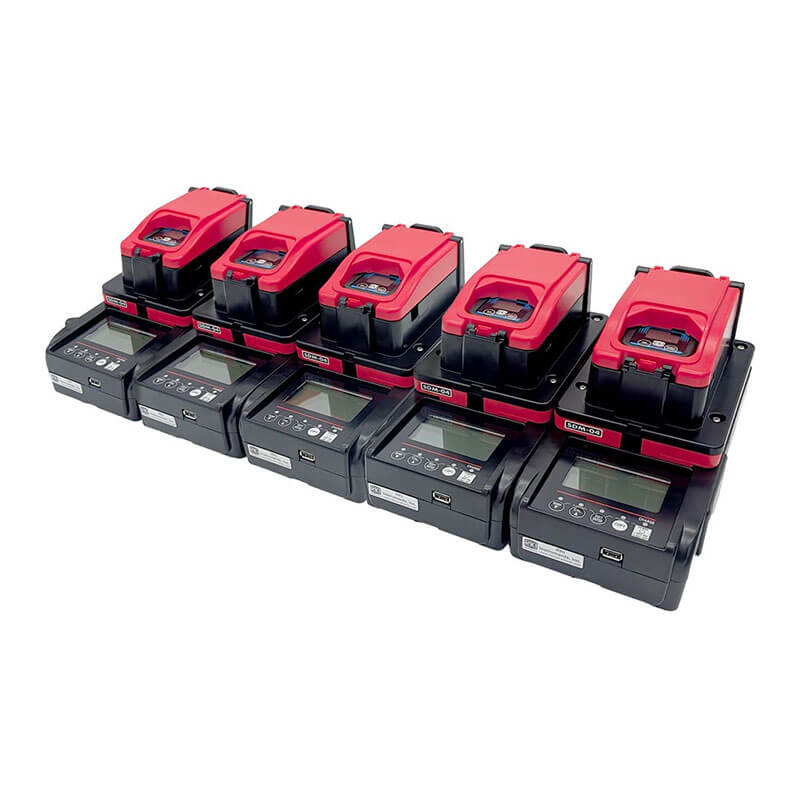

The SDM-04 supports up to 10 docking stations connected simultaneously to one PC via USB, and accommodates 1-3 calibration gas cylinders per station.
Key Features:
- Automates calibration, bump testing, and alarm checks for 04 Series monitors
- Automatic test record logging; up to 500 records on-board
- Records copy to USB flash drive for PC archiving and compliance reporting
- Includes PC software for viewing and archiving test records
- Up to 10 stations networked to one PC simultaneously
- Accommodates 1-3 calibration gas cylinders per station
- Configure 04 Series instrument settings via PC software
Specifications:
- Main unit input: 5.2 VDC
- Accessory AC adapter input: 100-240 VAC
- Operating temperature: 0-40 degrees C (no sudden fluctuations)
- Memory capacity: Up to 500 bump tests, calibrations, or alarm checks
- Compatible instruments: CO-04, HS-04, OX-04
Standard Accessories Included: Air filter, AC adapter, exhaust tubing, USB flash drive, USB-A to USB-B cable, LAN cable
Note: Configurations that include
Calibration Gas ship via UPS Ground due to HazMat restrictions and are not available for expedited shipping.
Calibration Gas is not returnable. Please check your selection carefully before ordering.
Specification Sheet:
User Guide:
SDM-04 Software:
SDM-04 Manual:
Part Numbers:
81-SDM04-101 - Standard Accessories
81-SDM04-102 - Standard Accessories + Demand Flow Regulator
81-SDM04-103 - + DFR + Cylinder Holder + 34L CO in N2 (Ground Only)
81-SDM04-104 - + DFR + Cylinder Holder + 34L N2 (Ground Only)
81-SDM04-105 - + DFR + Cylinder Holder + 34L H2S in N2 (Ground Only)
Frequently Asked Questions
Which RKI gas monitors does the SDM-04 calibration station support?
The SDM-04 is designed for the RKI 04 Series portable monitors: the
CO-04,
HS-04, and
OX-04. For SC-04 Series toxic monitors (NH3, HCN, NO2, PH3, SO2), see the
SDM-04SC (Toxics) station.
What maintenance functions does the SDM-04 automate?
The SDM-04 automates calibration, bump testing, and alarm checks. Every test is logged automatically with up to 500 records stored on-board. Records copy to a PC via the included USB flash drive and software for compliance archiving, eliminating manual logbook entry for 04 Series monitor fleets.
How many SDM-04 stations can be connected to one PC at once?
Up to 10 SDM-04 stations connect simultaneously to one PC via USB cables, enabling centralized fleet calibration and bump-test management from a single workstation. All records feed into the PC software database for consolidated reporting.
How many calibration gas cylinders does the SDM-04 support?
Each SDM-04 station accommodates 1-3 calibration gas cylinder connections simultaneously. Bundle configurations (81-SDM04-102 through -105) include a demand flow regulator and cylinder holder with a 34L calibration gas cylinder (CO in N2, N2 zero air, or H2S in N2). Bundles with calibration gas cylinders are ground-shipment only due to HazMat regulations.
How do I order the right SDM-04 configuration from PK Safety?
PK Safety offers the SDM-04 in five configurations, from standard accessories only (81-SDM04-101) to complete kits with regulator, holder, and calibration gas. Call
800.829.9580 for help selecting the variant that matches your 04 Series monitor fleet and gas-cylinder requirements.
Related Searches
Gas Detection Docking Stations,
Gas DetectionCalibration Gas
Read more
