RKI M-Series Low Cost CO Sensor Transmitter 65-2434RK
Description

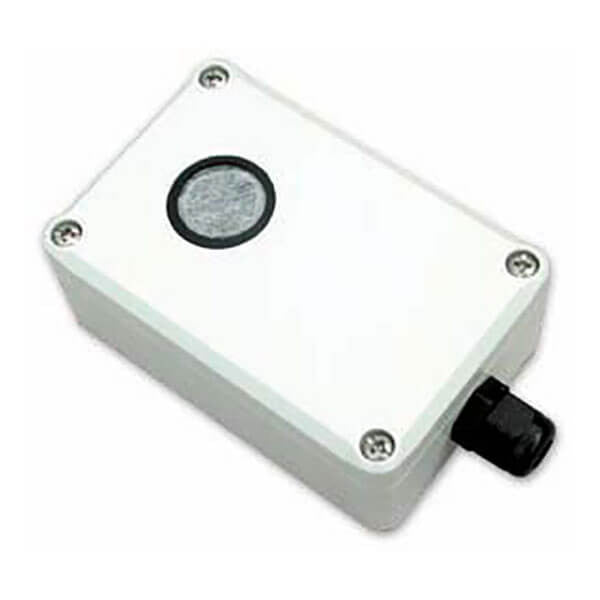

The RKI M-Series CO Sensor/Transmitter (65-2434RK) is a cost-effective 4-20 mA fixed-point transmitter for Carbon Monoxide detection in parking garages, loading docks, manufacturing facilities, and utility operations. The water- and dust-resistant plastic enclosure protects the electronics against mechanical abuse and corrosion. Sensors are long-life electrochemical type rated 2+ years under normal service.
Please call Customer Service at 800.829.9580 if you have questions in choosing the correct product.
Operates from 24 VDC (11-30 VDC input range) and outputs a standard 4-20 mA signal compatible with the RKI Beacon 110, Beacon 200, Beacon 410, or Beacon 800 controllers and most PLCs and DCS systems.
Applications: Parking garages, Loading docks, Water & wastewater treatment plants, Pulp & paper mills, Gas and electric utilities, Manufacturing facilities
Key Features:
- Carbon Monoxide (CO) detection; 4-20 mA output
- Water- and dust-resistant housing
- Long-life CO sensors: 2+ years typical
- Single-person field calibration with voltmeter, screwdriver, and cal gas
- Compact design; competitively priced
- Made in the USA
Specification Sheet:
Manual:
Part Number:
65-2434RK
Frequently Asked Questions
What is the RKI M-Series CO transmitter used for?
The M-Series CO (65-2434RK) provides reliable 4-20 mA CO detection for fixed-point monitoring in parking garages, loading docks, manufacturing facilities, water and wastewater treatment plants, and utilities. Its compact, sealed housing is suitable for both indoor and semi-enclosed outdoor installations.
What power supply does the M-Series CO require?
The M-Series CO operates from 24 VDC with an input range of 11-30 VDC. Its 4-20 mA output connects to the RKI Beacon 110, Beacon 200, Beacon 410, or Beacon 800 controllers and to most PLCs and DCS systems that accept standard analog input.
Can the M-Series CO be calibrated in the field by one person?
Yes. Calibration requires only a voltmeter, a screwdriver, and CO calibration gas. Zero and span are adjusted via potentiometers on the amplifier board, and test jacks accept a voltmeter to monitor the 100-500 mV sensor response during the span procedure. The entire process can be completed quickly by a single technician.
How long do M-Series CO sensors last?
CO sensors in the M-Series are rated for a typical service life of 2 to 3 years under normal operating conditions. Replacement sensors are stocked at PK Safety for scheduled preventive maintenance.
Does PK Safety service the M-Series CO transmitter?
Yes. As an RKI Factory Authorized Service Center, PK Safety provides calibration, sensor replacement, and technical support for the M-Series CO. Call 800.829.9580 to order calibration gas, replacement sensors, or schedule service.
Related Searches
Fixed Gas Detectors, Gas Detection
Read more
Description
The RKI M-Series CO Sensor/Transmitter (65-2434RK) is a cost-effective 4-20 mA fixed-point transmitter for Carbon Monoxide detection in parking garages, loading docks, manufacturing facilities, and utility operations. The water- and dust-resistant plastic enclosure protects the electronics against mechanical abuse and corrosion. Sensors are long-life electrochemical type rated 2+ years under normal service.
Please call Customer Service at 800.829.9580 if you have questions in choosing the correct product.
Operates from 24 VDC (11-30 VDC input range) and outputs a standard 4-20 mA signal compatible with the RKI Beacon 110, Beacon 200, Beacon 410, or Beacon 800 controllers and most PLCs and DCS systems.
Applications: Parking garages, Loading docks, Water & wastewater treatment plants, Pulp & paper mills, Gas and electric utilities, Manufacturing facilities
Key Features:
- Carbon Monoxide (CO) detection; 4-20 mA output
- Water- and dust-resistant housing
- Long-life CO sensors: 2+ years typical
- Single-person field calibration with voltmeter, screwdriver, and cal gas
- Compact design; competitively priced
- Made in the USA
Specification Sheet:
Manual:
Part Number:
65-2434RK
Frequently Asked Questions
What is the RKI M-Series CO transmitter used for?
The M-Series CO (65-2434RK) provides reliable 4-20 mA CO detection for fixed-point monitoring in parking garages, loading docks, manufacturing facilities, water and wastewater treatment plants, and utilities. Its compact, sealed housing is suitable for both indoor and semi-enclosed outdoor installations.
What power supply does the M-Series CO require?
The M-Series CO operates from 24 VDC with an input range of 11-30 VDC. Its 4-20 mA output connects to the RKI Beacon 110, Beacon 200, Beacon 410, or Beacon 800 controllers and to most PLCs and DCS systems that accept standard analog input.
Can the M-Series CO be calibrated in the field by one person?
Yes. Calibration requires only a voltmeter, a screwdriver, and CO calibration gas. Zero and span are adjusted via potentiometers on the amplifier board, and test jacks accept a voltmeter to monitor the 100-500 mV sensor response during the span procedure. The entire process can be completed quickly by a single technician.
How long do M-Series CO sensors last?
CO sensors in the M-Series are rated for a typical service life of 2 to 3 years under normal operating conditions. Replacement sensors are stocked at PK Safety for scheduled preventive maintenance.
Does PK Safety service the M-Series CO transmitter?
Yes. As an RKI Factory Authorized Service Center, PK Safety provides calibration, sensor replacement, and technical support for the M-Series CO. Call 800.829.9580 to order calibration gas, replacement sensors, or schedule service.
Related Searches
Fixed Gas Detectors, Gas Detection
The RKI M-Series CO Sensor/Transmitter (65-2434RK) is a cost-effective 4-20 mA fixed-point transmitter for Carbon Monoxide detection in parking garages, loading docks, manufacturing facilities, and utility operations. The water- and dust-resistant plastic enclosure protects the electronics against mechanical abuse and corrosion. Sensors are long-life electrochemical type rated 2+ years under normal service.
Please call Customer Service at 800.829.9580 if you have questions in choosing the correct product.
Operates from 24 VDC (11-30 VDC input range) and outputs a standard 4-20 mA signal compatible with the RKI Beacon 110, Beacon 200, Beacon 410, or Beacon 800 controllers and most PLCs and DCS systems.
Applications: Parking garages, Loading docks, Water & wastewater treatment plants, Pulp & paper mills, Gas and electric utilities, Manufacturing facilities
Key Features:
- Carbon Monoxide (CO) detection; 4-20 mA output
- Water- and dust-resistant housing
- Long-life CO sensors: 2+ years typical
- Single-person field calibration with voltmeter, screwdriver, and cal gas
- Compact design; competitively priced
- Made in the USA
Specification Sheet:
Manual:
Part Number:
65-2434RK
Frequently Asked Questions
What is the RKI M-Series CO transmitter used for?
The M-Series CO (65-2434RK) provides reliable 4-20 mA CO detection for fixed-point monitoring in parking garages, loading docks, manufacturing facilities, water and wastewater treatment plants, and utilities. Its compact, sealed housing is suitable for both indoor and semi-enclosed outdoor installations.
What power supply does the M-Series CO require?
The M-Series CO operates from 24 VDC with an input range of 11-30 VDC. Its 4-20 mA output connects to the RKI Beacon 110, Beacon 200, Beacon 410, or Beacon 800 controllers and to most PLCs and DCS systems that accept standard analog input.
Can the M-Series CO be calibrated in the field by one person?
Yes. Calibration requires only a voltmeter, a screwdriver, and CO calibration gas. Zero and span are adjusted via potentiometers on the amplifier board, and test jacks accept a voltmeter to monitor the 100-500 mV sensor response during the span procedure. The entire process can be completed quickly by a single technician.
How long do M-Series CO sensors last?
CO sensors in the M-Series are rated for a typical service life of 2 to 3 years under normal operating conditions. Replacement sensors are stocked at PK Safety for scheduled preventive maintenance.
Does PK Safety service the M-Series CO transmitter?
Yes. As an RKI Factory Authorized Service Center, PK Safety provides calibration, sensor replacement, and technical support for the M-Series CO. Call 800.829.9580 to order calibration gas, replacement sensors, or schedule service.
Related Searches
Fixed Gas Detectors, Gas Detection
