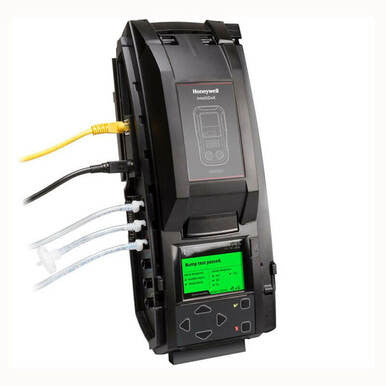

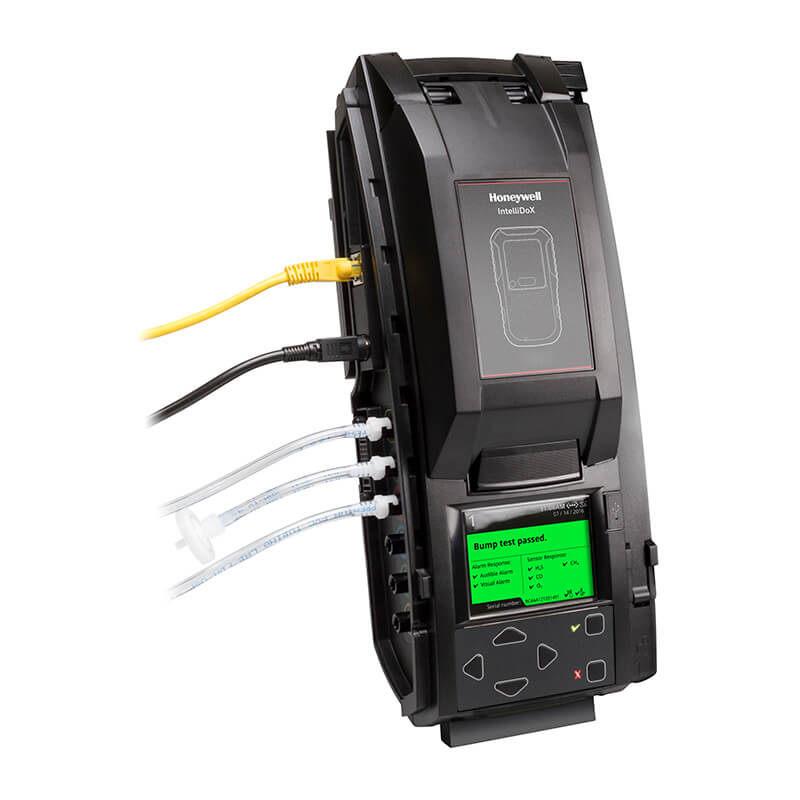

BW IntelliDoX for BW Flex DX-CP
Description
BW DX-CP IntelliDoX for Flex is a bump test and calibration station that combines smart docking modules to help drive productivity, reliability, and efficiency.
Place the detector in the docking module, and it automatically tests the gas detector and sensors while transferring data to the docking station.
Key Features:
- Easy set up with no tools required — combine up to 5 modules in just a few minutes
- Each docking system can support up to 5 Honeywell IntelliDoX modules
- Easy bi-directional data transfer — by Ethernet or USB
- Compatible with the Calibration Demand Flow Regulator
- Bump on insertion
- Bump on button press
- Calibrate on button press
- Reconfigure the detector
- Transfer logs to PC
- Fully compatible with Honeywell Safety Suite Device Cloud (SSDC)
Please Note: One BW IntelliDoX Enabler Kit DX-ENBL-NA is required to operate the IntelliDoX Docking Station.
Part Number:
DX-CP
PK Safety services BW Technologies by Honeywell gas monitors in-house with factory-trained technicians. For help selecting the right part or to schedule calibration and repair, call 800.829.9580 or contact us online.
Related Searches
Bw Technologies By Honeywell, Gas Detection Docking Stations, Gas Detection
Frequently Asked Questions
Which gas monitors work with the IntelliDoX DX-CP?
The DX-CP is designed for the Honeywell BW Flex4 %LEL(F) and BW Flex4 %LEL(IR) gas detectors. For GasAlert MicroClip XL and X3, use the DX-MCLP. For GasAlert Max XT II, use the DX-MAXXT. For BW Clip single-gas monitors, use the DX-CLIP.
Is the IntelliDoX Enabler Kit required for the DX-CP?
Yes. The BW IntelliDoX Enabler Kit DX-ENBL-NA is required to operate the DX-CP. It includes the power supply, AC cord, Ethernet cable, inlet filter assembly, calibration and purge tubing, exhaust tubing, quick connect fittings, and the inlet end plate. Order the DX-CP module and Enabler Kit together.
Can the DX-CP be expanded to manage larger BW Flex fleets?
Yes. Up to five DX-CP modules can be combined into a single docking system. Each module operates independently while sharing power, calibration gas, and network connection, enabling simultaneous bump testing and management of up to five BW Flex detectors per module (up to 25 total in a ganged configuration).
What bump testing modes does the DX-CP support?
The DX-CP supports automatic bump test on insertion, bump test on button press, and full calibration on button press. It also supports reconfiguration of alarm setpoints and other detector parameters, and bidirectional log transfer to PC via Ethernet or USB. All test results integrate with Honeywell Safety Suite Device Cloud (SSDC) for centralized fleet compliance management.
What calibration gas does the BW Flex4 use with the DX-CP?
The BW Flex4 (LEL, O2, H2S, CO configuration) uses a 4-gas calibration mix (CH4 50% LEL, H2S 25 ppm, CO 100 ppm, O2 18% vol.). Options available from PK Safety include the BW CG-Q34-4 (34L). Use a demand flow regulator for controlled gas delivery to the IntelliDoX. Calibration gas ships ground-only due to HazMat regulations (5-7 business days).
Can PK Safety help configure the DX-CP for my BW Flex fleet?
Yes. PK Safety is a BW Technologies / Honeywell Factory Authorized Service Center. We assist with IntelliDoX setup, calibration gas ordering, Safety Suite Device Cloud integration, and fleet compliance program design. Call 800.829.9580 for support or fleet pricing.
Read more
Description
BW DX-CP IntelliDoX for Flex is a bump test and calibration station that combines smart docking modules to help drive productivity, reliability, and efficiency.
Place the detector in the docking module, and it automatically tests the gas detector and sensors while transferring data to the docking station.
Key Features:
- Easy set up with no tools required — combine up to 5 modules in just a few minutes
- Each docking system can support up to 5 Honeywell IntelliDoX modules
- Easy bi-directional data transfer — by Ethernet or USB
- Compatible with the Calibration Demand Flow Regulator
- Bump on insertion
- Bump on button press
- Calibrate on button press
- Reconfigure the detector
- Transfer logs to PC
- Fully compatible with Honeywell Safety Suite Device Cloud (SSDC)
Please Note: One BW IntelliDoX Enabler Kit DX-ENBL-NA is required to operate the IntelliDoX Docking Station.
Part Number:
DX-CP
PK Safety services BW Technologies by Honeywell gas monitors in-house with factory-trained technicians. For help selecting the right part or to schedule calibration and repair, call 800.829.9580 or contact us online.
Related Searches
Bw Technologies By Honeywell, Gas Detection Docking Stations, Gas Detection
Frequently Asked Questions
Which gas monitors work with the IntelliDoX DX-CP?
The DX-CP is designed for the Honeywell BW Flex4 %LEL(F) and BW Flex4 %LEL(IR) gas detectors. For GasAlert MicroClip XL and X3, use the DX-MCLP. For GasAlert Max XT II, use the DX-MAXXT. For BW Clip single-gas monitors, use the DX-CLIP.
Is the IntelliDoX Enabler Kit required for the DX-CP?
Yes. The BW IntelliDoX Enabler Kit DX-ENBL-NA is required to operate the DX-CP. It includes the power supply, AC cord, Ethernet cable, inlet filter assembly, calibration and purge tubing, exhaust tubing, quick connect fittings, and the inlet end plate. Order the DX-CP module and Enabler Kit together.
Can the DX-CP be expanded to manage larger BW Flex fleets?
Yes. Up to five DX-CP modules can be combined into a single docking system. Each module operates independently while sharing power, calibration gas, and network connection, enabling simultaneous bump testing and management of up to five BW Flex detectors per module (up to 25 total in a ganged configuration).
What bump testing modes does the DX-CP support?
The DX-CP supports automatic bump test on insertion, bump test on button press, and full calibration on button press. It also supports reconfiguration of alarm setpoints and other detector parameters, and bidirectional log transfer to PC via Ethernet or USB. All test results integrate with Honeywell Safety Suite Device Cloud (SSDC) for centralized fleet compliance management.
What calibration gas does the BW Flex4 use with the DX-CP?
The BW Flex4 (LEL, O2, H2S, CO configuration) uses a 4-gas calibration mix (CH4 50% LEL, H2S 25 ppm, CO 100 ppm, O2 18% vol.). Options available from PK Safety include the BW CG-Q34-4 (34L). Use a demand flow regulator for controlled gas delivery to the IntelliDoX. Calibration gas ships ground-only due to HazMat regulations (5-7 business days).
Can PK Safety help configure the DX-CP for my BW Flex fleet?
Yes. PK Safety is a BW Technologies / Honeywell Factory Authorized Service Center. We assist with IntelliDoX setup, calibration gas ordering, Safety Suite Device Cloud integration, and fleet compliance program design. Call 800.829.9580 for support or fleet pricing.
BW DX-CP IntelliDoX for Flex is a bump test and calibration station that combines smart docking modules to help drive productivity, reliability, and efficiency.
Place the detector in the docking module, and it automatically tests the gas detector and sensors while transferring data to the docking station.
Key Features:
- Easy set up with no tools required — combine up to 5 modules in just a few minutes
- Each docking system can support up to 5 Honeywell IntelliDoX modules
- Easy bi-directional data transfer — by Ethernet or USB
- Compatible with the Calibration Demand Flow Regulator
- Bump on insertion
- Bump on button press
- Calibrate on button press
- Reconfigure the detector
- Transfer logs to PC
- Fully compatible with Honeywell Safety Suite Device Cloud (SSDC)
Please Note: One BW IntelliDoX Enabler Kit DX-ENBL-NA is required to operate the IntelliDoX Docking Station.
Part Number:
DX-CP
PK Safety services BW Technologies by Honeywell gas monitors in-house with factory-trained technicians. For help selecting the right part or to schedule calibration and repair, call 800.829.9580 or contact us online.
Related Searches
Bw Technologies By Honeywell, Gas Detection Docking Stations, Gas Detection
Frequently Asked Questions
Which gas monitors work with the IntelliDoX DX-CP?
The DX-CP is designed for the Honeywell BW Flex4 %LEL(F) and BW Flex4 %LEL(IR) gas detectors. For GasAlert MicroClip XL and X3, use the DX-MCLP. For GasAlert Max XT II, use the DX-MAXXT. For BW Clip single-gas monitors, use the DX-CLIP.
Is the IntelliDoX Enabler Kit required for the DX-CP?
Yes. The BW IntelliDoX Enabler Kit DX-ENBL-NA is required to operate the DX-CP. It includes the power supply, AC cord, Ethernet cable, inlet filter assembly, calibration and purge tubing, exhaust tubing, quick connect fittings, and the inlet end plate. Order the DX-CP module and Enabler Kit together.
Can the DX-CP be expanded to manage larger BW Flex fleets?
Yes. Up to five DX-CP modules can be combined into a single docking system. Each module operates independently while sharing power, calibration gas, and network connection, enabling simultaneous bump testing and management of up to five BW Flex detectors per module (up to 25 total in a ganged configuration).
What bump testing modes does the DX-CP support?
The DX-CP supports automatic bump test on insertion, bump test on button press, and full calibration on button press. It also supports reconfiguration of alarm setpoints and other detector parameters, and bidirectional log transfer to PC via Ethernet or USB. All test results integrate with Honeywell Safety Suite Device Cloud (SSDC) for centralized fleet compliance management.
What calibration gas does the BW Flex4 use with the DX-CP?
The BW Flex4 (LEL, O2, H2S, CO configuration) uses a 4-gas calibration mix (CH4 50% LEL, H2S 25 ppm, CO 100 ppm, O2 18% vol.). Options available from PK Safety include the BW CG-Q34-4 (34L). Use a demand flow regulator for controlled gas delivery to the IntelliDoX. Calibration gas ships ground-only due to HazMat regulations (5-7 business days).
Can PK Safety help configure the DX-CP for my BW Flex fleet?
Yes. PK Safety is a BW Technologies / Honeywell Factory Authorized Service Center. We assist with IntelliDoX setup, calibration gas ordering, Safety Suite Device Cloud integration, and fleet compliance program design. Call 800.829.9580 for support or fleet pricing.
