Confined spaces — tanks, vaults, sewers, manholes, silos, process vessels, pipelines — are the single most dangerous workspace most industrial crews ever enter. The hazards are overwhelmingly atmospheric, and OSHA regulates them tightly. If you're responsible for a job that puts a worker inside one, this guide walks through the gas-detection requirements under OSHA 29 CFR 1910.146 (Permit-Required Confined Spaces) and 29 CFR 1926 Subpart AA for construction — what to test, in what order, how often, with what kind of monitor, and how to keep that monitor in a condition OSHA will accept.
What OSHA Means by a "Permit-Required Confined Space"
A confined space, by OSHA's definition, is large enough for a worker to enter and perform work, has limited means of entry or exit, and is not designed for continuous occupancy. A permit-required confined space adds any one of four additional hazards: a hazardous atmosphere, an engulfment hazard, a configuration that could trap or asphyxiate a worker, or any other recognized serious safety or health hazard. The permit-required class is where gas-detection obligations become mandatory.
A written permit must be issued before any entry. Among other requirements, that permit lists the acceptable entry conditions, the atmospheric test results, the test instrument and the date of its last calibration, the entry supervisor, the attendant, and the rescue plan. Air monitoring data is not a formality on that permit — it is the specific evidence that entry conditions remain acceptable.
What a 4-Gas Monitor Actually Tests For
Most permit-required confined-space work uses a multi-gas monitor (commonly called a 4-gas monitor) that reads four atmospheres at once:
- Oxygen (O₂) — both deficiency and enrichment are hazards.
- Combustible gases / lower explosive limit (%LEL) — methane, propane, gasoline vapor, and similar flammables.
- Carbon monoxide (CO) — a byproduct of combustion and a frequent killer in enclosed work areas.
- Hydrogen sulfide (H₂S) — the characteristic hazard of sewage, oil and gas, pulp and paper, and anywhere organic matter decomposes.
Many sites specify additional sensors (volatile organics via a PID, ammonia, sulfur dioxide, chlorine) depending on the process. The RKI GX-3R and BW MicroClip XL are the two most common diffusion 4-gas monitors on our rigs; the pumped BW GasAlertMax XT II and RKI GX-3R with pump bundle are the typical choices when the standard requires pre-entry sampling from outside the space.
The Testing Order OSHA Mandates
29 CFR 1910.146(d)(5) requires atmospheric tests to be performed in a specific order, and your monitor must be capable of all of them:
- Oxygen first. Combustible-gas sensors in catalytic-bead monitors read inaccurately in oxygen-deficient atmospheres, so you need to confirm O₂ status before you can trust the LEL reading.
- Flammable gases and vapors second. Measured against the lower explosive limit of the specific gas.
- Toxic contaminants third. CO, H₂S, and any site-specific sensor channels (PID for volatile organics, specific toxic sensors for process-specific hazards).
The standard does not name specific numerical thresholds for every toxic; those come from the OSHA Permissible Exposure Limits (PELs) in 29 CFR 1910.1000 Table Z-1, with H₂S handled separately in Table Z-2 as a 20 ppm ceiling.
Acceptable Atmospheric Conditions for Entry
29 CFR 1910.146(b) defines a hazardous atmosphere using these benchmarks:
- Oxygen below 19.5% is classified as oxygen-deficient; oxygen above 23.5% is oxygen-enriched. Either condition is a hazardous atmosphere.
- Flammable gas or vapor at or above 10% of its lower explosive limit (LEL) is a hazardous atmosphere. 10% LEL is the OSHA-defined action threshold — it is not a safe exposure level, it is the point at which the atmosphere already counts as hazardous.
- Any airborne concentration above its OSHA PEL (or above the dose that could cause death, incapacitation, impaired escape, acute illness, or irritation) is a hazardous atmosphere.
Entry conditions must be documented on the permit, and the permit itself names the specific values that the entry supervisor and attendant will treat as acceptable for continued entry.
Pre-Entry Testing: Diffusion vs. Pumped Monitors
OSHA requires that the atmosphere be tested before a worker enters a permit-required confined space. If the space is deep, long, or configured in a way that keeps you from reaching the pre-entry sample location by hand, you need a pumped (sample-draw) monitor with a hose and probe long enough to reach the far end of the space from the entry point.
Diffusion monitors (the ones that read the air directly around the sensor head) are correct for continuous personal monitoring once you're inside. But they can't give you a pre-entry read on a space you haven't stepped into. Common sample-draw solutions on our rigs include the BW GasAlertMax XT II (internal pump), the RKI GX-3R with the RP-3R sample pump bundle, and the BW GasAlertMax XT II complete confined-space kit.
When a space is tall or stratified, test at every 4 feet of vertical distance — top, middle, and bottom — because gases layer by density. Methane and natural gas gather near the top; H₂S and heavier hydrocarbons settle to the bottom; carbon monoxide roughly mixes with air. Skipping zones is how workers die after a "clean" headspace reading.
Continuous Monitoring During Entry
Pre-entry testing is only the start. OSHA 29 CFR 1910.146(d)(5)(ii) requires the internal atmosphere of the space to be continuously or periodically tested as necessary to ensure that acceptable entry conditions are maintained. In practice, this means every entrant wears a personal monitor in their breathing zone for the entire time they're in the space, and the attendant watches readings in real time.
If atmospheric conditions change — a reading approaches the permit's alarm thresholds, the monitor goes into alarm, or anything else about the space becomes unknown — the entry is suspended, every entrant leaves, and no one re-enters until the conditions are brought back within acceptable limits and the permit is re-verified.
Calibration and Bump Testing: What OSHA Expects
OSHA's position on calibration is spelled out in the Safety and Health Information Bulletin (SHIB) 09-30-13, "Verification of Calibration for Direct-Reading Portable Gas Monitors." The short version:
- Perform a bump test (functional test) on every monitor before each day's use — expose the sensors to a known-concentration gas and confirm the alarms activate.
- Perform a full calibration at the interval specified by the manufacturer (typically every 6 months at minimum, sooner if the daily bump test fails or if the monitor has been exposed to sensor-fouling atmospheres).
- Document both. The permit asks for the date of last calibration; the daily bump record lives in the gas-detection program file.
Any monitor that fails a bump test is removed from service until a full calibration or sensor replacement restores it. PK Safety is a Factory Authorized Service Center for BW Technologies by Honeywell, RAE Systems, and RKI Instruments. Feel free to call into our service department if you're currently on the job, or have a critical need.
The Attendant and the Rescue Plan
Every permit entry requires an attendant stationed outside the space, maintaining continuous contact with entrants, watching the atmospheric readings, and empowered to order evacuation without approval. The attendant does not enter the space to perform a rescue — that is a non-entry (retrieval) rescue role in most permit entries, and a trained entry-rescue team otherwise. 29 CFR 1910.146(k) lays out the rescue and emergency services requirements in detail.
A rescue plan isn't optional and isn't a formality. OSHA citation data from confined-space fatalities consistently shows a pattern where would-be rescuers die alongside the original victim because the plan on the permit was theoretical rather than operational.
Training Requirements
29 CFR 1910.146(g) requires that every employee whose work is covered by the standard receive training before being assigned duties, before there's a change in assigned duties, whenever there's a change in operations that creates a new hazard, and whenever the employer has reason to believe an entrant's performance shows a deficiency in understanding. Training must give employees the understanding, knowledge, and skills to perform their duties safely — monitor manufacturers (RKI Instruments, BW Technologies by Honeywell, RAE Systems) all publish training materials, and PK Safety's team at 800.829.9580 can help you build a program sized to your crew.

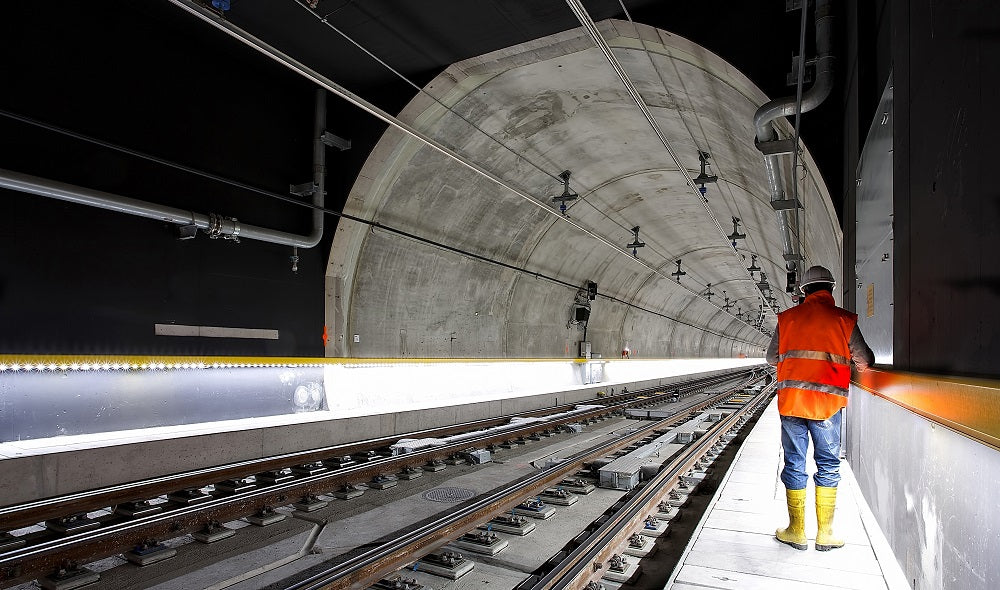

Photo credit: chitsanupong from Pexels via Canva.com.
Frequently Asked Questions
What does OSHA require for gas testing in permit-required confined spaces?
OSHA 29 CFR 1910.146(d)(5) requires that the atmosphere of a permit-required confined space be tested with a calibrated direct-reading instrument before entry and continuously (or periodically as necessary) during entry. Testing must be performed in a specific order: oxygen first, flammable gases and vapors second, and toxic contaminants third. The results, the test instrument used, and its last calibration date must be documented on the entry permit.
In what order must atmospheric tests be performed?
Oxygen first, flammable gases and vapors second, toxic contaminants third. The order is mandated by 29 CFR 1910.146(d)(5)(i). Catalytic-bead combustible-gas sensors need adequate oxygen (approximately 10% O₂ or higher) to read accurately, which is why oxygen is confirmed before the LEL reading can be trusted. Toxic contaminants come last because they typically require entry-specific sensor channels based on the hazards named on the permit.
What are the acceptable atmospheric conditions for confined space entry under OSHA?
29 CFR 1910.146(b) defines a hazardous atmosphere using three thresholds. Oxygen must be at or above 19.5% and at or below 23.5% — below 19.5% is oxygen-deficient, above 23.5% is oxygen-enriched, and both are classified as hazardous. Flammable gas or vapor at or above 10% of its lower explosive limit (LEL) is a hazardous atmosphere; 10% LEL is the OSHA action threshold, not a safe exposure level. Any airborne contaminant at or above its OSHA Permissible Exposure Limit is also hazardous. The specific acceptable values for an individual entry are written on the permit.
Do I need a pumped (sample-draw) monitor or is a diffusion monitor enough?
Both have a role. Pre-entry testing of a permit-required confined space generally requires a pumped (sample-draw) monitor so you can pull a sample from the far end of the space, including at multiple vertical heights, without entering it. Once a worker is inside, a diffusion monitor worn in the breathing zone is appropriate for continuous personal monitoring. Many crews carry a pumped monitor on the attendant's station for the pre-entry survey and periodic re-checks, and give each entrant a diffusion monitor on their person.
How often must the atmosphere be re-tested during a confined space entry?
29 CFR 1910.146(d)(5)(ii) requires the atmosphere to be tested continuously or periodically as necessary to ensure that acceptable entry conditions are maintained for the duration of the entry. In practice, "continuous" is the standard for most entries — each entrant wears a personal monitor in their breathing zone for the full time they are in the space, and the attendant watches readings in real time. The specific re-test cadence belongs on the permit and should reflect the stability of the space and the hazards named during the pre-entry evaluation.
What does OSHA require for gas monitor calibration and bump testing?
OSHA's expectations are set out in SHIB 09-30-13 ("Verification of Calibration for Direct-Reading Portable Gas Monitors"). A functional (bump) test — exposing the monitor to a known-concentration gas and confirming the alarms activate — must be performed before each day's use. A full calibration must be performed at the manufacturer's recommended interval (typically a minimum of every six months, sooner if the monitor fails a bump test or has been exposed to sensor-fouling atmospheres). Both records are kept in the gas-detection program file; the permit asks for the date of last calibration.
Building a Compliant Gas-Detection Program
If you're building or auditing a confined-space gas-detection program, the three pieces to get right are the monitor (correct sensor set, bump-tested daily, calibrated on schedule), the procedure (pre-entry sampling with the correct instrument for the space, continuous monitoring during entry, documented on the permit), and the people (trained entrants, trained attendant, written rescue plan). PK Safety has supported industrial safety programs since 1947 and is the top-ranked RKI Instruments distributor for the second consecutive year. Call 800.829.9580 or visit pksafety.com/pages/contact-us to talk through your program with a specialist.
