RKI Instruments

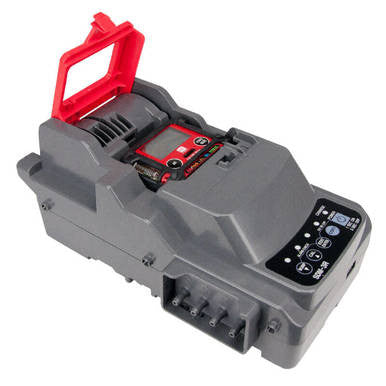

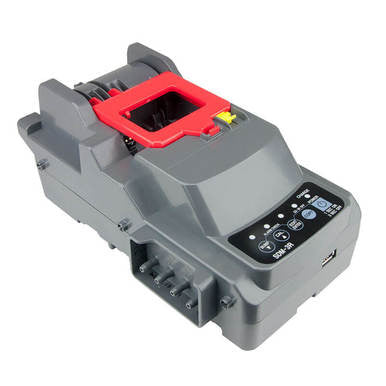

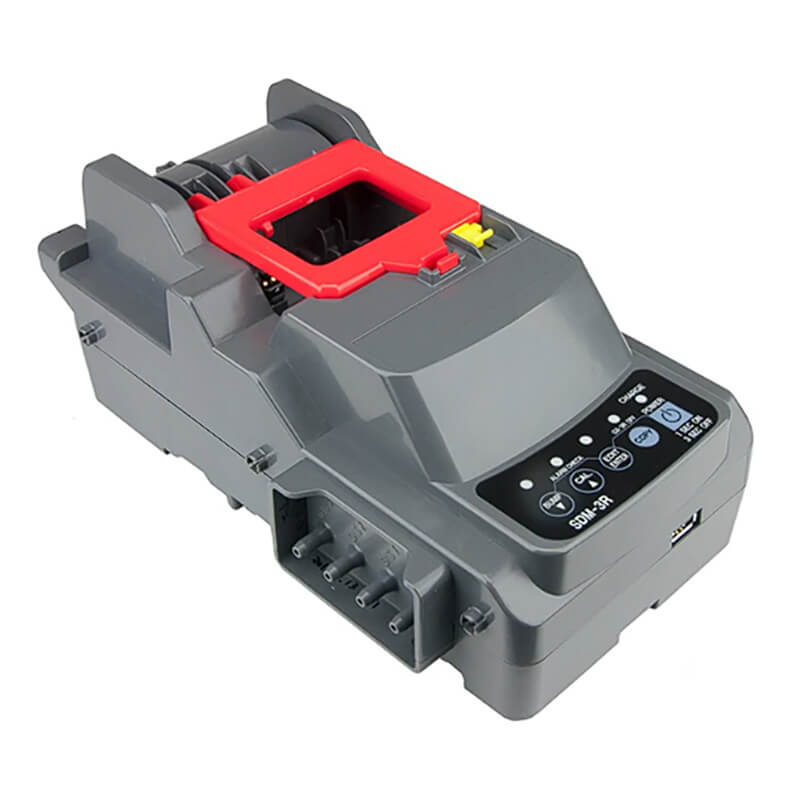

RKI SDM-3R Stand Alone Calibration Station 81-SDM3R101

Ships in 2 - 3 days
  • RKI01-81-SDM3R101-Product_Image_1
  • RKI01-81-SDM3R101-Product_Image_2
  • RKI01-81-SDM3R101-Product_Image_3

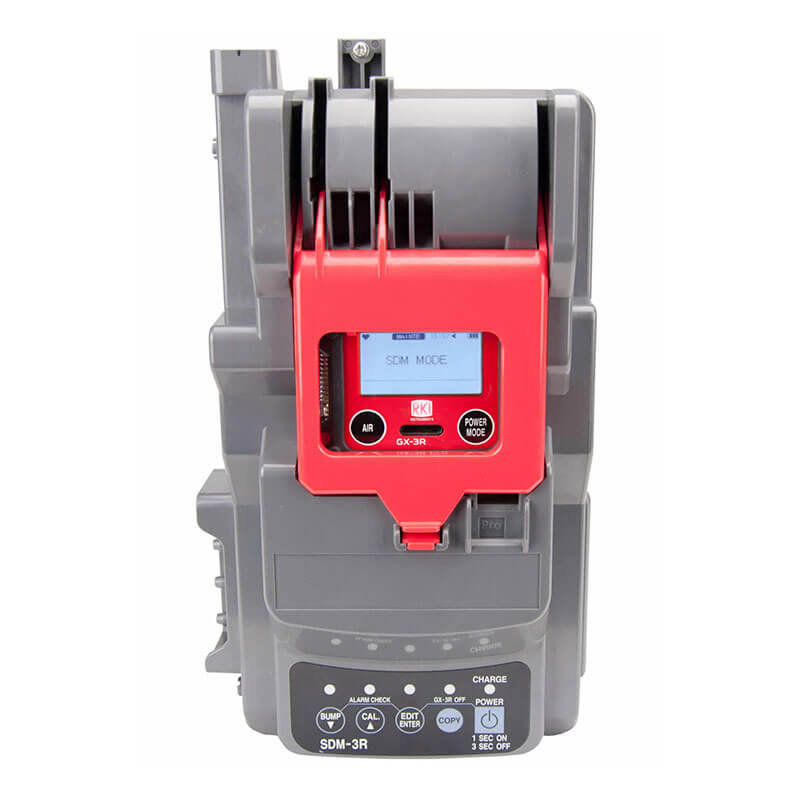

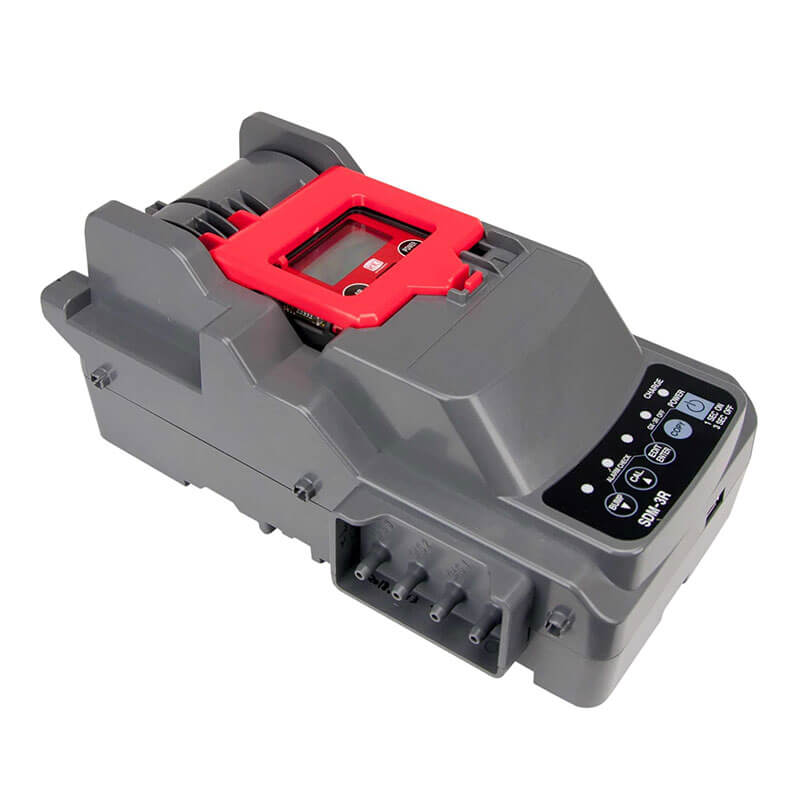

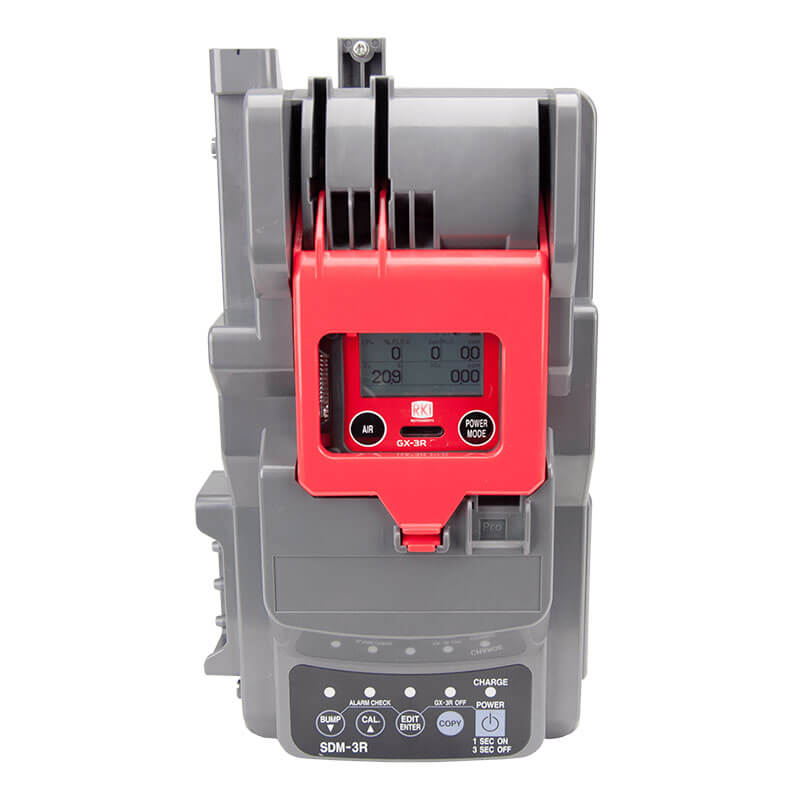

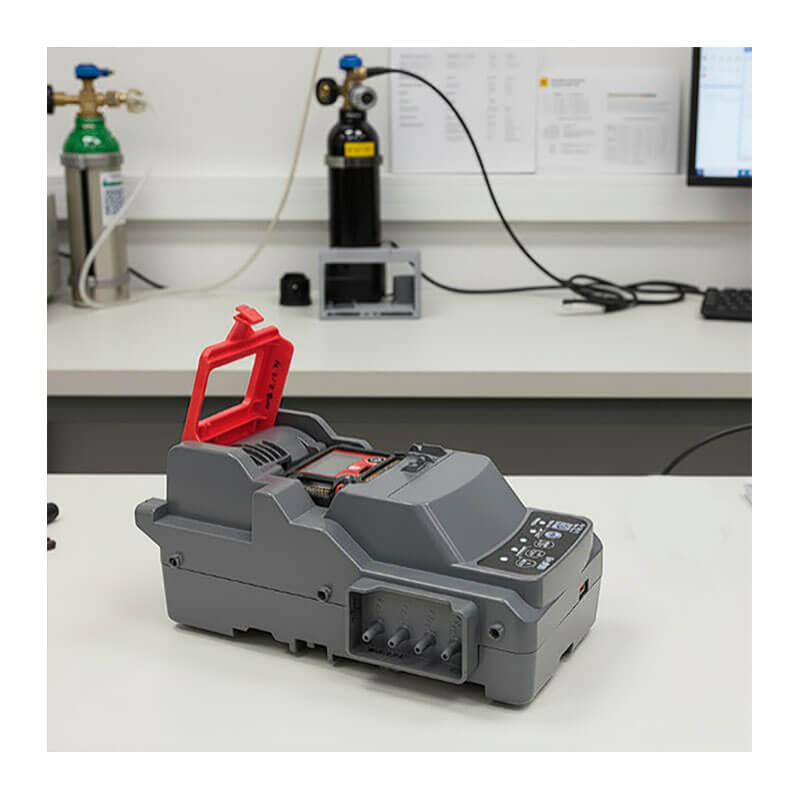

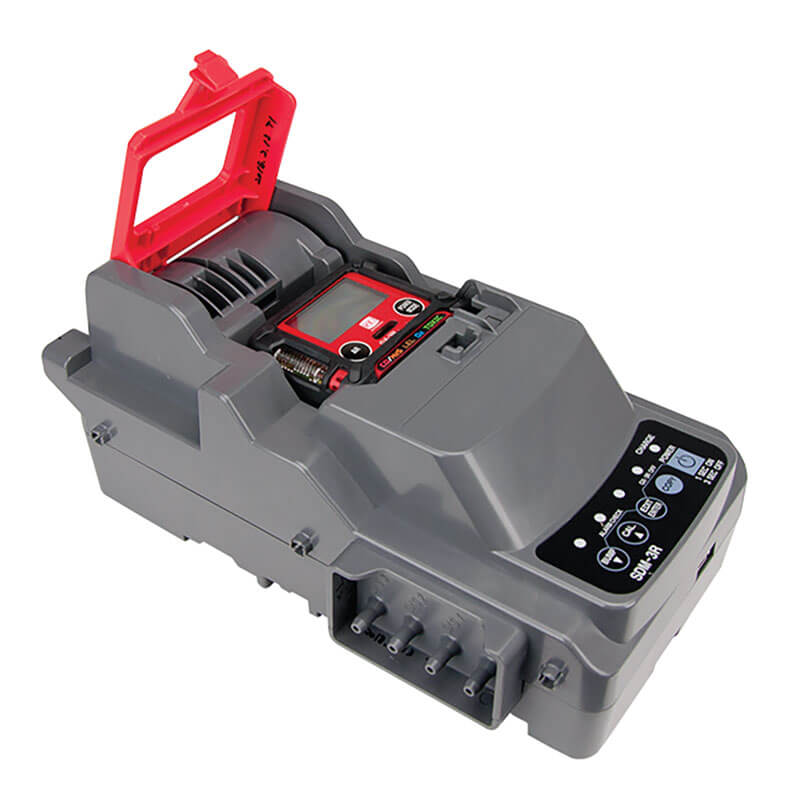

RKI SDM-3R Stand Alone Calibration Station is a maintenance tool that automates the service of a GX-3R portable gas monitor. This docking station can be used as a stand alone device for charging, calibration and bump testing, with all records stored automatically for future upload to a PC via USB flash drive (PC software and flash drive included).

Key Features:

  • Stand-alone station (no PC Required)
  • Charging
  • Calibration
  • Bump Test
  • Save Bump Test and Calibration records
  • Bump test and calibration records copy
  • to USB jump drive
  • Includes PC software for viewing/archiving
  • bump test and calibration records

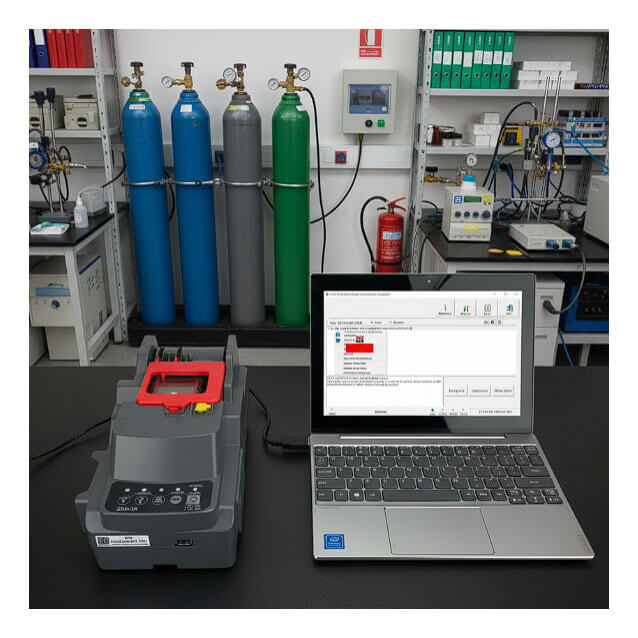

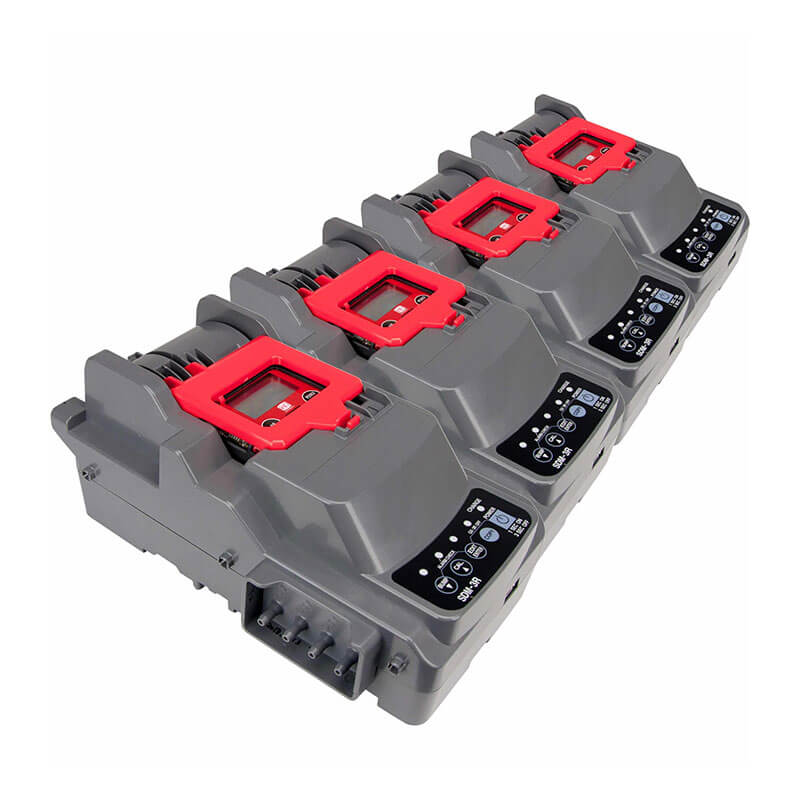

  • Multiple modules connected to a PC (10 max)
  • Automatic calibration/bump test option
  • Configure GX-3R (Pro) parameters
  • Archive Bump Test and Calibration records
  • Archive data to network location
  • Software controlled data retrieval


  • 12 VDC NOTE: AC Adapter with 100 - 240 VAC, 50/60 Hz, 0.6A input and 12 VDC, 1.2A output provided as standard.
  • For Indoor Use Only • -10° C to 40° C, below 80% Relative Humidity, Non-Condensing
  • Maximum number of records saved: 200 (stand-alone), unlimited with software

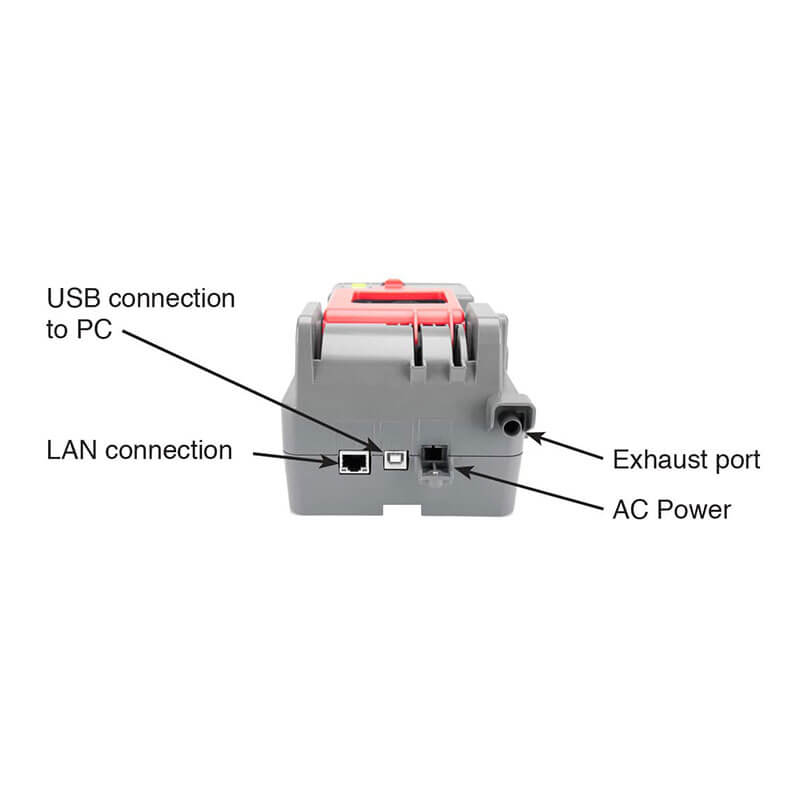

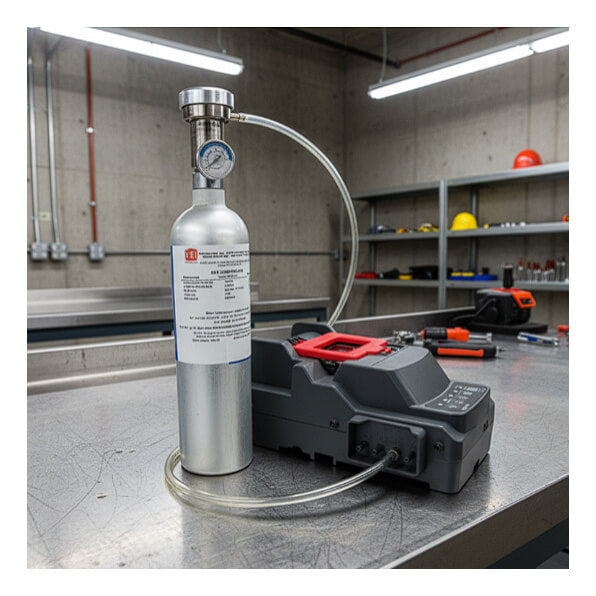

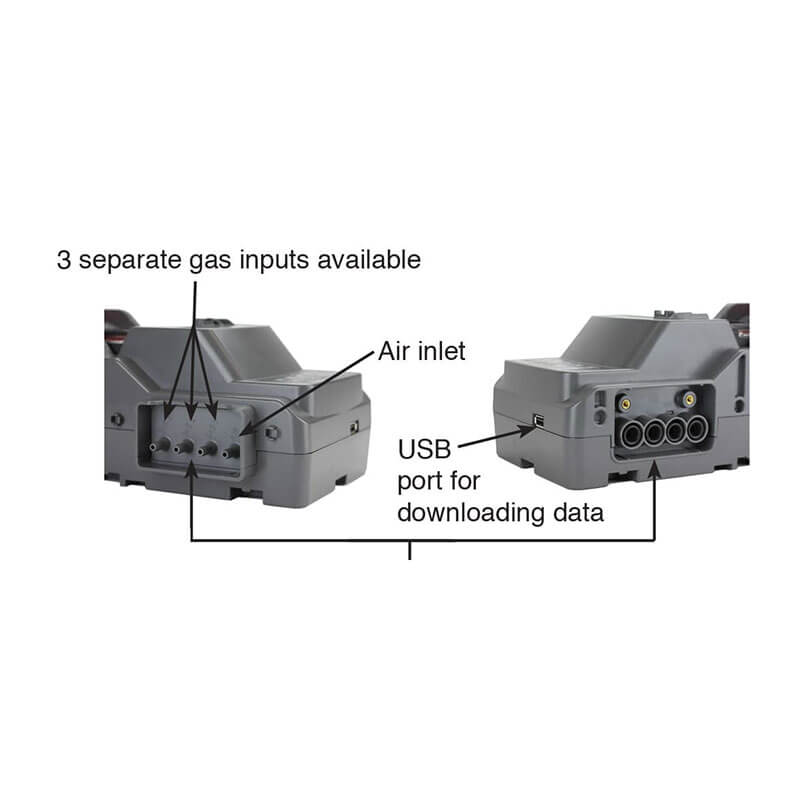

  • 3 ports: 1 calibration gas, 1 fresh air and 1 exhaust

Standard Accessories:

  • AC Adapter
  • USB Flash Drive
  • Single Module Data Viewer Software
  • SDM GX Docking Station PC Controller Program
  • Inlet Air Filter
  • Instruction Manual
  • 10 Foot Long Exhaust Tube
  • One 3 Foot Long Tube for GAS Fitting
  • 2 T-Fittings (for PC Controlled Configuration only)
  • 10 Foot Long 3/16 Inch Tube for GAS manifold- ing (used for PC Controlled Configuration only)
  • Check Valve (used for PC Controlled Configuration only)
  • USB Cable, Type A to Type B

Part Number:
81-SDM3R101 SDM-3R calibration station with 1 solenoid, AC adapter, flash drive, USB cable, and tubing

View AllClose

Additional Information

5.00 LBS
10.00 (in)
8.00 (in)
13.50 (in)
