RKI SDM-3R Stand Alone Calibration Station 81-SDM3R101

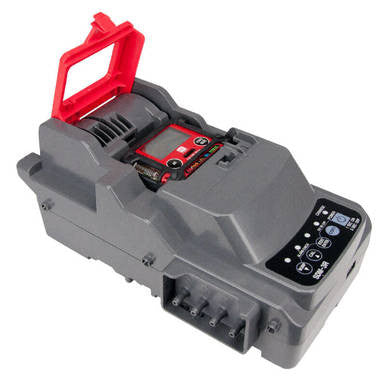

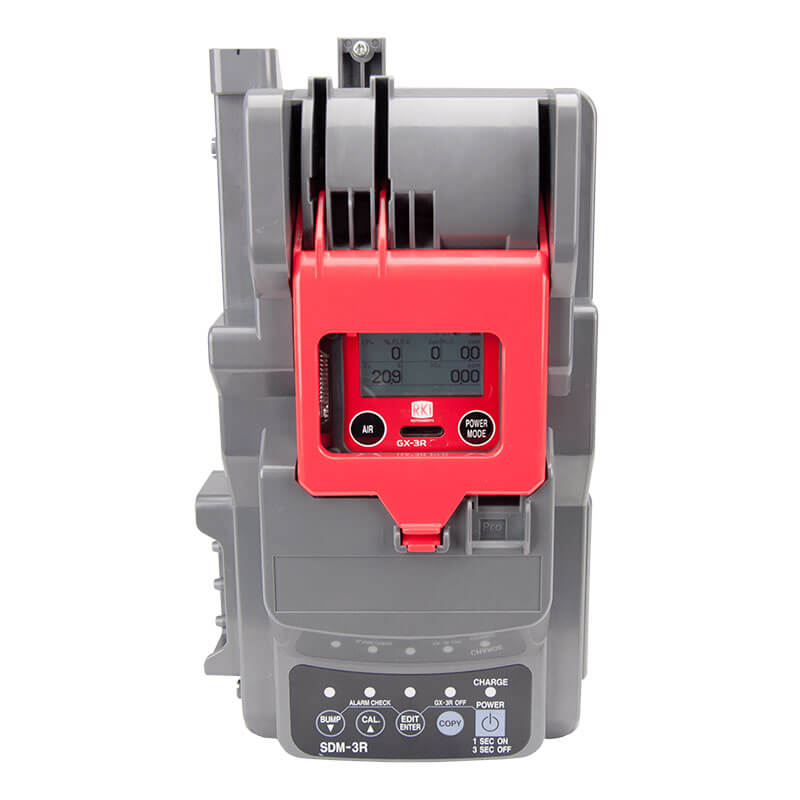

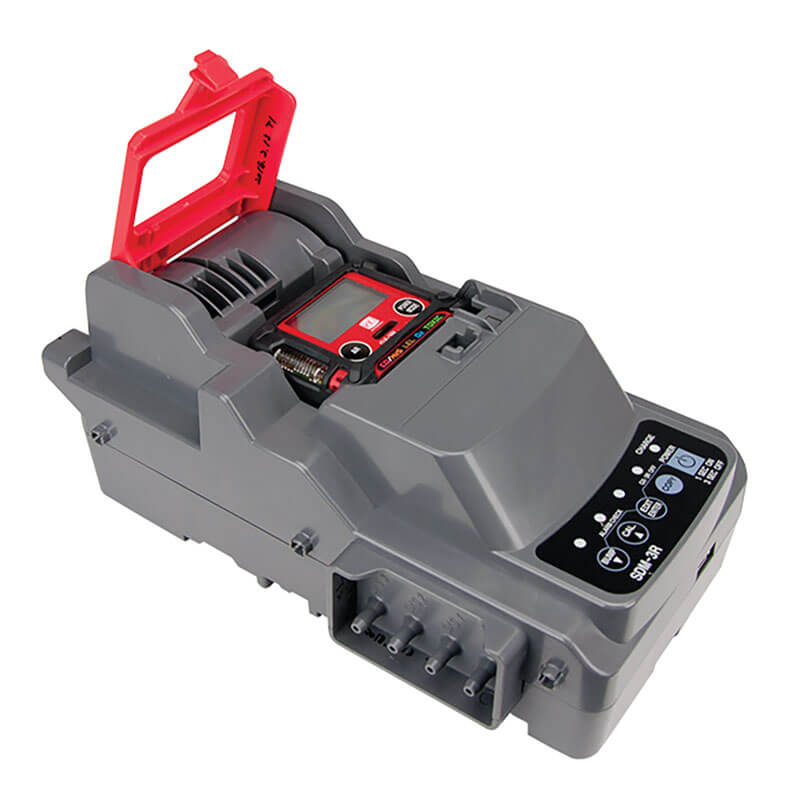

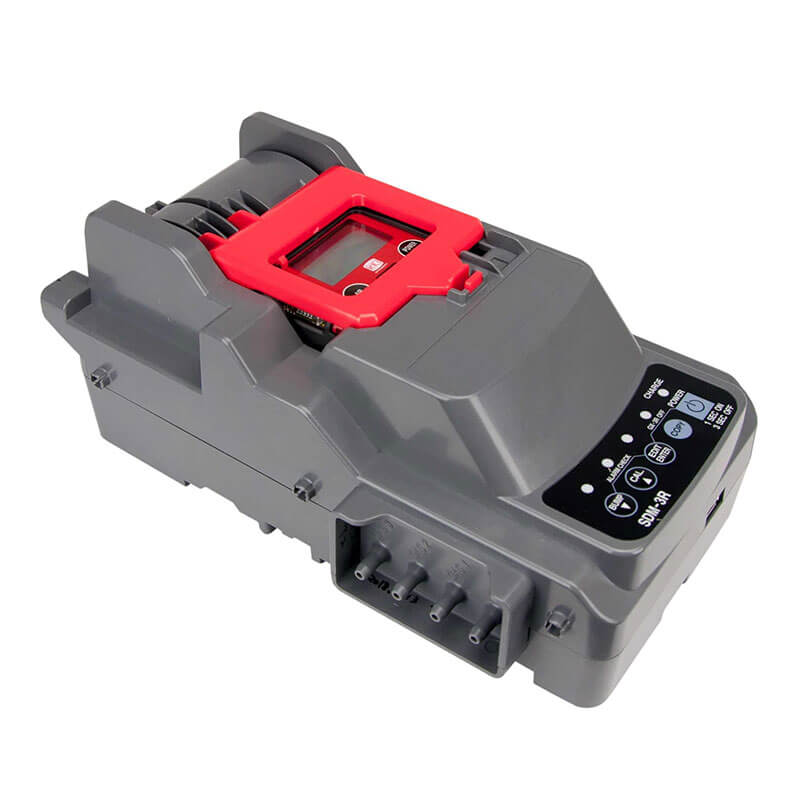

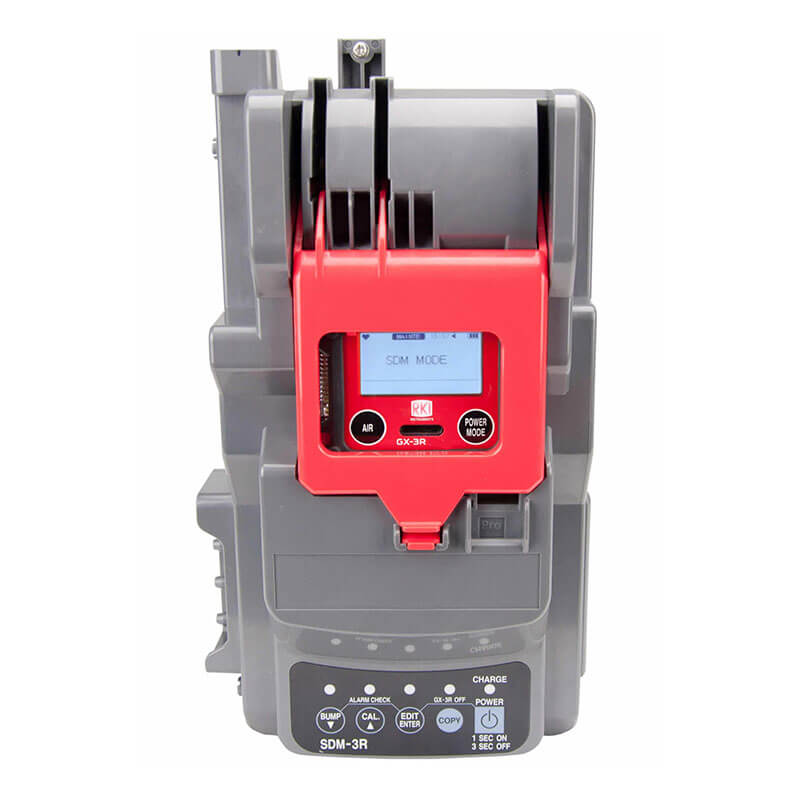

RKI SDM-3R Stand Alone Calibration Station is a maintenance tool that automates the service of a GX-3R portable gas monitor. This docking station can be used as a stand alone device for charging, calibration and bump testing, with all records stored automatically for future upload to a PC via USB flash drive (PC software and flash drive included).

Key Features:

• Stand-alone station (no PC Required)
• Charging
• Calibration
• Bump Test
• Save Bump Test and Calibration records
• Bump test and calibration records copy
• to USB jump drive
• Includes PC software for viewing/archiving
• bump test and calibration records

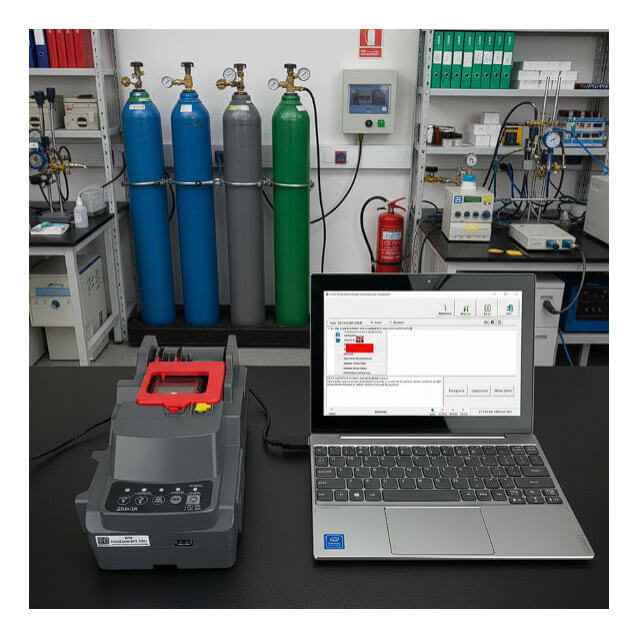

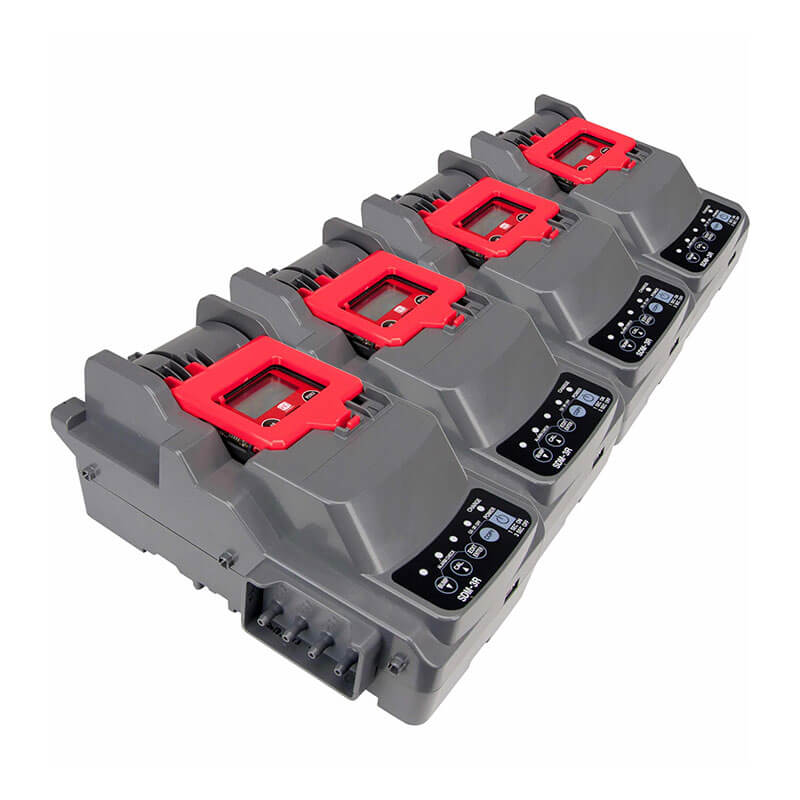

• Multiple modules connected to a PC (10 max)
• Automatic calibration/bump test option
• Configure GX-3R (Pro) parameters
• Archive Bump Test and Calibration records
• Archive data to network location
• Software controlled data retrieval

Specifications:

• 12 VDC NOTE: AC Adapter with 100 - 240 VAC, 50/60 Hz, 0.6A input and 12 VDC, 1.2A output provided as standard.
• For Indoor Use Only • -10° C to 40° C, below 80% Relative Humidity, Non-Condensing
• Maximum number of records saved: 200 (stand-alone), unlimited with software

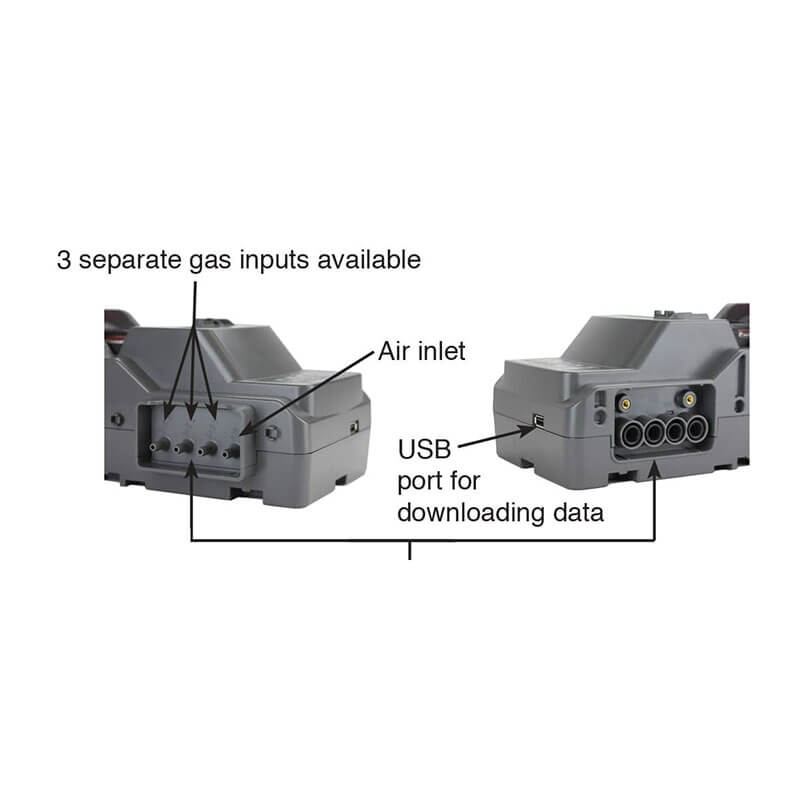

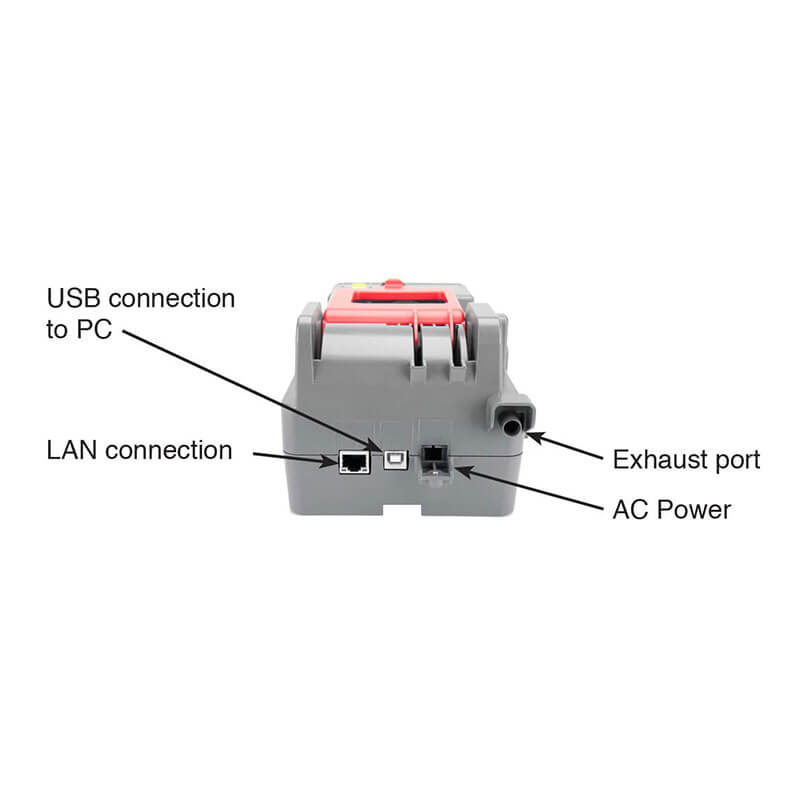

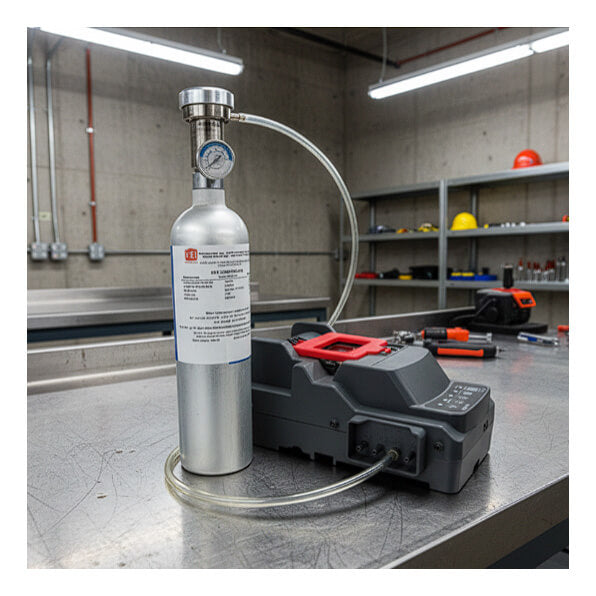

• 3 ports: 1 calibration gas, 1 fresh air and 1 exhaust

Standard Accessories:

• AC Adapter
• USB Flash Drive
• Single Module Data Viewer Software
• SDM GX Docking Station PC Controller Program
• Inlet Air Filter
• Instruction Manual
• 10 Foot Long Exhaust Tube
• One 3 Foot Long Tube for GAS Fitting
• 2 T-Fittings (for PC Controlled Configuration only)
• 10 Foot Long 3/16 Inch Tube for GAS manifold- ing (used for PC Controlled Configuration only)
• Check Valve (used for PC Controlled Configuration only)
• USB Cable, Type A to Type B

Part Number:
81-SDM3R101 SDM-3R calibration station with 1 solenoid, AC adapter, flash drive, USB cable, and tubing
