WatchGas SST4-PUMP Sampling & Charging Kit SST4-PUMP-ACC
Description
The

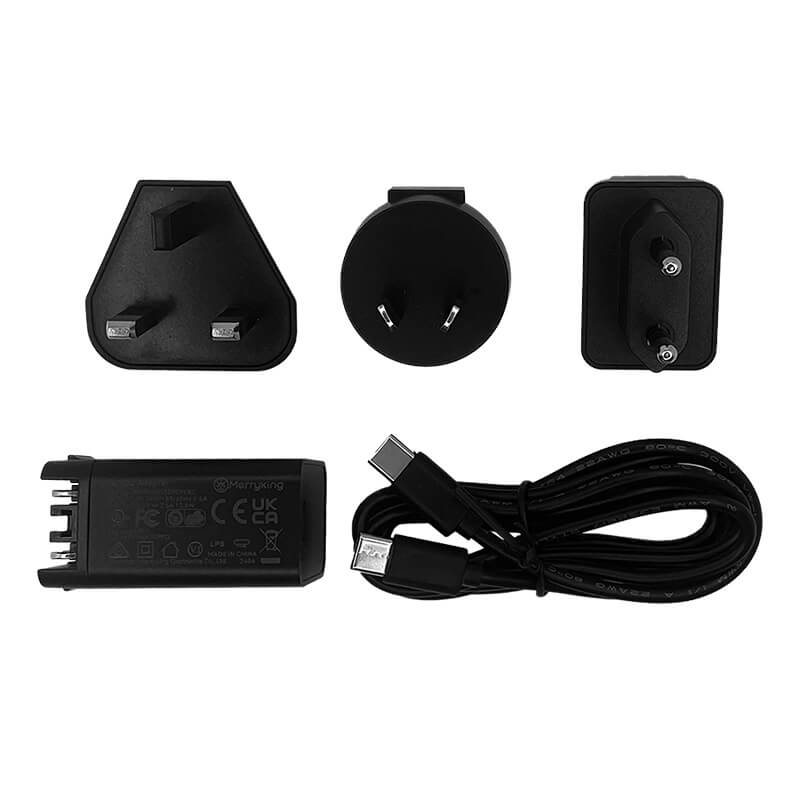

WatchGas SST4-PUMP Sampling & Charging Kit (SST4-PUMP-ACC) consolidates the sampling and charging accessories needed to fully deploy the
SST4-PUMP 4-gas monitor in sample-draw configurations. It includes global power adapters (US, EU, GB, AU plugs), multiple filter options, 3-meter sampling tubing, and a sampling probe — everything required for remote-area gas sampling where the monitor cannot be positioned at the measurement point.
The SST4-PUMP runs an internal motorized pump that draws gas from confined spaces, trenches, tanks, and manholes to the monitor at the entry point. The sampling kit makes that configuration immediately operational. Filter options in the kit handle standard particulate loads; for heavy-dust or moisture-laden environments, the
SST demand flow regulator and additional tubing from
Last-O-More Tubing extend reach and filtration capability.

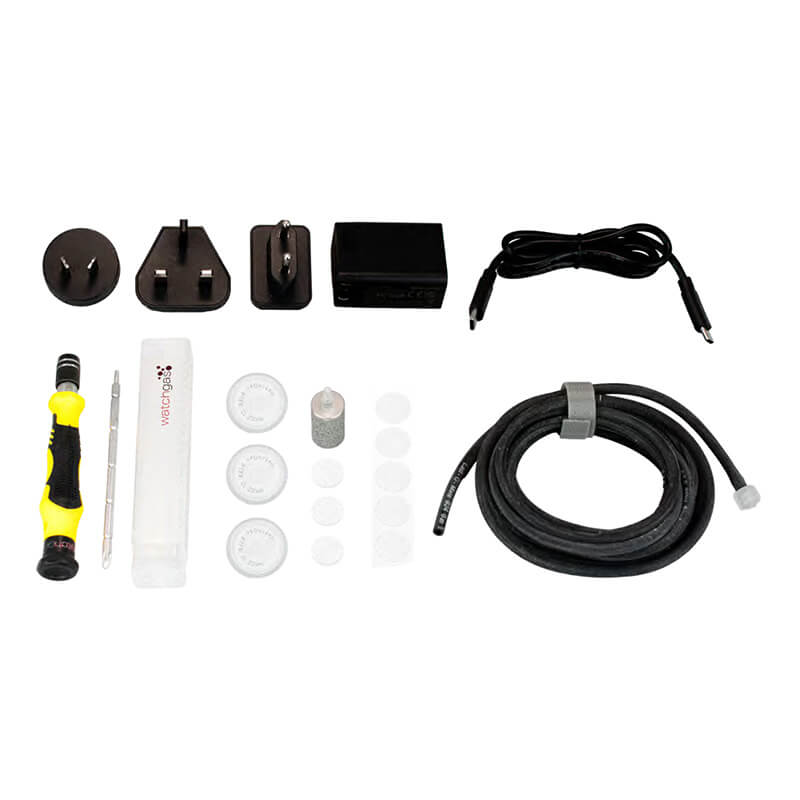

Kit contents: Global power adapters (US / EU / GB / AU) | Multiple filter configurations | 3-meter sampling tube | Sampling probe | Compatible with SST4-PUMP only (not SST4-MINI or SST4-MICRO).
For probe reach beyond 3 meters, additional tubing can be added. Call
1-800-467-4374 to confirm kit contents for your specific deployment.
Technical documents:
Brochure
Quick Start Guide
Frequently Asked Questions
What is included in the SST4-PUMP-ACC kit?
The SST4-PUMP-ACC includes: global charging adapters for US, EU, GB, and AU outlet types; multiple filter configurations for sampling line protection; 3 meters of sampling tubing; and a sampling probe for directing the inlet to the measurement area. The kit is bundled specifically for the
SST4-PUMP — it is not compatible with the diffusion-only SST4-MINI or SST4-MICRO.
How does sample-draw operation work with the SST4-PUMP?
The SST4-PUMP's internal motorized pump draws ambient air from the sampling point through the tubing and probe to the monitor's sensor array. This lets an operator pre-entry-test a confined space — manhole, tank, trench, or utility vault — while remaining outside the space. The sampling kit provides the probe and tubing to make that configuration operational immediately. Sampling tube length determines the maximum standoff distance from the entry point.
Can I extend the sampling tube reach beyond 3 meters?
Yes. The kit includes 3 meters of sampling tubing as a standard configuration. For deeper confined spaces or longer standoff requirements, additional
Last-O-More Tubing (3×5 mm) can extend the line. Note that pump performance — flow rate and response time — can degrade with very long tube runs; consult the SST4-PUMP operating manual for maximum recommended tube length.
Is a demand flow regulator needed with this kit?
For calibration gas connections, a
demand flow regulator controls the gas supply to match the pump's draw rate, preventing over-pressurization of the sensor inlet. The SST4-PUMP-ACC does not include a regulator — it is ordered separately and used when calibrating the SST4-PUMP with bottled calibration gas.
Read more
