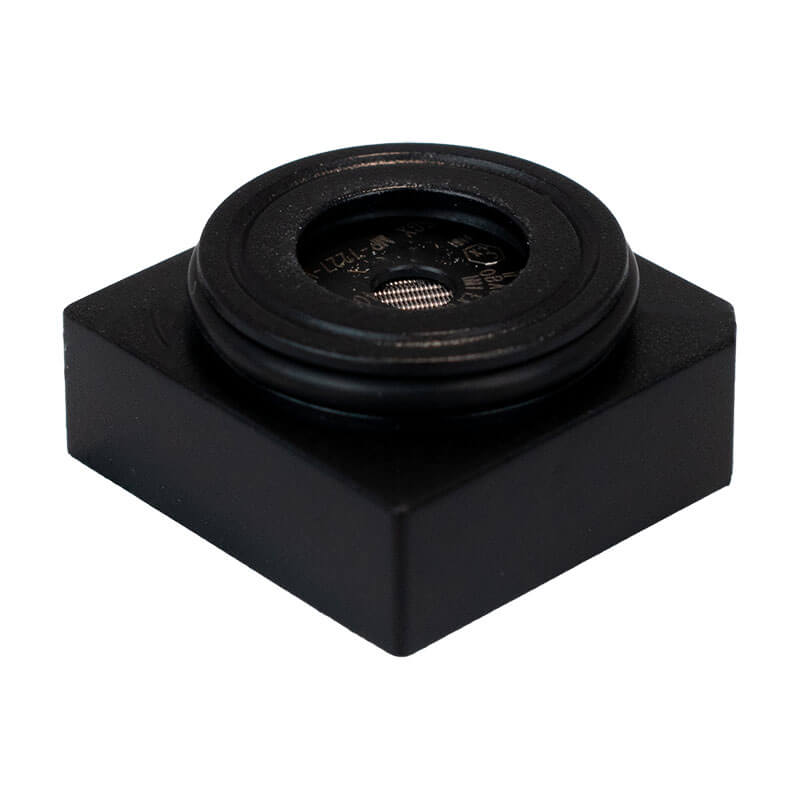

WatchGas SST4-PUMP Replacement LPC LEL Sensor SST-X4-RPL

When your LEL sensor drifts, you don't replace the whole monitor. You swap the sensor cell.

That's the operational advantage of the serviceable WatchGas SST4 line. This WatchGas Replacement LPC LEL Sensor drops into the WatchGas SST4-PUMP 4-Gas Detector when configured with an LPC (Low Power Consumption) LEL sensor.

An LEL sensor is the fire channel of a 4-gas monitor. It doesn't measure toxicity — it measures how close the atmosphere is to being ignitable. OSHA's permit-required confined space rule (29 CFR 1910.146) draws this line concretely: workers must retrieve at 10% LEL and evacuate at 100% LEL. For pump-drawn sampling in particular, LEL monitoring is often the very first entry-preparation step — you sample the atmosphere before anyone climbs into a tank, a vault, or a permit-required space to determine whether entry is permissible at all.

Why LPC on the SST4-PUMP: battery runtime and mechanical robustness for portable field sampling. The SST4-PUMP is the pump-drawn sampling variant of the SST4 platform — built for the crew that samples an atmosphere through a wand or sampling tube before entry, or that takes gas readings from remote hard-to-reach points across a job site. The LPC LEL sensor is the battery-first, shock-resistant choice for that form factor. MEMS-scale pellistor architecture means fast response to light hydrocarbons (methane, propane, natural gas), mechanical robustness against the drops and impacts that portable field monitors absorb, and low enough power draw that a working shift's battery isn't consumed by the LEL channel alone.

The trade-off (honest disclosure): LPC is still a pellistor at heart. Silicones, sulfur compounds (H2S in sour gas or wastewater), and halogens will poison it just as they poison the CAT variant — the shock-resistance advantage doesn't extend to poisoning resistance. If your monitoring environment contains any of those chronic poisoning agents, consider the NDIR variant (SST-X3-RPL) as a fleet-level configuration change. See the FAQ for the LPC-vs-NDIR decision on the pump platform.

What this sensor is (and isn't):

• It IS a factory replacement LPC (Low Power Consumption) MEMS-style pellistor combustible-gas sensor cell for the WatchGas SST4-PUMP monitor configured with an LPC LEL sensor.
• It is NOT compatible with the SST4-MICRO (that also uses an LPC MEMS pellistor, but a smaller variant — use SST-X1-RPL for the MICRO).
• It is NOT compatible with the SST4-MINI (which uses CAT / X2 or NDIR / X3 — not LPC).
• It is NOT compatible with SST4-PUMP monitors configured with CAT (use SST-X2-RPL) or NDIR (use SST-X3-RPL).
• It is NOT a standalone gas detection device. The sensor cell requires a compatible WatchGas SST4-PUMP to function.

WatchGas SST4 LEL sensor family — self-select the correct variant:

Sensor SKU	Sensor technology	Compatible monitor(s)	Best for
SST-X1-RPL	LPC (Low Power Consumption)	SST4-MICRO only	Battery-first compact diffusion monitoring; light-hydrocarbon response
SST-X2-RPL	CAT (Catalytic bead / pellistor)	SST4-MINI + SST4-PUMP	Traditional broad-spectrum combustible-gas response — industry-standard for methane, propane, and common hydrocarbon mixes
SST-X3-RPL	NDIR (Non-Dispersive Infrared)	SST4-MINI + SST4-PUMP	Poisoning-immune, works in oxygen-deficient atmospheres, 10-year expected lifetime
SST-X4-RPL (this SKU)	LPC (Low Power Consumption)	SST4-PUMP only	Battery-first pump-drawn sampling; field-service and confined-space entry preparation; mechanical shock resistance

If you're not certain how your SST4-PUMP was configured, check the invoice or product label, or call PK Safety at 800.829.9580 with the serial number and we'll confirm which X-variant fits.

About this sensor (LPC / MEMS-style pellistor for pump form factor): the LPC design is a low-power MEMS-scale pellistor optimized for the battery-operated portable form factor of the SST4-PUMP. Same fundamental detection principle as the traditional catalytic bead — combustible gas contacts the catalyst-coated bead, burns, heats it, and unbalances a Wheatstone bridge to produce the LEL reading — but engineered for lower current draw and higher mechanical robustness. Standard 2-year sensor warranty.

When to replace an LEL sensor:

• The sensor fails a bump test and won't recover on recalibration
• Calibration drift exceeds tolerance across successive cal events — with LPC pellistors, this often shows up as span-gas response falling short of expected reading, indicating catalytic activity loss
• The monitor displays a sensor fault code specific to the LEL channel
• The sensor has been exposed to a known pellistor poison (silicone, H2S, halogens, tetraethyl lead) even if it appears to still respond — poisoning damage is progressive and permanent, and this is the most common early-life failure mode for portable LPC sensors deployed into oil & gas or industrial environments
• The sensor has been exposed to a combustible atmosphere above its measurement range (>100% LEL) — thermal damage from over-range exposure may not recover
• Physical damage after a drop or impact — LPC MEMS design is more shock-resistant than traditional catalytic bead, but a hard enough impact can still break the sensor
• The sensor's warranty period (2 years) has elapsed. For confined-space entry programs and permit-space workflows, proactive replacement on a defined cadence is standard operating discipline
• You're rotating a fleet's sensor generation on a defined cadence for compliance documentation

Best-in-batch economics: the SST-X4-RPL delivers the largest single-sensor savings across the WatchGas SST replacement-sensor catalog. $175 sensor vs $980 full SST4-PUMP monitor is a $805 savings — a 17.9% sensor-to-monitor ratio. If the rest of the monitor (housing, pump, battery, display, and the O2, CO, H2S sensors) is in good working order, LPC sensor swap is the highest-ROI single maintenance action across the entire WatchGas SST fleet.

Who buys the SST-X4-RPL:

• Owners of the WatchGas SST4-PUMP (X4 / LPC configuration) whose LEL sensor has drifted, failed a bump, been exposed to a pellistor poison, or reached end-of-warranty
• Confined-space entry contractors — pump-drawn sampling before entry is the canonical LPC-PUMP application. Battery runtime matters when the crew does multiple entries per shift.
• Oil & gas tank entry and turnaround crews — tank-battery hatches, storage tank interiors, sump inspections. API RP 2016 workflows.
• Petroleum refining maintenance crews — unit-shutdown gas testing where a portable pump-drawn monitor is carried across many hard-to-reach sample points
• Natural gas utility field service — leak investigation, meter-set validation, service repair where pump-drawn sampling is preferred over diffusion
• Wastewater treatment — wet-well and headworks entry preparation (be alert to H2S co-exposure poisoning risk on any pellistor variant — chronic H2S is a signal to consider NDIR)
• Marine vessel interior spaces — cargo hold entry preparation, engine-room and ballast-tank sampling
• Landfill and biogas operators — confined-space entry preparation in gas collection infrastructure
• Brewery and distillery — tank and cellar entry preparation (ethanol vapor + confined space)
• Utility vault entry contractors (telecom, water, gas) — pump-sampling before descending

Sensor specifications:

Gas	Sensor technology	Warranty	Compatible monitors
Combustible gas (0–100% LEL)	LPC (Low Power Consumption MEMS-style pellistor)	2 years	WatchGas SST4-PUMP (X4 config)

Key features:

• Fast response time for light hydrocarbons (methane, propane, butane, natural gas)
• Mechanical robustness — MEMS design resistant to impact shock (a common failure mode for traditional catalytic bead pellistors in portable field-service use)
• Low power consumption — optimized for extended battery runtime in field-service and multi-entry-per-shift workflows
• 2-year sensor warranty (baseline for WatchGas SST replacement sensors)
• Best-in-batch economics — $805 savings vs full SST4-PUMP monitor replacement, the largest single-sensor swap ROI in the WatchGas SST fleet
• Standard cal gas: 50% LEL methane (2.5% CH4 in air) — widely stocked, non-corrosive

PK Safety services the full WatchGas SST line with factory-trained technicians in-house. If you'd rather send the monitor to us for LEL sensor replacement than swap the cell yourself, we handle that in-house — full swap, calibration verification against certified methane or pentane span gas, and return-to-service. We also service BW/Honeywell (Factory Authorized Service Center), RKI, and RAE Systems monitors — one shop for a mixed-brand fleet's LEL sensor lifecycle. Call us at 800.829.9580 to discuss whether LPC, CAT, or NDIR is the right sensor tech for your SST4-PUMP environment, or to plan a fleet-level LEL sensor strategy across portable and fixed deployments.

Part Number: WG01-SST-X4-RPL — WatchGas Replacement LPC LEL Sensor for SST4-PUMP (2-year warranty)

Frequently Asked Questions

Which WatchGas monitors is the SST-X4-RPL compatible with?

The SST-X4-RPL is compatible with the WatchGas SST4-PUMP 4-Gas Detector ONLY — and only when the monitor is configured with an LPC (Low Power Consumption) LEL sensor.

It is NOT compatible with:

• The SST4-MICRO (uses SST-X1-RPL — also LPC, but a smaller variant sized for the compact diffusion housing)
• The SST4-MINI (uses SST-X2-RPL CAT or SST-X3-RPL NDIR — no LPC config)
• SST4-PUMP monitors configured with CAT (use SST-X2-RPL) or NDIR (use SST-X3-RPL)

If you're not certain how your SST4-PUMP was configured, check the invoice or product label, or call PK Safety at 800.829.9580 with the serial number and we'll confirm.

LPC vs CAT vs NDIR on the SST4-PUMP: which is right for my environment?

The SST4-PUMP is the only monitor in the SST4 family with three LEL sensor configuration options. The right choice depends on your monitoring environment and how the monitor is deployed.

LPC (SST-X4-RPL, this SKU) is the right choice if:

• Your primary use case is portable field-service and confined-space entry preparation — crews carrying the monitor across job sites, doing multiple entries per shift
• Battery runtime is a priority (LPC's low power draw extends time between recharges)
• Mechanical robustness matters (portable monitors get dropped; MEMS pellistor is more shock-resistant than traditional catalytic bead)
• Your monitoring environment is clean (no silicones, no chronic H2S, no halogens, no inert atmospheres)
• The combustible gases you monitor are common light hydrocarbons (methane, propane, natural gas)

CAT (SST-X2-RPL) is the right choice if:

• You need broad-spectrum LEL response across many different combustible chemistries (VOCs, solvents, alcohols)
• Monitoring workflow includes fumes from painting, coatings, printing, or fermentation where LPC's light-hydrocarbon optimization is a poor fit
• You want the industry-standard sensor tech with the longest field track record

NDIR (SST-X3-RPL) is the right choice if:

• Your environment has silicones, chronic H2S, or halogens (all pellistor poisons — LPC and CAT both fail; NDIR is immune)
• You need LEL monitoring in oxygen-deficient or inert atmospheres (LPC and CAT require oxygen; NDIR does not)
• You want a 10-year expected sensor life for fixed / long-cycle deployments (LPC and CAT are ~2 years)
• You do not need to detect hydrogen (NDIR is blind to H2) or broad-spectrum non-IR-active VOCs

Call PK Safety at 800.829.9580 to talk through your specific monitor deployment. A fleet often runs a mix — LPC on portable field-service monitors, NDIR on fixed monitoring stations, and CAT where broad-spectrum coverage is needed.

Can I run a mixed fleet — LPC on some monitors and NDIR on others?

Yes, and this is often the smartest total-cost-of-ownership approach for a diversified operation.

A common mixed-fleet pattern:

• Portable field-service monitors (SST4-PUMP with LPC / X4): confined-space entry preparation, refinery unit-shutdown gas testing, utility field crews. Battery runtime + shock resistance + $175 sensor economics are the priority.
• Fixed remote monitoring stations (SST4-PUMP with NDIR / X3): unmanned wellhead, tank battery, or pipeline monitors. 10-year expected sensor life dramatically reduces maintenance visits and total cost of ownership.
• Portable monitors in poisoning-heavy environments (SST4-PUMP with NDIR / X3 despite the premium): silicone-heavy semiconductor / manufacturing operations, sour gas H2S-rich fields. LPC would fail from poisoning before the shift ended.

Each monitor's configuration lives in the monitor itself (X4 vs X3 vs X2 config), so a mixed fleet is a real deployment strategy — not a workaround. The replacement sensor SKU always matches the monitor's original configuration. Call PK Safety at 800.829.9580 to talk through a fleet-level LEL sensor strategy.

How is LEL monitoring different from toxic-gas monitoring — and why does the sensor matter?

Toxic-gas sensors (H2S, CO, O2) protect against exposure — the alarm setpoints are anchored to permissible exposure limits like OSHA PELs or NIOSH RELs, and the concentrations of concern are typically parts per million.

LEL sensors protect against fire and explosion. The scale is 0–100% LEL, where 100% LEL means the atmosphere has reached the lower flammable limit and is now ignitable given a spark or heat source. The concentrations are much higher than toxic thresholds — methane at 100% LEL is about 5% by volume, or 50,000 ppm.

OSHA's permit-required confined space rule (29 CFR 1910.146) draws two hard lines: workers must retrieve at 10% LEL, and evacuate at 100% LEL. For pump-drawn sampling with the SST4-PUMP, LEL monitoring is often the very first entry-preparation step — sample the space before anyone climbs in.

What causes an LPC LEL sensor to fail or drift?

The most common LPC LEL sensor failure modes:

• Silicone poisoning — the classic pellistor killer. Silicones from RTV sealants, greases, lubricants, some hand creams, and industrial mold-release agents deposit on the sensor and reduce catalytic activity. Progressive and typically permanent. LPC's MEMS architecture doesn't confer silicone-poisoning immunity — it's engineered for shock resistance and low power, not chemical durability.
• Sulfur compound poisoning (H2S, mercaptans) — common concern in sour gas oil & gas fields and wastewater environments
• Halogen poisoning — chlorinated solvents, refrigerants, and other halogenated compounds inhibit pellistor response
• Over-range exposure — pellistor cells exposed to concentrations above 100% LEL can be thermally damaged and may not recover full sensitivity
• Mechanical shock — LPC's MEMS design is more shock-resistant than traditional catalytic bead, but a hard enough impact can still break the sensor. Field-service portable monitors take real abuse; if you're seeing shock-related failures, the LPC choice is already the right pellistor tech, but call PK Safety to discuss whether physical handling changes could reduce failure rate.
• Normal wear — pellistor cells drift with cumulative use as the bead structure ages

If your SST4-PUMP has been used in an environment with silicone, sulfur, or halogen exposure and the LEL channel is showing drift, poisoning is the most likely cause — and if the poisoning source is chronic, NDIR (SST-X3-RPL) is a better long-term fit than another LPC swap.

Can I install the SST-X4-RPL myself, or do I need to send the monitor to PK Safety?

Both paths work. The SST4-PUMP is designed for user sensor replacement, and the WatchGas SST4-PUMP manual walks through the swap procedure. After installation, you must complete a full calibration to verify the new LEL sensor's response against a known span gas — typically 50% LEL methane (2.5% CH4 in air) or 50% LEL pentane.

LEL calibration is more straightforward than specialty-gas calibration (methane cal gas is standard, non-corrosive, and widely stocked), so DIY sensor swap is a realistic path if you have a functioning calibration workflow. For SST4-PUMP specifically, verify pump-drawn calibration performance across the sample-tube length you actually use in the field — sensor response can differ slightly between direct-diffusion cal and pump-drawn cal.

If you don't have LEL cal gas or a calibration station on hand — or you'd rather have the swap done by a factory-trained technician who verifies calibration against multiple LEL span points and validates pump-tube behavior — sending the monitor to PK Safety is often the safer path. We handle the swap, cal gas, pump-integrity check, and return-to-service documentation.

Should I replace the LEL sensor or buy a new SST4-PUMP?

The SST-X4-RPL sensor cell costs $175. A full new SST4-PUMP monitor (X4 / LPC config) starts at $980. Sensor swap saves $805 — the largest single-sensor swap ROI in the WatchGas SST fleet, at a 17.9% sensor-to-monitor ratio.

Sensor replacement is the more cost-effective path when the monitor's housing, sampling pump, display, battery, and other three sensors (O2, CO, H2S) are in good working order. Full-monitor replacement is a better fit when the monitor itself is aging, the sampling pump has become unreliable, the housing has taken damage, or multiple sensors are due for replacement — and a full new monitor comes with the 3-year instrument warranty on the electronics.

If you're replacing the LEL sensor because of chronic pellistor poisoning in your environment (silicones, H2S, halogens) rather than end-of-warranty wear, the right call may be an NDIR upgrade path (SST-X3-RPL) instead of another LPC sensor. Call PK Safety at 800.829.9580 to talk through the decision.

Not sure which X-variant fits your monitor, or whether LPC, CAT, or NDIR is the right sensor tech for your SST4-PUMP environment? Call PK Safety at 800.829.9580. A person who knows the SST4 platform, LEL sensor technology trade-offs, and fleet-level replacement planning will pick up.
