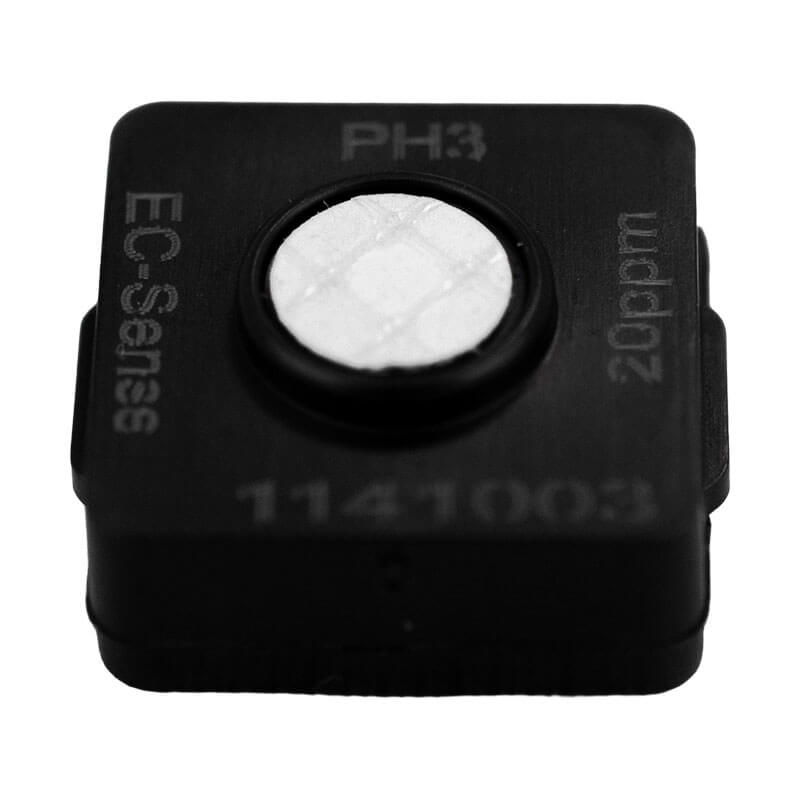

WatchGas SST1 Replacement PH3 Sensor SST-P-RPL
Description
When your PH3 sensor drifts, you don't replace the whole monitor. You swap the sensor cell.
That's the operational advantage of the serviceable WatchGas SST1 line. Traditional single-gas monitors are single-use — when the sensor reaches end-of-life or a bump test reveals unrecoverable drift, the whole unit gets discarded. The SST1 platform is designed to be maintained: this WatchGas Replacement PH3 Sensor drops into the
WatchGas SST1-P Serviceable PH3 Gas Detector and any WatchGas SST4-series multi-gas monitor configured with a PH3 sensor slot.
Phosphine is one of the most toxic gases in the industrial catalog — and its smell arrives too late to help. OSHA's permissible exposure limit for phosphine is 0.3 ppm 8-hour TWA — three tenths of a part per million. ACGIH's TLV goes even stricter at 0.05 ppm. Workers can smell PH3 as a garlic or decaying-fish odor, but the detection threshold is 1–3 ppm — three to ten times the OSHA PEL. By the time you smell phosphine, you're already at multiples of the compliance limit and heading toward acute toxicity. Sub-ppm sensor precision is the entire point of PH3 monitoring. A drifting phosphine sensor doesn't just miss an alarm event; it means workers may be at multiples of the PEL before anyone knows anything is wrong.
What this sensor is (and isn't):
-
It IS a factory replacement PH3 (phosphine) electrochemical sensor cell for the serviceable SST1-P monitor and any WatchGas SST4-series multi-gas monitor custom-configured with a PH3 sensor slot. Note that the SST4 platform's
standard 4-gas sensor set is LEL/O2/CO/H2S — PH3 is a specialty configuration on SST4 monitors, not the default.
-
It is NOT a standalone gas detection device. The sensor cell requires a compatible WatchGas SST monitor to function.
- The WatchGas SST1 line does NOT include Limited-Life (2-year or 3-year alert-only) monitors for phosphine, so there's no non-serviceable variant to exclude from compatibility.
About the sensor: solid polymer electrochemical technology, 1-year sensor warranty. The 1-year warranty is shorter than the 2-year standard on most WatchGas SST replacement sensors — phosphine-tolerant electrochemical cells have shorter useful life across the industry because the cell chemistry is more susceptible to drift and cross-sensitivity, similar to the mercaptan sensors. Factor the shorter warranty into your fleet's replacement cadence.
When to replace a phosphine sensor cell:
- The sensor fails a bump test and won't recover on recalibration
- Calibration drift exceeds acceptable tolerance across successive cal events — especially at the sub-ppm concentrations where the OSHA PEL and ACGIH TLV live, precision is where drift matters most
- The monitor displays a sensor fault code specific to the PH3 channel
- The sensor's warranty period (1 year) has elapsed. For phosphine monitoring in continuous-exposure environments (semiconductor fabs, active fumigation programs), proactive annual replacement is standard operating discipline.
- You're rotating a fleet's sensor generation on a defined cadence — for PH3 monitoring, this discipline is more critical than for higher-PEL gases because a drifting sensor at 0.3 ppm gives less margin for error than one at 20 ppm (H2S) or 50 ppm (CO).
Who buys the SST-P-RPL:
- Owners of the WatchGas SST1-P serviceable phosphine monitor whose current sensor has drifted, failed a bump, or reached end-of-warranty
- Semiconductor manufacturing operations — PH3 is a doping gas for silicon in III-V compound semiconductors, LED manufacturing, and photovoltaic cell production. Continuous monitoring at gas cabinets, delivery lines, and process tools.
- Grain and commodity fumigation operators — aluminum phosphide (AlP) and magnesium phosphide (Mg3P2) tablets release PH3 when exposed to moisture. Grain silos, warehouses, shipping containers, ship holds.
- Post-fumigation inspection crews who need continuous monitoring during aeration and re-entry
- Petroleum refinery operators at hydroprocessing units (PH3 is both a crude contaminant and a catalyst poison)
- Rendering plants and biosolids-handling facilities with occasional PH3 generation from organic decomposition
- Metallurgy operations with specialty phosphine chemistry (some steel/alloy processing)
- Chemical manufacturing plants producing or handling phosphine or phosphine precursors
Sensor specifications:
Gas
Sensor technology
Warranty
Compatible monitors
PH3 (phosphine)
Solid polymer electrochemical (dry-cell)
1 year
SST1-P, SST4-series (with PH3 sensor slot)
Key features:
- High accuracy at sub-ppm phosphine concentrations — critical for OSHA PEL (0.3 ppm) and ACGIH TLV (0.05 ppm) alignment
- 1-year sensor warranty (specialty-cell chemistry)
- Ultra-low power consumption (optimized for battery-operated and IoT-integrated monitors)
- No zero drift
- Silicone-resistant (no poisoning by common industrial silicone contaminants)
- Direct linearity across the detection range
- High temperature range tolerance
PK Safety services the full WatchGas SST line with factory-trained technicians in-house. If you'd rather send the monitor to us for sensor replacement than swap the cell yourself, we handle that in-house — full swap, calibration verification against a certified phosphine standard, and return-to-service. We also service BW/Honeywell (Factory Authorized Service Center), RKI, and RAE Systems monitors — one shop for a mixed-brand fleet's sensor lifecycle. Call us at
800.829.9580 to talk through your phosphine monitoring workflow with someone who understands the SST platform and specialty-gas monitoring.
Technical documents (WatchGas SST1):
SST1 Brochure
Part Number: WG01-SST-P-RPL — WatchGas Replacement PH3 (Phosphine) Sensor (1-year warranty)
Frequently Asked Questions
Which WatchGas monitors is the SST-P-RPL sensor compatible with?
The SST-P-RPL is compatible with:
-
SST1-P Serviceable PH3 Gas Detector — the single-gas phosphine monitor is designed around this sensor
- WatchGas SST4-series multi-gas monitors
only when custom-configured with a dedicated PH3 sensor slot (not the standard LEL/O2/CO/H2S set)
PH3 is a specialty configuration on SST4 monitors, typically ordered for semiconductor manufacturing or fumigation applications. If your SST4 has the standard 4-gas set, this sensor won't fit. Call PK Safety at 800.829.9580 with your monitor's serial number to confirm your SST4's sensor slots.
The WatchGas SST1 catalog does not include Limited-Life (2-year or 3-year alert-only) monitors for phosphine — the SST1-P serviceable is the only PH3 monitor in the WatchGas SST catalog.
Why does phosphine sensor drift matter more than drift on other gases?
Because phosphine's regulatory limits are extraordinarily strict, and the odor threshold sits above the exposure limit. Consider the numbers:
-
OSHA PEL: 0.3 ppm 8-hour TWA — three tenths of a part per million, one of the strictest PELs in Table Z-1
- NIOSH REL: 0.3 ppm TWA + 1 ppm STEL
-
ACGIH TLV: 0.05 ppm 8-hour TWA (2015 update) — six times stricter than OSHA
-
Odor detection threshold: 1–3 ppm (garlic / decaying-fish smell) — three to ten times the OSHA PEL
Two operational implications: (1) sensor precision at sub-ppm concentrations is the entire point of PH3 monitoring — there's no margin for drift at these limits; (2) smell is NOT a reliable backup. By the time workers detect the garlic / decaying-fish odor, they're already at multiples of the OSHA PEL and heading toward acute toxicity. If the sensor drifts and doesn't alarm at 0.3 ppm, workers won't feel a substitute warning until they're at 1–3 ppm — well into the exposure zone.
Proactive sensor replacement at the 1-year warranty end is standard operating discipline for continuous-PH3 environments.
Which industries use the SST1-P and this replacement sensor?
Phosphine monitoring is a specialty need across several industries:
-
Semiconductor manufacturing: PH3 is a doping gas for silicon in III-V compound semiconductors, LED manufacturing, and photovoltaic cell production. Continuous monitoring at gas cabinets, delivery lines, and process tools is standard.
-
Grain and commodity fumigation: aluminum phosphide (AlP) and magnesium phosphide (Mg3P2) tablets release phosphine gas when exposed to moisture. Used to fumigate grain silos, warehouses, shipping containers, and ship holds. Fumigation workers and post-fumigation inspection crews need continuous monitoring during and after the treatment cycle.
-
Petroleum refining: phosphine is both a crude contaminant and a catalyst poison in hydroprocessing units.
-
Rendering plants and biosolids handling: low-level PH3 generation from organic decomposition.
-
Metallurgy and chemical manufacturing: specialty phosphine chemistry in some processing applications.
Why is the SST-P-RPL warranty only 1 year (vs 2 years on H2S / CO / O2 / SO2 / H2 sensors)?
Phosphine-tolerant electrochemical cells have shorter useful life across the safety industry — similar to methanethiol sensors (SST-MM-RPL is also a 1-year-warranty specialty sensor). The cell chemistry is more susceptible to drift and cross-sensitivity because phosphorus-containing compounds interact chemically with the electrochemical detection reaction.
Factor the 1-year warranty into your fleet's replacement cadence. For continuous-phosphine environments (semiconductor fabs, active fumigation programs), 12-month proactive replacement is standard operating discipline; less-continuous exposure environments may run 12–18 months and calibrate frequently.
Can I install the SST-P-RPL myself, or do I need to send the monitor to PK Safety?
Both paths work. The SST1 platform is designed for user sensor replacement, and the WatchGas SST1 manual walks through the swap procedure. After installation, you'll need to complete a full calibration to verify the new sensor's response against a known phosphine standard.
Phosphine cal gas is a specialty item and requires special handling — typically 5 ppm PH3 in nitrogen balance, corrosive to some metals, and requires stainless-steel or nickel-plated regulators (not brass). If you don't have a phosphine cal workflow set up, sending the monitor to PK Safety for the swap and calibration verification is often the safer path. We stock the appropriate cal gas.
Should I replace the sensor or buy a new SST1-P monitor?
The SST-P-RPL sensor cell costs $275. A full new
SST1-P monitor costs $420. Sensor swap saves $145 — about 65% of the full-monitor price for the maintenance action.
The sensor replacement is the more cost-effective path when your monitor's housing, display, battery, and electronics are in good working order. Full-monitor replacement is a better fit when the monitor itself is aging, has physical damage, or has a battery that no longer holds charge — and a full new monitor also comes with the 3-year instrument warranty on the electronics (not just the 1-year sensor warranty).
Call PK Safety at 800.829.9580 with your monitor's condition and use pattern (semiconductor fab continuous monitoring vs intermittent fumigation vs occasional-exposure applications) and we'll walk you through the choice.
Not sure whether your SST4 has a PH3 sensor slot, or how to set up phosphine calibration for a swap? Call PK Safety at 800.829.9580. A person who knows phosphine monitoring and the SST platform's service ecosystem will pick up.
