SKU: WG01-SST-MM-RPL

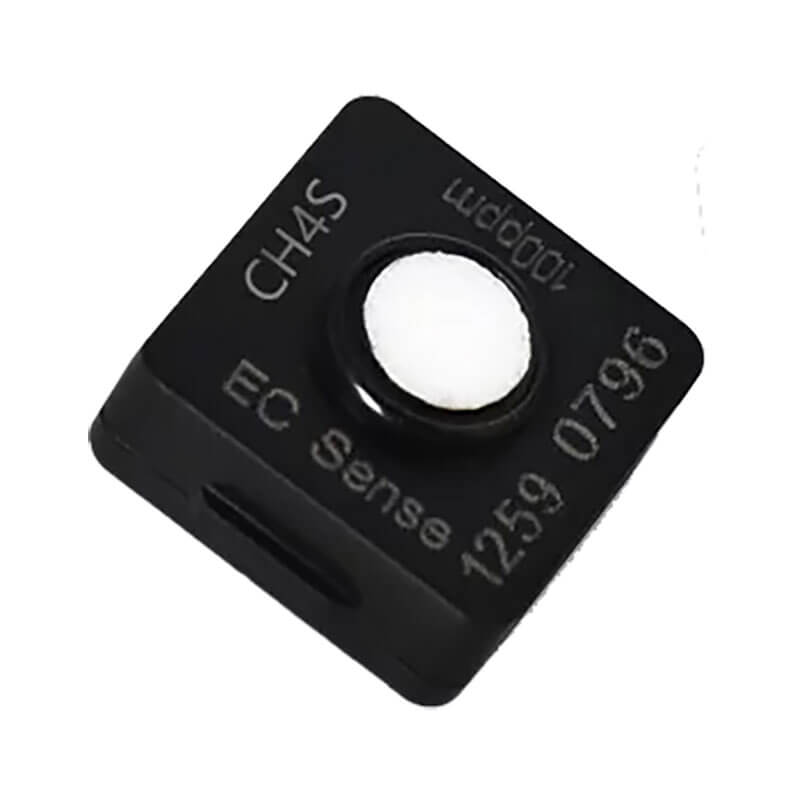

WatchGas SST1 Replacement CH4S Sensor SST-MM-RPL

$300.00

Ships in 2 - 3 weeks

Description

When your methanethiol sensor drifts, you don't replace the whole monitor. You swap the sensor cell.

That's the operational advantage of the serviceable WatchGas SST1 line. Traditional single-gas monitors are single-use — when the sensor reaches end-of-life or a bump test reveals unrecoverable drift, the whole unit gets discarded. The SST1 platform is designed to be maintained: this WatchGas Replacement CH4S Sensor drops into the WatchGas SST1-MM Serviceable CH4S Gas Detector and any WatchGas SST4-series multi-gas monitor configured with a CH4S sensor slot.

You can smell methanethiol before you can measure it — but you probably can't smell it accurately for long. Mercaptans are one of the gases most likely to cause olfactory fatigue: the nose adapts within minutes, and the same worker who alarmed at the smell 20 minutes ago may not notice steady exposure now. And in mixed industrial environments — natural gas processing, wastewater digesters, Kraft pulping, animal agriculture — the smell often gets misattributed to a natural gas leak rather than the specific methanethiol exposure a monitor would quantify. Sensor accuracy at the ceiling limits (OSHA 10 ppm, NIOSH 0.5 ppm) is what determines whether the monitor catches drift the nose is missing.

What this sensor is (and isn't):

It IS a factory replacement CH4S (methanethiol / methyl mercaptan) electrochemical sensor cell for the serviceable SST1-MM monitor and any WatchGas SST4-series multi-gas monitor configured with a CH4S sensor slot. Note that the SST4 platform's standard 4-gas sensor set is LEL/O2/CO/H2S — CH4S is a custom configuration on SST4 monitors, not the default.
It is NOT a standalone gas detection device. The sensor cell requires a compatible WatchGas SST monitor to function.
The WatchGas SST1 line does NOT include Limited-Life (2-year or 3-year alert-only) monitors for methanethiol, so — unlike H2S, CO, and O2 replacement sensors — there's no non-serviceable variant to exclude from the compatibility list.

About the sensor: solid polymer electrochemical technology, 0–100 ppm detection range, 1-year sensor warranty. The 1-year warranty is shorter than the 2-year standard on other WatchGas SST replacement sensors — mercaptan-tolerant electrochemical cells have shorter useful life across the industry because the cell chemistry is more susceptible to drift and cross-sensitivity with structurally similar sulfur compounds. Factor the shorter warranty into your fleet's replacement cadence.

When to replace a methanethiol sensor cell:

The sensor fails a bump test and won't recover on recalibration
Calibration drift exceeds acceptable tolerance across successive cal events, especially at the low ppm range where the NIOSH ceiling sits
The monitor displays a sensor fault code specific to the CH4S channel
The sensor's warranty period (1 year) has elapsed — for mercaptan sensors, proactive replacement at warranty end is often the right call given the shorter useful life
You're rotating a fleet's sensor generation on a proactive maintenance cadence — especially valuable in continuous-mercaptan environments (odorization plants, Kraft mills, biosolids digesters) where sensor drift can silently miss exposure events

Who buys the SST-MM-RPL:

Owners of the WatchGas SST1-MM serviceable methanethiol monitor whose current sensor has drifted, failed a bump, or reached end-of-warranty
Natural gas processing and odorization plant operators (methanethiol is added to natural gas as a safety odorant — accurate on-site monitoring at odorization stations is a chronic requirement)
Petroleum refinery operators handling sour crude with thiol contaminants, or running mercaptan-removal units
Kraft pulp and paper mill supervisors (methanethiol is a Kraft process byproduct alongside H2S and dimethyl sulfides)
Wastewater treatment operators, especially at biosolids digesters and downwind of digester emissions
Animal agriculture facility managers (dairy and hog operations) with community-emissions exposure concerns
Landfill operators with active gas capture and flaring systems
Rendering plants and other biological-waste-processing facilities

Sensor specifications:

Gas	Range	Sensor technology	Warranty	Compatible monitors
CH4S (methanethiol / methyl mercaptan)	0–100 ppm	Solid polymer electrochemical (dry-cell)	1 year	SST1-MM, SST4-series (with CH4S sensor slot)

Key features:

High accuracy across the 0–100 ppm detection range
1-year operational warranty (specialty-cell chemistry)
Ultra-low power consumption (optimized for battery-operated and IoT-integrated monitors)
High precision at low methanethiol concentrations — critical for NIOSH REL-aligned monitoring (0.5 ppm ceiling)
No zero drift
Silicone-resistant (no poisoning by common industrial silicone contaminants)
Direct linearity across the detection range
High temperature range tolerance

PK Safety services the full WatchGas SST line with factory-trained technicians in-house. If you'd rather send the monitor to us for sensor replacement than swap the cell yourself, we handle that in-house — full swap, calibration verification against a certified methanethiol standard, and return-to-service. We also service BW/Honeywell (Factory Authorized Service Center), RKI, and RAE Systems monitors — one shop for a mixed-brand fleet's sensor lifecycle. Call us at 800.829.9580 to talk through your methanethiol sensor replacement workflow with someone who understands the SST platform and specialty gas monitoring.

Technical documents (WatchGas SST1):

SST1 Brochure

Part Number: WG01-SST-MM-RPL — WatchGas Replacement CH4S (Methanethiol) Sensor (1-year warranty)

Frequently Asked Questions

Which WatchGas monitors is the SST-MM-RPL sensor compatible with?

The SST-MM-RPL is compatible with:

SST1-MM Serviceable CH4S Gas Detector — the single-gas methanethiol monitor is designed around this sensor
WatchGas SST4-series multi-gas monitors only when custom-configured with a CH4S sensor slot

The SST4 platform's standard 4-gas sensor set is LEL/O2/CO/H2S. CH4S is a specialty configuration — usually ordered for Kraft mill or natural-gas-odorization work where methanethiol monitoring is a primary requirement. If your SST4 has the standard config, this sensor won't fit. Call PK Safety at 800.829.9580 with your monitor's serial number to confirm your SST4's sensor slots.

Unlike H2S, CO, and O2, there's no Limited-Life (2-year or 3-year alert-only) methanethiol monitor in the SST1 line to exclude from compatibility — the SST1-MM serviceable is the only methanethiol monitor in the WatchGas SST catalog.

Why is the SST-MM-RPL priced higher than the other RPL sensors?

The SST-MM-RPL is $300 — compared to $160 for the H2S, CO, O2, H2, and PH3 replacement sensors, and $180 for the SO2 sensor. Two reasons:

Specialty cell chemistry. Methanethiol is a reactive sulfur compound. Building an electrochemical cell that responds accurately to CH4S without cross-sensitivity to H2S, dimethyl sulfide, dimethyl disulfide, and other structurally similar mercaptans present in Kraft mills, refineries, and wastewater digesters requires more specialized materials and manufacturing than a standard toxic-gas sensor. The unit cost reflects that.
Lower-volume production. Methanethiol monitoring is a specialty need across the safety industry — many fewer sensors are produced per year than for H2S or CO. Lower volume means higher per-unit cost.

Compared to a full new SST1-MM monitor at $460, the $300 sensor swap still saves you $160 (about 35% of the full-monitor price) — meaningful in a fleet context.

Why is the SST-MM-RPL warranty only 1 year (vs 2 years on other RPL sensors)?

Mercaptan-tolerant electrochemical cells have shorter useful life across the safety industry — not a WatchGas defect. The cell chemistry is more susceptible to drift and cross-sensitivity because sulfur-containing compounds are chemically reactive and the sensor is designed to detect them without over-responding to similar sulfur species.

Factor the 1-year warranty into your fleet's replacement cadence. For continuous-methanethiol environments (odorization plants, Kraft mills, biosolids digesters), a 12-month proactive replacement schedule is a reasonable default; less-continuous exposure environments may run the sensor 12–18 months and calibrate frequently.

Can I detect methanethiol by smell instead of relying on the sensor?

Methanethiol is one of the most-smellable gases in industrial hygiene — detectable at parts per billion, far below both OSHA's 10 ppm ceiling and NIOSH's 0.5 ppm ceiling. So workers absolutely CAN smell it before the exposure limit. But there are three practical problems with relying on smell:

1. Olfactory fatigue. Mercaptans are one of the gases most likely to cause the nose to adapt within minutes. A worker who smelled it strongly on entry may not notice continued exposure 20 minutes later.

2. Odorant misattribution. Methanethiol is added to natural gas as a safety odorant. Workers in natural-gas-adjacent environments may perceive a methanethiol smell as "a natural gas leak somewhere" rather than a specific methanethiol exposure they need to measure.

3. Ceiling-limit dynamics. Both OSHA and NIOSH set CEILING limits for methanethiol (not TWAs). That means exposure at the limit is a compliance failure the instant it happens — not something you average across an 8-hour shift. A monitor gives you the ppm reading; smell doesn't.

Can I install the SST-MM-RPL myself, or do I need to send the monitor to PK Safety?

Both paths work. The SST1 platform is designed for user sensor replacement — the sensor cell is accessed through the monitor's service compartment, and the WatchGas SST1 manual walks through the swap procedure. After installation, you'll need to complete a full calibration to verify the new sensor's response against a known methanethiol standard.

Methanethiol cal gas is a specialty item — corrosive, reactive, and typically not held on-site outside of specialty-gas-monitoring facilities. If you don't have methanethiol cal gas in your calibration workflow, sending the monitor to PK Safety for the swap and calibration verification is often the more practical path. We stock the appropriate cal gas and can verify the sensor's response before returning the monitor to service.

Should I replace the sensor or buy a new SST1-MM monitor?

The SST-MM-RPL sensor cell costs $300. A full new SST1-MM monitor costs $460. Sensor swap saves you $160 — about 35% of the full-monitor price for the maintenance action.

The sensor replacement is the more cost-effective path when your monitor's housing, display, battery, and electronics are in good working order. Full-monitor replacement makes more sense when the monitor itself is aging, has physical damage, or has a battery no longer holding charge — and a full new monitor also comes with the 3-year instrument warranty on the electronics (not just the sensor).

Call PK Safety at 800.829.9580 with your monitor's condition and use pattern (continuous vs. intermittent methanethiol environment) and we'll walk you through the choice.

Not sure whether your SST4 has a CH4S sensor slot, or whether a sensor swap or full monitor replacement is the right path? Call PK Safety at 800.829.9580. A person who knows methanethiol monitoring and the SST platform's service ecosystem will pick up.
