RKI Instruments  |  SKU: RKI01-66-6193-10

RKI VOC Pro (10.6 eV PID) High Range Sensor/Transmitter

$2,801.25

Ships in 6 - 8 weeks

Description

RKI VOC Pro Series (10.6 eV PID) High Range Sensor/Transmitter with j-box is a 3-wire explosion proof VOC gas detector that uses a PID sensor to detect a variety of gases. Wired power (12 to 35 VDC) with 4-20 mA analog and RS-485 Modbus outputs are standard. Magnetic switches allow for non-intrusive calibration while in the field as well as full system settings and diagnostics.

Please call Customer Service at 800-829-9580 if you have questions in choosing the correct product.

Designed to work with all RKI Beacon controllers, as well as most DCS / PLC systems: Beacon 110, Beacon 200, Beacon 410, or Beacon 800 Controllers.

Applications: Petrochemical plants, Refineries, Water & wastewater treatment plants, Pulp & paper mills, Manufacturing facilities, Automotive, Semiconductor plants, Chemical plants

Key Features:

  • PID sensor options: 10.6 eV ppm Wired power (3-Wire), 12 to 35 VDC operating voltage Operating temperature range -40°C to +54°C Graphical LCD with LED backlight 3 Push-button interface (ADD, MENU, SUB) with corresponding magnetic, non-intrusive switches 2 Individually configurable alarms 2 Front panel LED indicators (amber and red) 2 Optional fully programmable alarm relays (dry contacts) Output options: 4-20mA (3-wire) analog, RS-485 modbus (4 wire) 1-Year warranty (see specifications)

Specification Sheet:

Specification Sheet

Manual:

Manual

Part Numbers:
66-6193-10 - 0-100 ppm
66-6193-50 - 0-500 ppm
66-6193-2K - 0-2000 ppm

Related Searches
Fixed Gas Detectors, Gas Detection

Specifications

  • Product Weight (lbs.)
    6
  • Height (in.)
    7
  • Length (in.)
    5.5
  • Width (in.)
    6
  • Warranty Info
    1 Year Warranty

Reviews (0)

Keep your team protected & compliant!

  • Expert guidance tailored to your specific needs
  • Access responsive customer support when you need it
  • Enjoy fast shipping directly to your location
  • Benefit from extensive industry knowledge—75+ years of experience
  • In-house gas detection calibration & repair services available

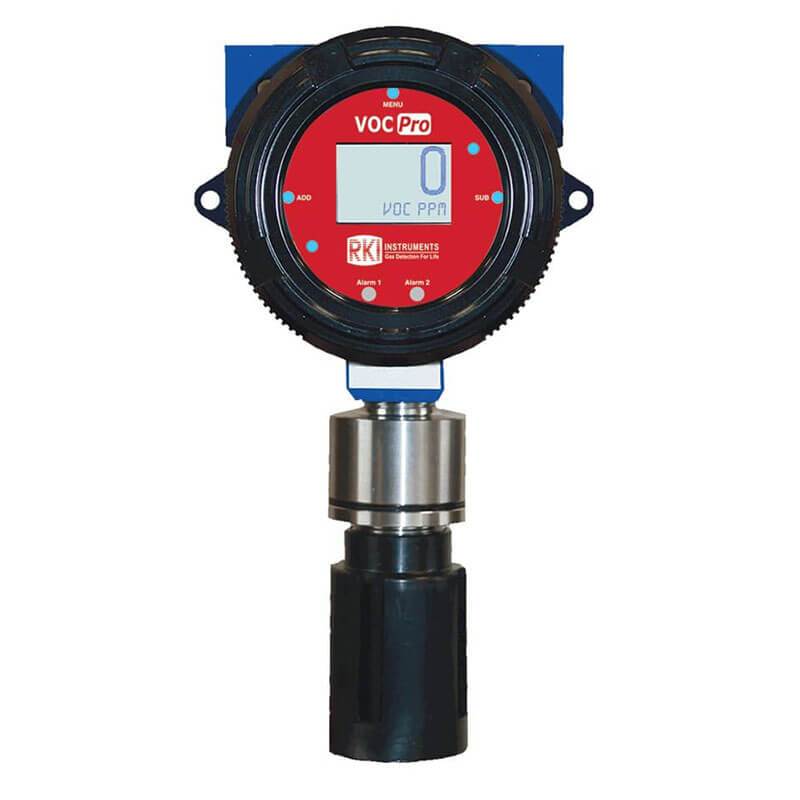

The RKI VOC Pro (10.6 eV PID) High Range Sensor/Transmitter by RKI Instruments is a sturdy digital gas detector designed to be explosion-proof. It features a circular display indicating "0 VOC PPM" with black and red highlights, and it incorporates a precision PID sensor within a cylindrical bottom structure.
RKI Instruments

RKI VOC Pro (10.6 eV PID) High Range Sensor/Transmitter

$2,801.25

RKI VOC Pro Series (10.6 eV PID) High Range Sensor/Transmitter with j-box is a 3-wire explosion proof VOC gas detector that uses a PID sensor to detect a variety of gases. Wired power (12 to 35 VDC) with 4-20 mA analog and RS-485 Modbus outputs are standard. Magnetic switches allow for non-intrusive calibration while in the field as well as full system settings and diagnostics.

Please call Customer Service at 800-829-9580 if you have questions in choosing the correct product.

Designed to work with all RKI Beacon controllers, as well as most DCS / PLC systems: Beacon 110, Beacon 200, Beacon 410, or Beacon 800 Controllers.

Applications: Petrochemical plants, Refineries, Water & wastewater treatment plants, Pulp & paper mills, Manufacturing facilities, Automotive, Semiconductor plants, Chemical plants

Key Features:

Specification Sheet:

Specification Sheet

Manual:

Manual

Part Numbers:
66-6193-10 - 0-100 ppm
66-6193-50 - 0-500 ppm
66-6193-2K - 0-2000 ppm

Related Searches
Fixed Gas Detectors, Gas Detection

Measuring Range

  • 0 - 100 ppm
  • 0 - 500 ppm
  • 0 - 2000 ppm
