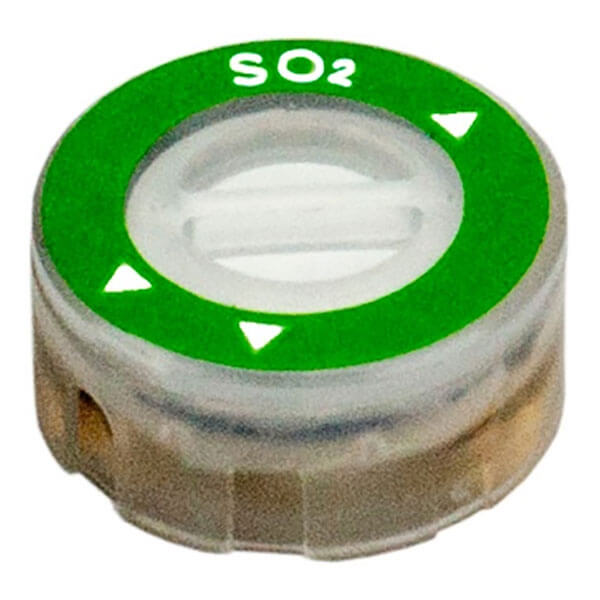

RKI Replacement SO2 Sensor ESR-A13D-SO2
Description
The RKI ESR-A13D-SO2 is a replacement sulfur dioxide (SO2) electrochemical sensor for the GX-3R Pro 5-gas confined space monitor and the SC-04 Series SO2 single-gas monitor. The SO2 sensor detects sulfur dioxide in the range of 0 to 100 ppm.
Important: When replacing the sensor on a GX-3R Pro, the instrument firmware must be updated to recognize the new sensor configuration. Use the USB/IrDA downloading cable and follow RKI's IrDA Reprogramming instructions at rkiinstruments.com/download/gx3r-reprograming/.
Compatible Instruments:
-
RKI GX-3R Pro 5-Gas Confined Space Monitor (firmware update required)
- RKI SC-04 Series SO2 Single Gas Monitor
Sensor Specifications:
- Target Gas: Sulfur Dioxide (SO2)
- Detection Principle: Electrochemical
- Detection Range: 0 ~ 100 ppm
SC-04 Manual (covers sensor replacement procedure):
Part Number:
ESR-A13D-SO2
Related Searches
Gas Detection, Single-Gas Monitors
Frequently Asked Questions
Which monitors is the ESR-A13D-SO2 sensor compatible with?
The ESR-A13D-SO2 replacement sensor is compatible with the RKI GX-3R Pro and the SC-04 Series SO2 single-gas monitor. The sensor detects sulfur dioxide in the range of 0 to 100 ppm using an electrochemical detection principle.
Is a firmware update required when installing the ESR-A13D-SO2?
Yes, when replacing the sensor on a GX-3R Pro. The GX-3R Pro firmware must be updated to recognize the new sensor channel configuration. This is done using the USB/IrDA downloading cable and following RKI's IrDA Reprogramming instructions. The SC-04 Series monitor does not require a firmware update for sensor replacement.
How do I install the ESR-A13D-SO2 replacement sensor?
Remove the rubber boot and open the sensor access cover on the GX-3R Pro or SC-04. Align the replacement sensor module and seat it firmly. If installing on a GX-3R Pro, update the firmware using the IrDA cable before returning the instrument to service. Perform a fresh two-point calibration after installation and confirm alarm setpoints.
How often should the SO2 sensor be replaced?
Electrochemical SO2 sensors typically have a service life of 2 to 3 years under normal operating conditions. Frequent exposure to high SO2 concentrations can shorten sensor life. Calibrate your instrument every 90 days to detect sensor drift before it affects alarm accuracy.
Who performs replacement and service on RKI instruments with SO2 sensors?
PK Safety is an RKI Factory Authorized Service Center with the expertise to replace SO2 sensors, update instrument firmware, and validate performance before returning your instrument to service. We also service the full RKI portable and fixed monitor product line. Contact us at 800.829.9580.
Read more
