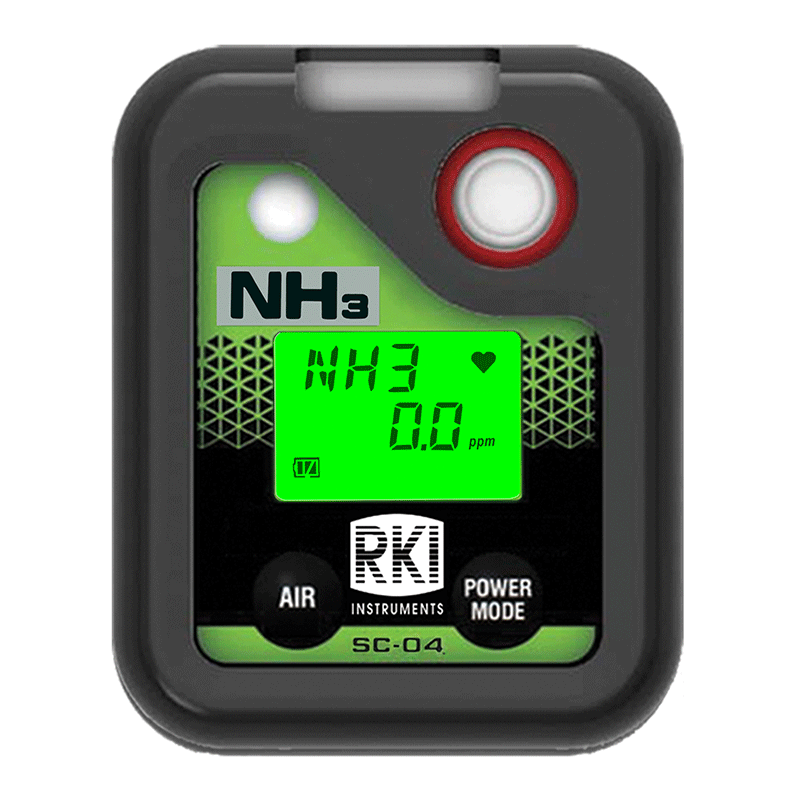

RKI Instruments SC-04 Series NH3 Single Gas Monitor 73-0077
Description
RKI Instruments SC-04 Series NH3 Single Gas Monitor is a single-gas toxic personal monitor designed to operate for many years with field replaceable sensors and filters. With a protective rubber boot and an IP-67 rating, the SC-04 is built for long-term use in demanding industrial environments.
Applications: Hazardous material response, Mining, Refineries/petrochemical, Water/wastewater treatment, Pharmaceuticals, Utilities, Chemical plants, Fire Services
Key Features:
- Personal monitoring for NH3 (ammonia)
- Operates 3,000 hours on replaceable alkaline batteries
- Digital LCD readout
- Easy power on/off via single Power Mode button
- Pocket size: 2.1"(W) x 2.6"(H) x 0.9"(D)
- Lightweight: 2.8 ounces
- Impact, dust, and water resistant (IP-67)
- Replaceable rubber boot

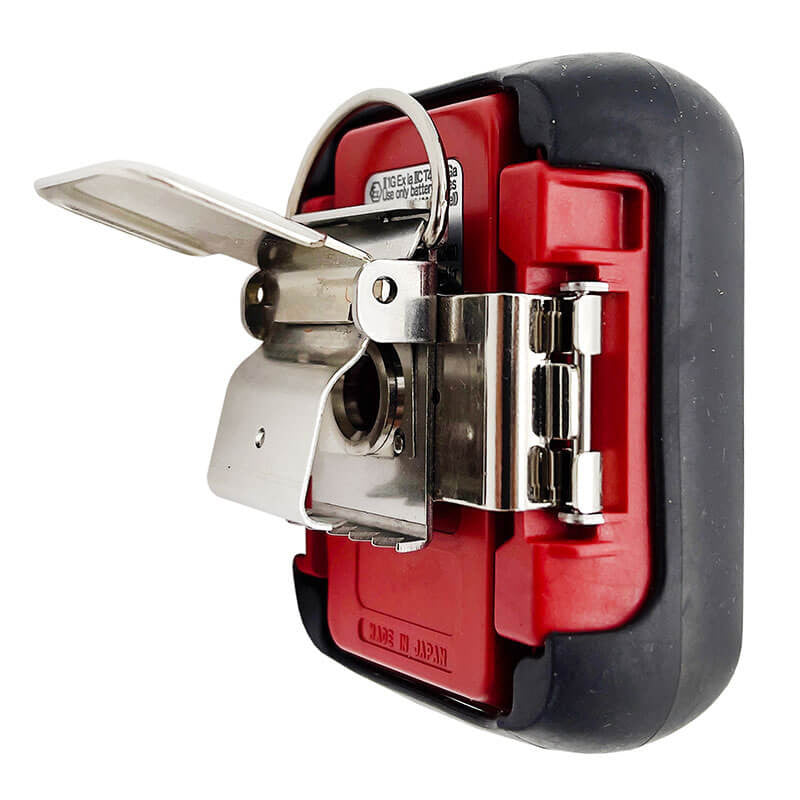

- Alligator clip with 360° rotation
- Data log: 10 to 600 hours with adjustable intervals
- Audible / visual / vibration alarms
- Automatic backlight
- Low battery alarm
- Intrinsically safe, ATEX and C/US approvals
- 1-year warranty
Specifications:
- Gas Detected: Ammonia (NH3)
- Detection principle: Electrochemical
- Detection range: 0 ~ 400.00 ppm (0.5 ppm resolution)
- Alarm set points: 1st: 0.05 ppm, 2nd: 2.00 ppm, 3rd: 4.00 ppm, TWA: 25 ppm, STEL: 35 ppm
- Alarm types: Gas alarms: 1st, 2nd, and 3rd (user adjustable), OVER alarm, STEL and TWA; Trouble alarms: Sensor connection, low battery, circuit failure, and calibration range error
- Gas sampling: Diffusion
- Response time: T90 in 10 seconds
- Accuracy: ± 10% of reading or ± 5% of full scale (whichever is greater)
- Data logging: 10-second intervals = 5 hours; 5-minute intervals = 150 hours; 10-minute intervals = 300 hours. Records alarms, alarm trends, gas readings, calibration & bump test history, instrument information and settings.
- Continuous operation: 3,000 hours on alkaline dry cell (at 25°C, no backlight)
- Safety rating: ATEX/IECEx approved; QPS classified C/US intrinsically safe, Class I, Division 1, Groups A, B, C, D
- Enclosure: IP-67 dust and water resistant
- Display: Digital LCD readout, gas name & concentration, auto backlighting during alarm, battery icon
Monitor Includes:
- Rubber protective boot
- Alkaline batteries (2-AAA size)
- Alligator clip
- Data log software
Optional Accessory: Downloading cable / USB–IrDA adapter
SC-04 Manual:
04 Series User Setup Program Operator's Manual:
04 Series Data Logger Management Program Operator's Manual:
Part Number:
73-0077
Related Searches
Gas Detection, NH3 Gas Monitors, Single-Gas Monitors
Frequently Asked Questions
What is the detection range of the SC-04 NH3 monitor?
The SC-04 NH3 detects ammonia from 0 to 400.00 ppm at 0.5 ppm resolution. Alarm setpoints are preset at 0.05 ppm (1st alarm), 2.00 ppm (2nd alarm), and 4.00 ppm (3rd alarm). TWA is 25 ppm and STEL is 35 ppm, consistent with OSHA's permissible exposure limit for ammonia in general industry.
What industries commonly need NH3 personal monitors?
Ammonia is a refrigerant in food processing, cold storage, and large HVAC systems; a feedstock in agricultural chemical manufacturing; and a byproduct in wastewater treatment. Workers in refrigerated warehouses, fertilizer plants, and treatment facilities use personal NH3 monitors to maintain exposures within OSHA's permissible exposure limit.
How long does the SC-04 NH3 run on batteries?
Two standard AAA alkaline batteries provide up to 3,000 hours of continuous operation at 25°C without the backlight. Batteries are user-replaceable in the field with no tools. The instrument emits a low-battery alarm before power is lost.
Is the RKI SC-04 NH3 intrinsically safe?
Yes. The SC-04 NH3 carries ATEX/IECEx certification and is QPS classified as intrinsically safe, Class I, Division 1, Groups A, B, C, D under C/US. The IP-67 rated enclosure resists dust and water immersion, making it suitable for wet industrial environments where ammonia is present.
How does the SC-04 NH3 compare to other SC-04 family monitors?
The physical housing, battery platform, data logging architecture, and alarm structure are identical across the SC-04 family. The NH3 variant uses an electrochemical sensor tuned for ammonia with a T90 response time of 10 seconds. Note that the NH3 variant carries a 1-year warranty on the sensor (versus a 3-year warranty on select other SC-04 gases such as HCN)—confirm warranty details with PK Safety at 800.829.9580.
