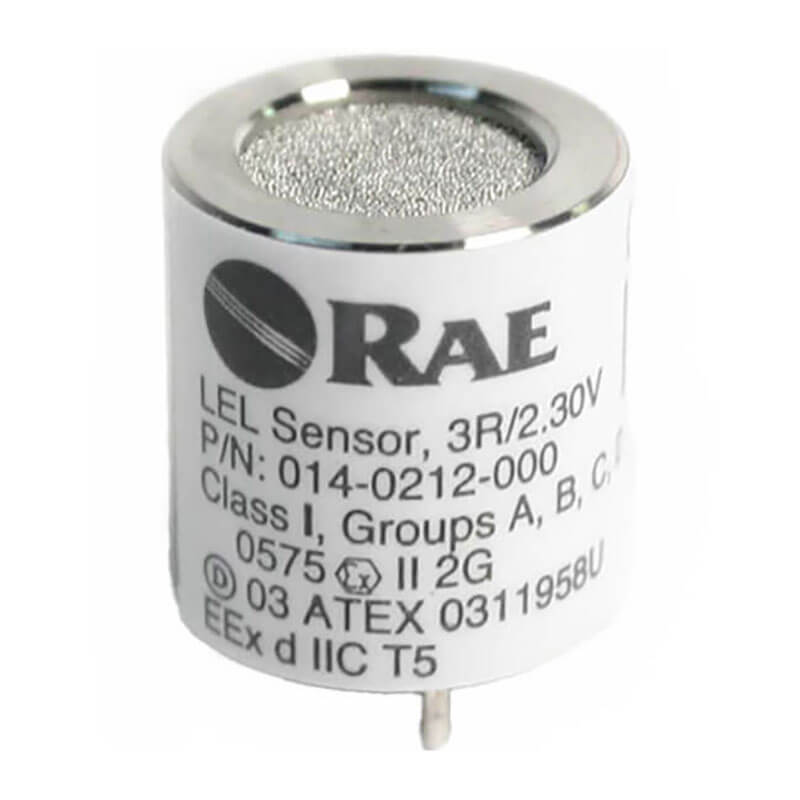

RAE Systems LEL Replacement Sensor 014-0212-000
Description
This combustible gas sensor is a replacement cell for the RAE Systems QRAE 3 multi-gas monitor. 014-0212-000 reads 0 to 100 percent of the lower explosive limit and carries a 2-year warranty. Replace it when the LEL channel will not calibrate, drifts, or shows a sensor error, especially after any suspected exposure to sensor poisons.
Fit and Specifications
- LEL replacement sensor, part number 014-0212-000
- Range: 0 to 100% LEL
- Fits the QRAE 3 pumped and diffusion configurations
- 2-year warranty
- Replaces only the LEL cell; other channels are unaffected
Compatibility and Ordering
Match the part number (014-0212-000 (2 year warranty)) to the part you are replacing, and confirm your monitor model before you order. Buyers of this LEL sensor already own QRAE 3, so the fastest check is the model label on the back of the unit. If the label is worn or the unit is an older or modified configuration, call us with the serial number and we will verify fit against the QRAE 3 before anything ships.
Bump test the monitor after any repair or consumable change, and calibrate per the manufacturer's instructions and your site procedure.
PK Safety is a Factory Authorized RAE Systems Service Center with in-house technicians, so this LEL sensor ships from the shop that services your monitor. Questions on fit or quantity? Call 800.829.9580.
Part Number:
014-0212-000 (2 year warranty)
Frequently Asked Questions
How does the LEL sensor work?
It is a catalytic bead. One bead oxidizes combustible gas and heats up; the reference bead does not. The resulting temperature difference becomes an LEL reading. Silicones, high-sulfur gases, and prolonged high-gas exposure shorten its life.
When should I replace the LEL sensor?
Replace it when it will not calibrate, drifts rapidly, fails bump tests, or shows a sensor fault, and after any suspected exposure to silicone sprays or sealants. Fleets plan replacement around the 2-year warranty window.
Is 014-0212-000 compatible with my QRAE 3?
Yes, this is the RAE Systems LEL replacement sensor for the QRAE 3. For an older or modified QRAE 3, call us with the serial number and we will verify fit.
Do I need to recalibrate after installing it?
Yes. Install the sensor, let the monitor warm up and stabilize, then calibrate the LEL channel with the manufacturer-specified gas per the instructions and your site procedure.
