SKU: RAE01-M031-1111-200

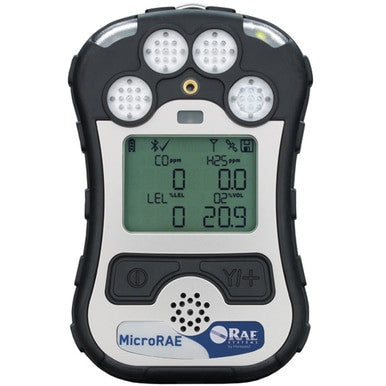

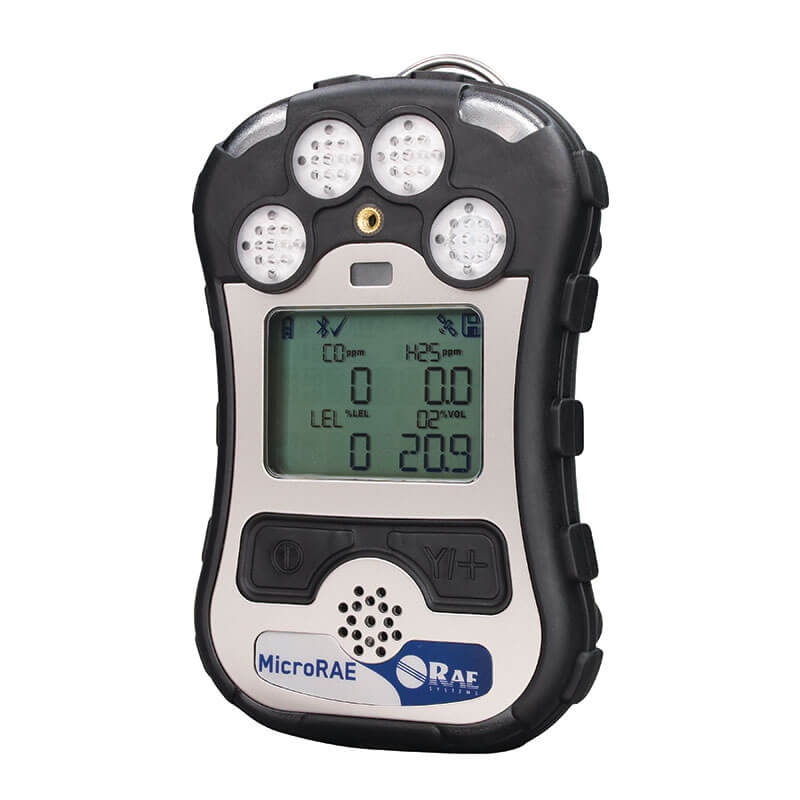

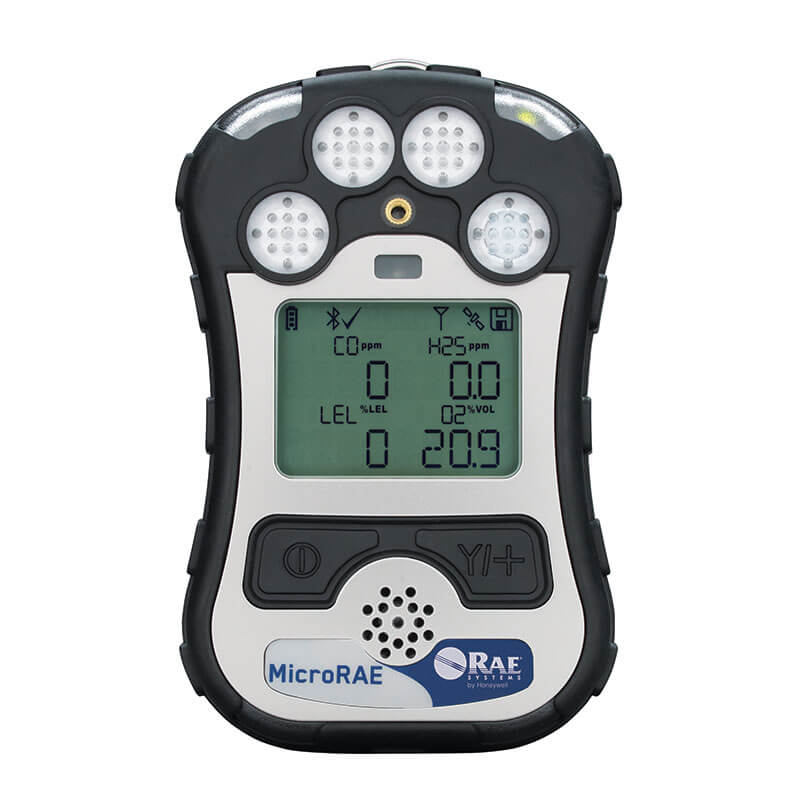

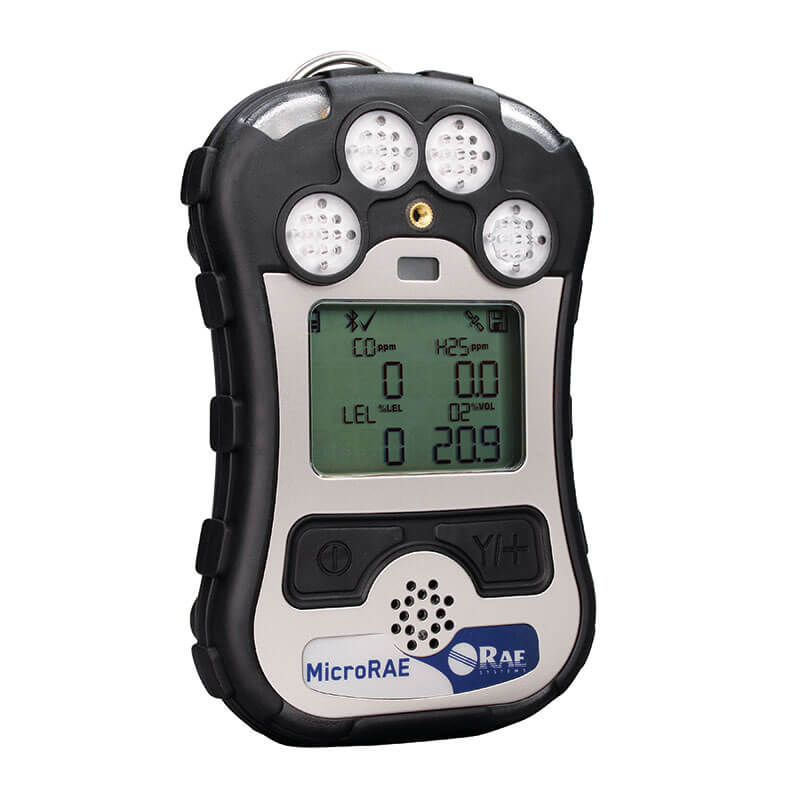

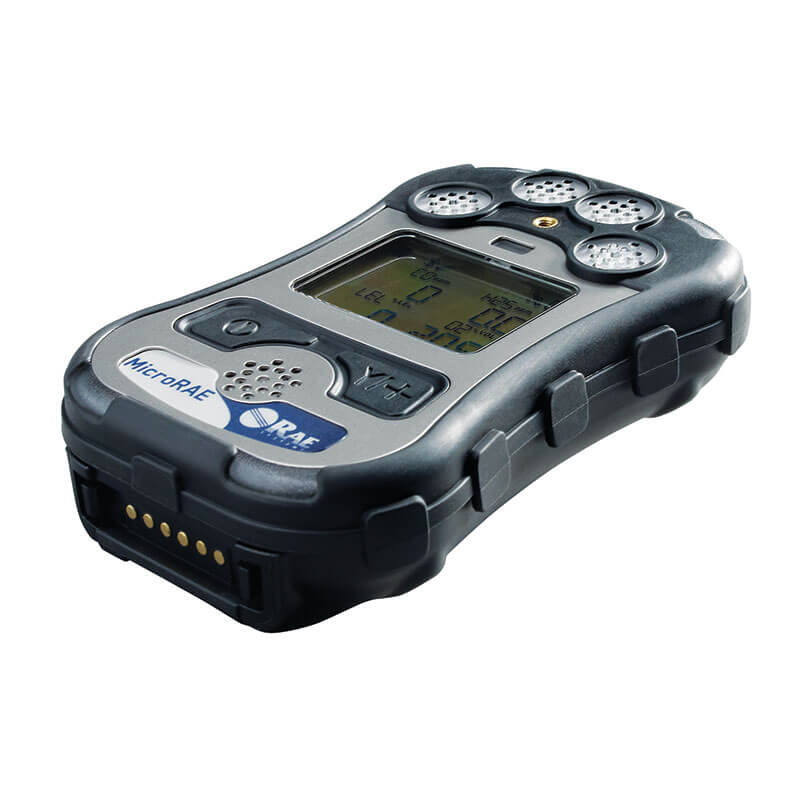

MicroRAE 4-Gas Diffusion Monitor M031-1111-200

$1,083.93

Ships in 8 - 10 weeks
Click Here to Request a Quote!

Brand Logos of companies we work with: Chubb, Hyundai, Praxair, and others on a white background.

We proudly serve diverse industries including construction, oil and gas, confined space operations, manufacturing, and more. Contact our California-based safety experts or give them a call for personalized guidance on your safety needs.

Description

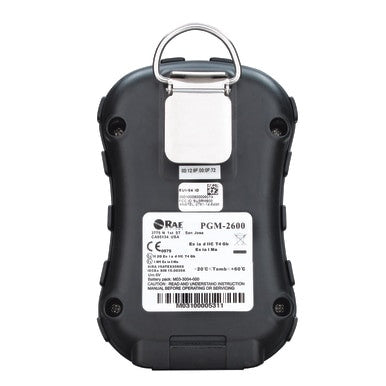

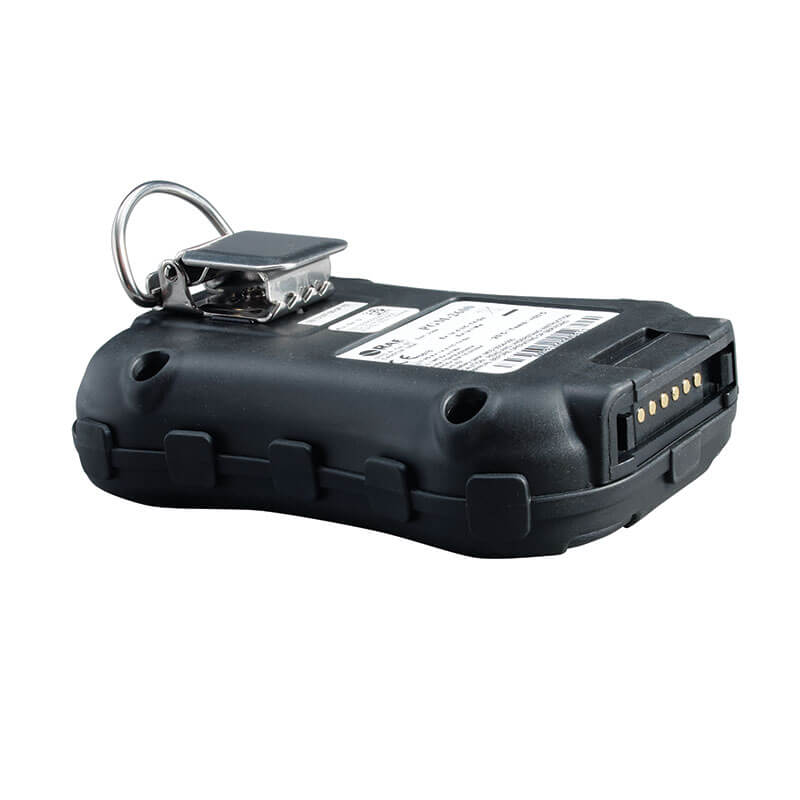

The RAE Systems MicroRAE (PGM-2600, part M031-1111-200) is a compact wireless four-gas diffusion monitor that streams H2S, CO, O2, and LEL readings and alarm status to the Honeywell ConneXt Safety Ecosystem in real time. It is the right pick when a safety officer needs continuous visibility into every monitor on site — fenceline, confined-space entry, fire overhaul, or a plant turnaround — without pulling radios off a crew. Compact (clips to a chest strap), rechargeable Li-ion, Bluetooth low-energy for smartphone pairing, and compatible with the AutoRAE 2 docking station for fleet bump and cal. Compare the full Multi-Gas Monitors family for pumped alternatives.

Specifications

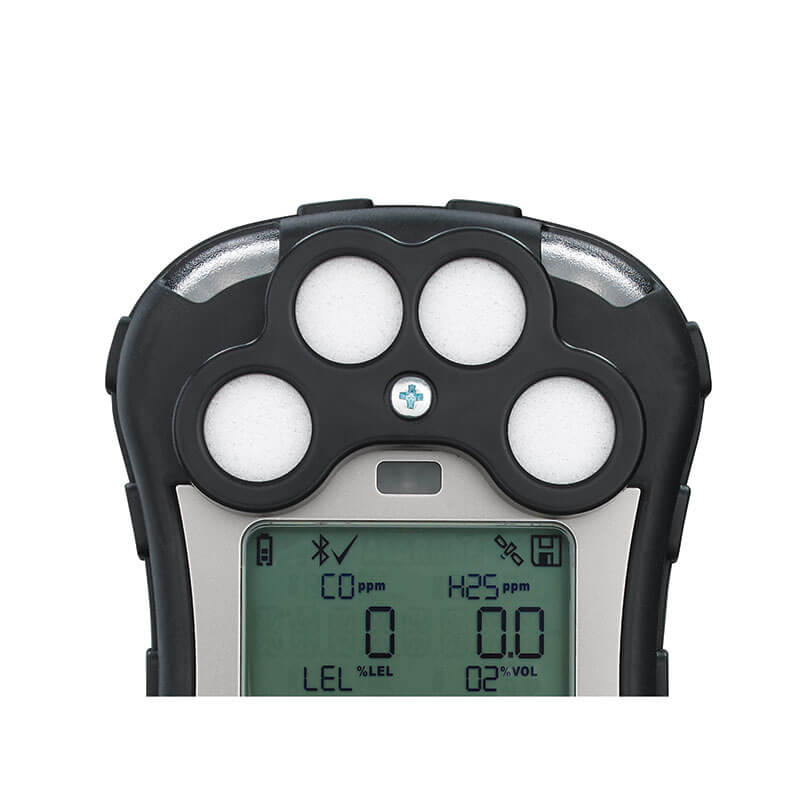

  • Sensors: H2S, CO, O2, LEL (filtered LEL options available to inhibit sensor poisoning)
  • Sampling: diffusion (no pump); personal-wear form factor
  • Wireless: Mesh and Wi-Fi configurations for Honeywell ConneXt; Bluetooth low-energy for smartphone configuration and uplink
  • Battery: rechargeable Li-ion
  • Alarms: five-way local and remote (audible, visual, vibratory, local Man Down, remote wireless notification)
  • Housing: IP-67 water- and dust-resistant; concussion-proof
  • Data logging on-board; short bump test and calibration cycle time
  • Optional GPS module for location-tagged readings
  • Fully automated bump testing and calibration with the AutoRAE 2
  • Global approval set — CSA, ATEX, and IECEx intrinsic-safety markings for Class I Division 1 and Zone 0 hazardous locations (confirm label marking)

Applications

  • Emergency response and fire overhaul
  • Fracking, plant shutdown, and turnaround
  • Residential fire-service response
  • Urban search & rescue
  • Oil & gas fenceline and midstream monitoring

Compatibility and Service

PK Safety is a RAE Systems Factory Authorized Service Center. Our in-house RAE technicians calibrate, bump test, and repair the MicroRAE at our Alameda, California service lab. We also service BW Technologies by Honeywell, RKI Instruments, and WatchGas monitors — a mixed fleet can be sent in one shipment. Call 800.829.9580 for sensor-configuration questions, service scheduling, or sizing help.

Part Number:
M031-1111-200 — Monitor as specified above

MicroRAE Brochure

Brochure

Frequently Asked Questions

How does the MicroRAE connect to the Honeywell ConneXt platform?

The MicroRAE ships with a built-in mesh radio and (depending on configuration) Wi-Fi support that register the instrument with the Honeywell ConneXt Safety Ecosystem. Once registered, readings, alarms, Man Down status, and GPS location (with the optional GPS module) are visible to a safety officer on the ConneXt dashboard in real time. Bluetooth low-energy also pairs the monitor to a smartphone for configuration and local data uplink.

What four gases does the MicroRAE M031-1111-200 measure?

H2S (0 to 100 ppm), CO (0 to 500 ppm), O2 (0 to 30% vol), and LEL combustibles on a filtered catalytic sensor (0 to 100% LEL). The filtered LEL option is designed to inhibit poisoning from silicones and sulfur compounds commonly found in oil & gas environments.

Is the MicroRAE intrinsically safe for Class I Division 1?

Yes. The MicroRAE carries CSA, ATEX, and IECEx intrinsic-safety approvals for Class I Division 1 Groups A, B, C, D (and Zone 0 markings for international deployment). Confirm the specific marking on the instrument label matches your area classification before entry; call 800.829.9580 if you need the current approval sheet.

How often should the MicroRAE be bump tested and calibrated?

Follow OSHA Safety and Health Information Bulletin SHIB 09-30-13, which calls for a functional bump test with a known concentration of target gas before each day's use on any portable gas monitor and a full calibration whenever a bump test fails, after a sensor change, or on RAE's recommended 180-day interval. The AutoRAE 2 docking station automates both bump and calibration for a MicroRAE fleet in minutes.

What calibration gas and accessories does the MicroRAE use?

A standard confined-space 4-gas mix (50% LEL methane, 18% O2, 10 ppm H2S, 50 ppm CO) in a 34L cylinder with a RAE fixed-flow regulator and the calibration adapter that ships with the instrument. The AutoRAE 2 docking station, replacement sensors, Li-ion batteries, and ConneXt-platform licensing are stocked under Gas Detector Accessories.

Who services and repairs the MicroRAE and the ConneXt uplink?

PK Safety is a RAE Systems Factory Authorized Service Center. Our in-house RAE technicians handle sensor replacement, battery service, radio pairing, firmware updates, and full calibration from our Alameda, California shop. Call 800.829.9580 to open a service ticket or help onboarding the MicroRAE onto the ConneXt platform.

Related Searches
RAE Systems, Gas Detection, Multi-Gas Monitors, Confined Space, Calibration Gas, Gas Detector Accessories

Specifications
  • Type
    Multi-Gas
  • Gas Type
    %LEL/O2/H2S/CO
  • Color
    Black
  • Product Weight (lbs.)
    0.5
  • Height (in.)
    7
  • Length (in.)
    10
  • Width (in.)
    7
  • Country of Origin
    CN
