Frontline Confined Space MEGA Davit Arm System w/Wall Mount

Please call us at 800-829-9580 for a shipping estimate and to place your order. Due to the size/weight of this system, it does not qualify for free shipping.

Frontline Confined Space MEGA Davit Arm System with Wall Mount provides a safe and secure system designed for easy access to confined spaces. Features a cantilever boom equipped with a universal mounting bracket for easy and quick installation of a winch. Optional 3-way retrieval fall arrest block can be installed using an included specialized mounting bracket on the system's column for the easy retrieval of users and to arrest any falls, ensuring safety during all the confined space and rescue operations.

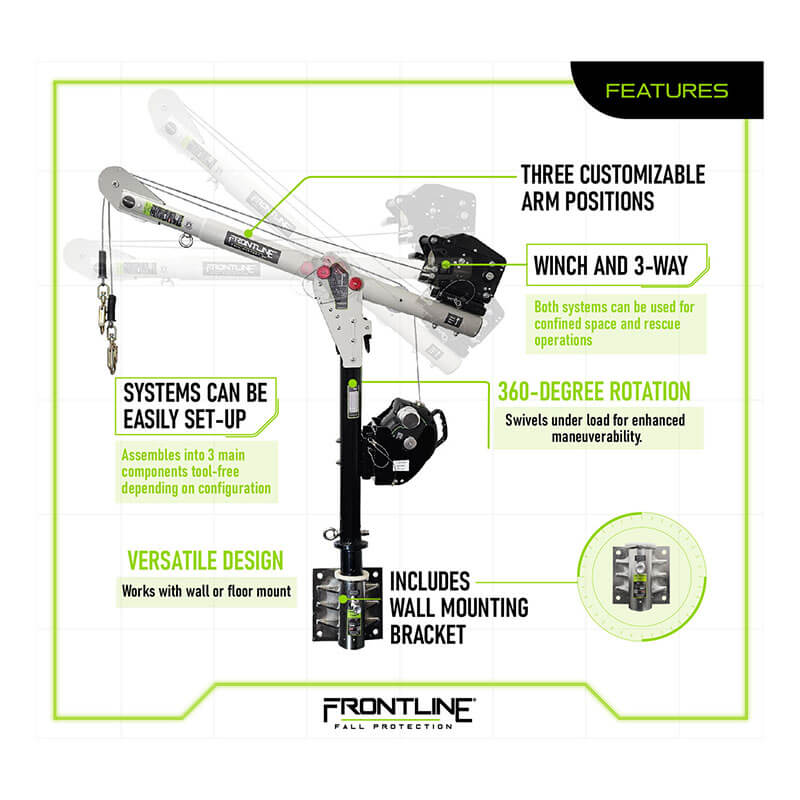

Key Features:

• Easy Assembly and Transport: The davit system conveniently is assembled into three main components for efficient storage, transportation, and setup, requiring no tools for assembly
• Versatile Modular Design: Its modular design allows compatibility with for fixed floor and wall mounts, depending on the application
• Adjustable Height Options: The cantilever arm includes three adjustable positions, enabling users to customize the height according to specific requirements
• Multiple Anchorage Points: The system features multiple anchorage points, ensuring safety and reliability during descend/retrieval, fall arrest and rescue operations
• 360-Degree Swiveling Capability: The davit column assembly includes an integrated swivel feature, allowing it to rotate up to 360 degrees under load by simply removing the provided locking pin
• Pre-Installed Mounting Brackets: The system comes with two pre-installed lower mounting bracket assemblies for the seamless installation of a winch and retrieval systems

Part Numbers:

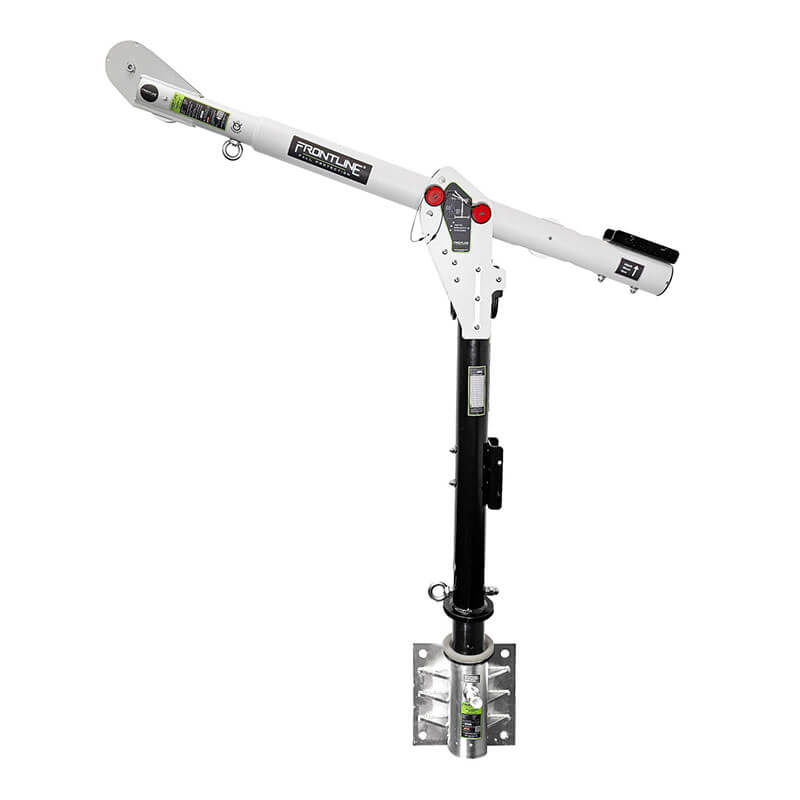

DAC-WL - Davit System

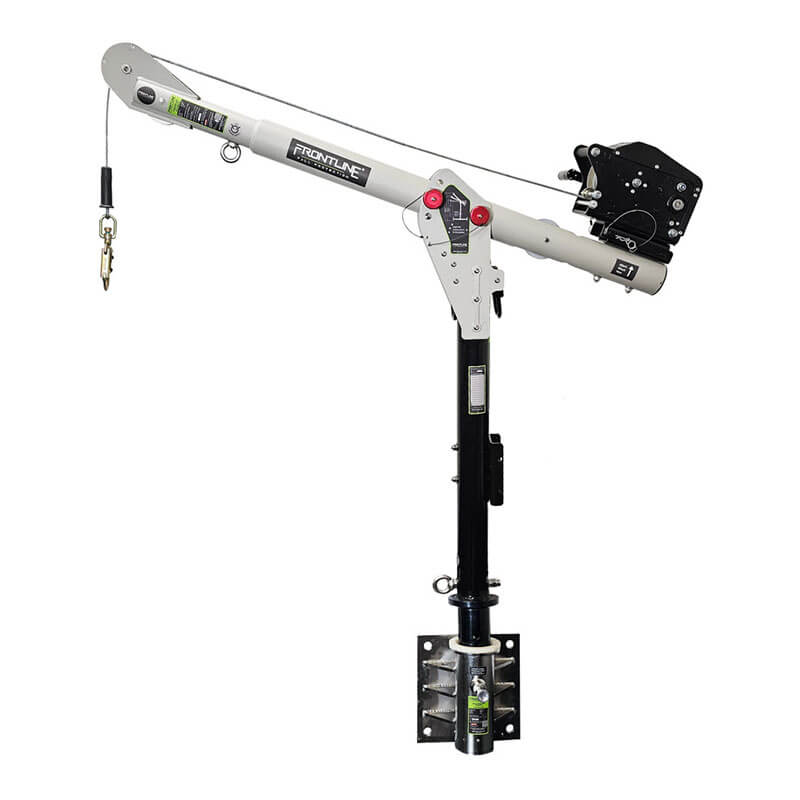

DAC-WL-WINCH - Davit System + Winch

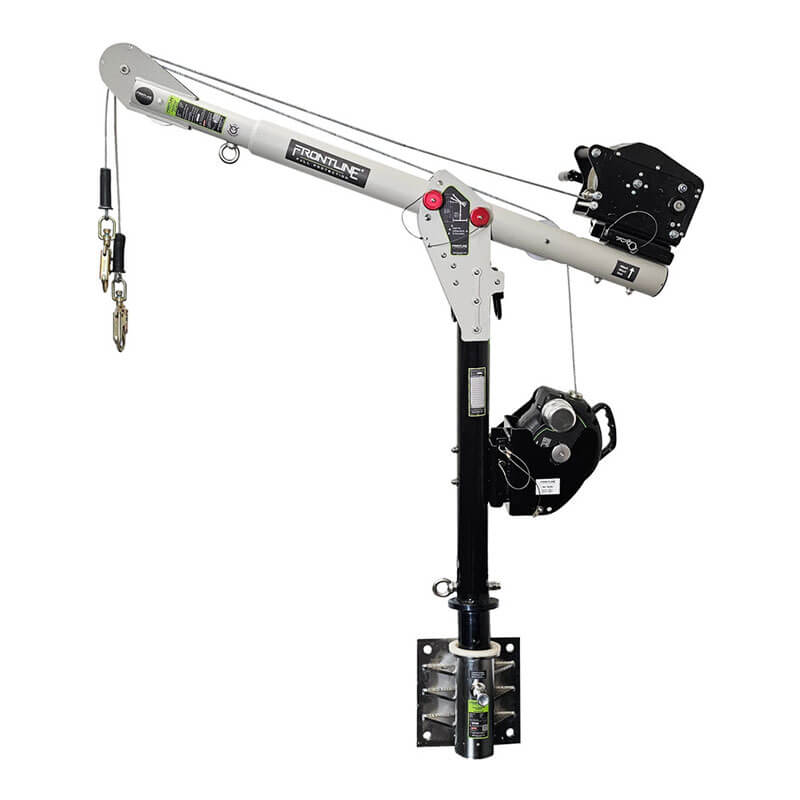

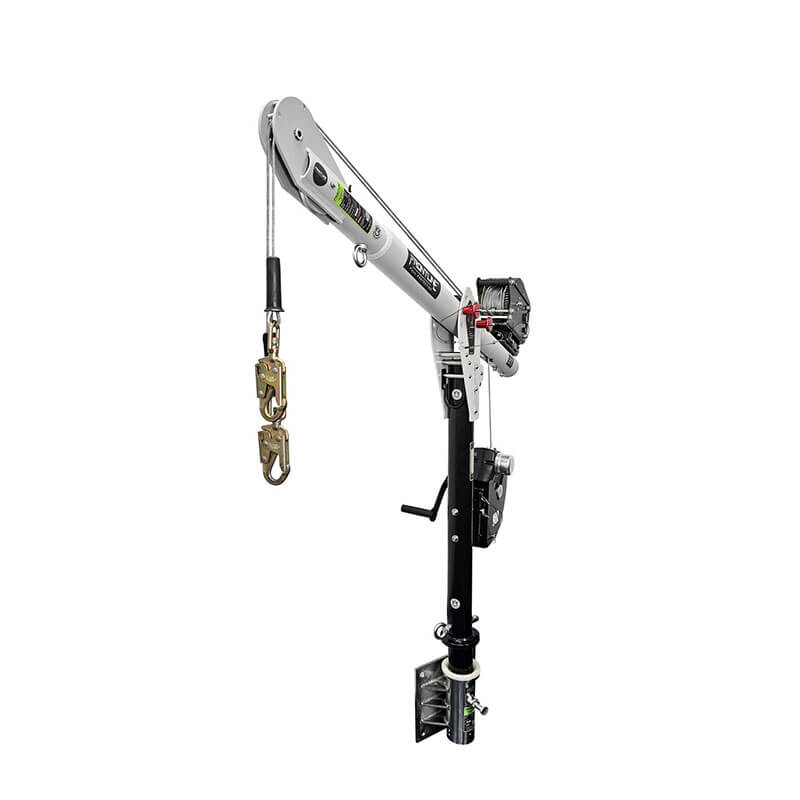

DAC-WL-WINCH-3WAY - Davit System + Winch + 3-Way Retrieval
