French Creek Portable Guardrail System GR200

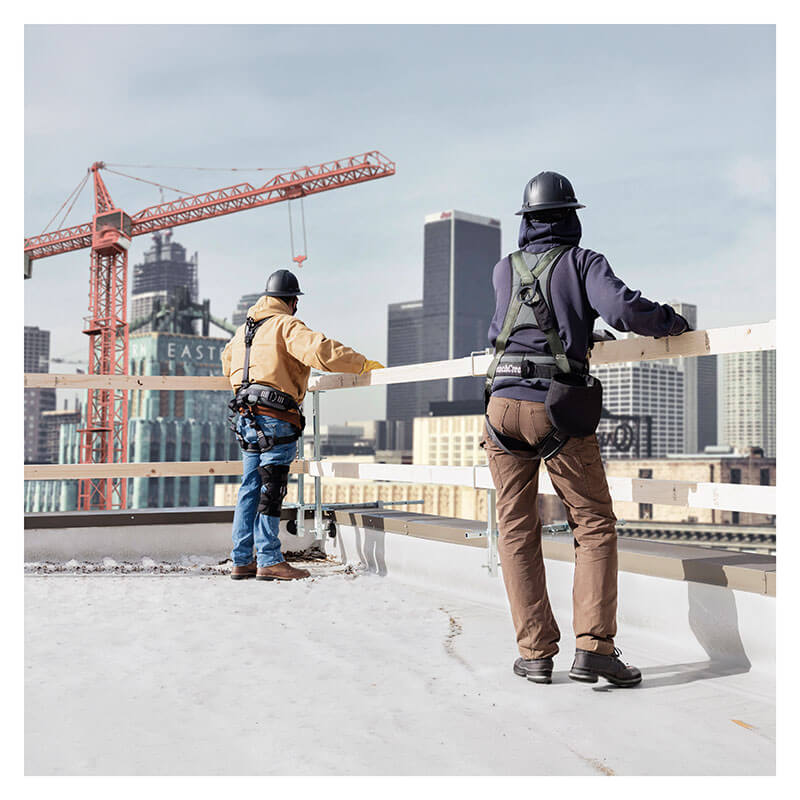

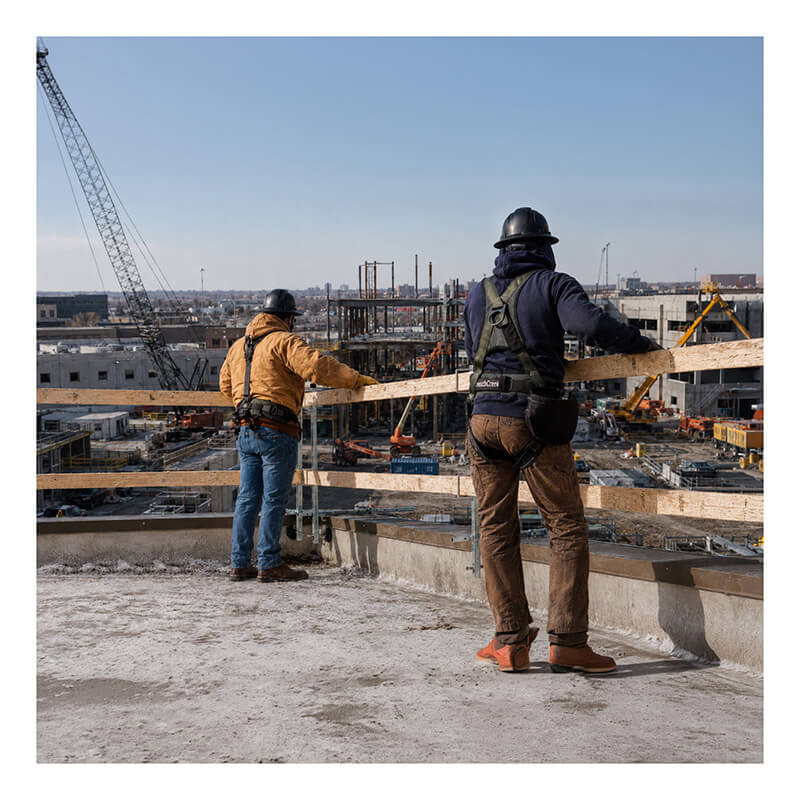

French Creek Portable Guardrail System provides a secure perimeter and is able to be installed on both a parapet, or on the edge of a concrete slab. This system provides a strong barrier without the need for hammers, drills, screws, or nails. A guardrail system is a fundamental of fall prevention when working on open floors and roof tops.

Key Features:

• Fits 4”-24” Parapets and C-slabs
• Dual-use versatility for slab edge and parapet installations
• Secures with adjustable clamp lever
• Plated alloy steel provides corrosion and damage resistance
• Lightweight, one-person setup and installations
• Must be used in Fall Prevention Applications Only
• Minimum parapet wall height: 7.5”
• Placement width: 8’ apart maximum
• Toe-boards must be a minimum 3-1/2” from top edge to working surface, and must not have greater than 1/4” clearance between the bottom edge and working surface
• Mid rail must withstand 150 lbs. of force
• Working Capacity: Top rail must withstand 200 lbs. of force
• Fits any parapet or concrete slab from 4”-24” thick
• Guardrails must overlap at least 12” at each end
• Material: Zinc plated alloy steel
• Standards: Meets & Exceeds OSHA 1926 Subpart M & 1910

Product Number:
GR200
