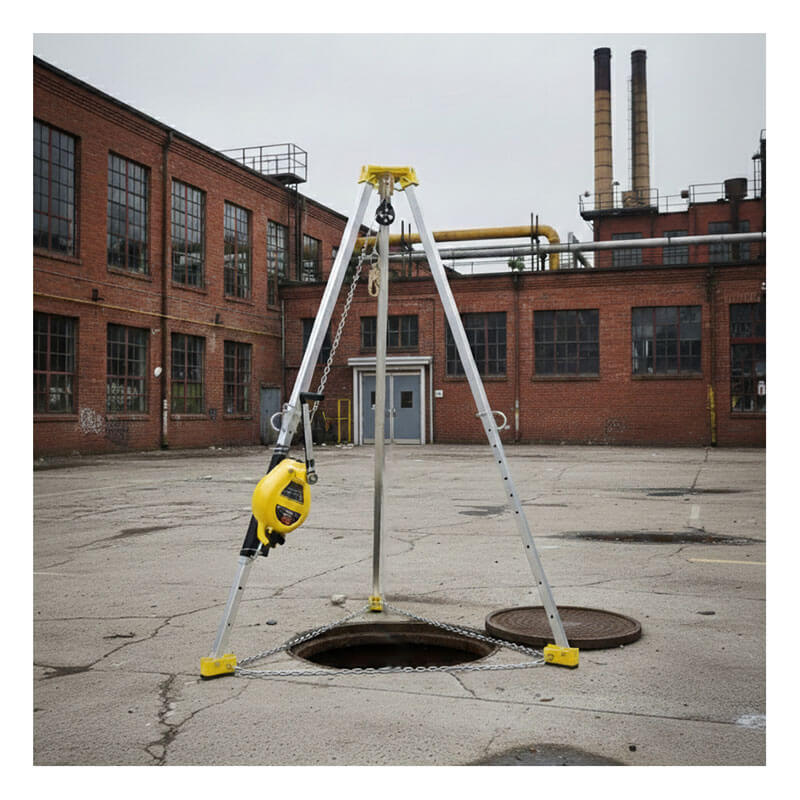

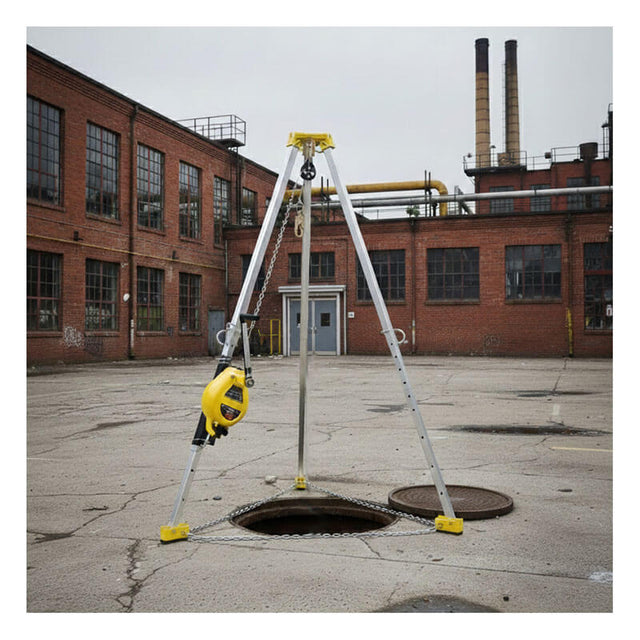

French Creek 7' Tripod Rescue System S50G-7

French Creek Production's 7' Aluminum Tripod Rescue System delivers the complete solution your team needs for safe, compliant rescue operations. This comprehensive kit combines a sturdy 7' tripod with a powerful 50' 3-way rescue unit, meeting all ANSI and OSHA safety standards. Unlike the S50G-M7 model, this system prioritizes versatile rescue capability with its integrated 3-way unit, making it the ideal choice for teams requiring multi-directional rescue functionality without material winch features.

7' TP7 Aluminum Tripod:
This confined space tripod is made to withstand 5000 lbs. of vertical load, yet is lightweight and portable, offering quick and easy single person setup. TP Series tripods feature adjustable/locking aluminum legs, safety chain, non-slip rubber safety shoes, and two attachment points on the steel head.

• Aluminum Legs
• Adjustable up to 9ft
• Steel head and Feet
• Safety Chain
• 2 anchorage points on head

50' Galvanized Steel (R50G):
This is a self-retracting lifeline which may be raised and lowered for rescue and retrieval. If a worker falls, the unit will instantly lock up and arrest the fall. The system may then be used in winch mode, raising or lowering the worker to safety. The R50's friction brake prevents the crank handle from free-wheeling while under a load. The unit is manufactured of a durable, light cast aluminum housing, and includes a mounting bracket for the tripod or French Creek's Davit Systems, a #45 split pulley, and carabiner for attaching the lifeline to the tripod.

• Mounting bracket
• #45 split pulley
• carabiner
• 5.1:1 Gear Ratio
• 350 lb capacity for personnel

Part Numbers:
S50G-7
(Included) TP7 - 7' TP9 Aluminum Tripod
(Included) R50G 50' Galvanized Steel 3-Way Rescue Unit
