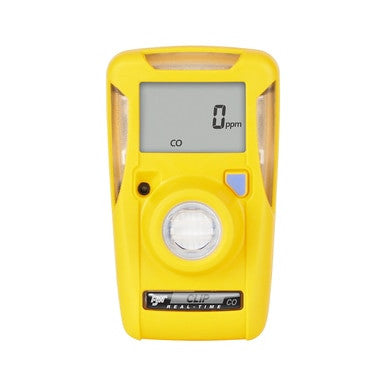

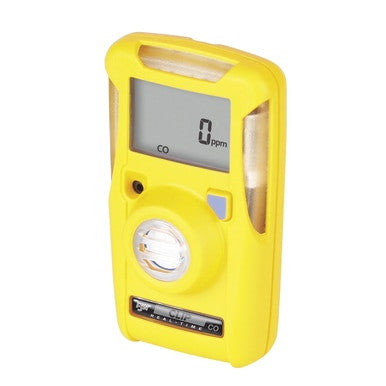

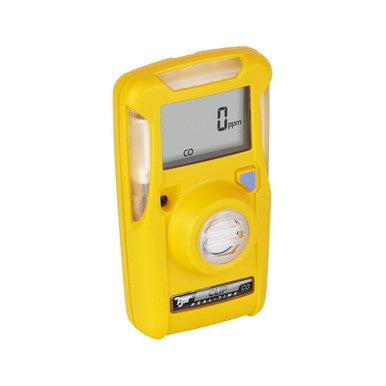

BW Clip Real Time 3 Year CO Detector 35-200 ppm BWC3R-M
Description
The BW Clip Real Time 3 Year CO Detector (BWC3R-M) is a maintenance-free single gas carbon monoxide monitor with a real-time digital display, designed for harsh environments and extreme temperatures from -22°F to +122°F. Default alarm setpoints are 35 ppm (low) and 200 ppm (high); adjustable from 5 to 200 ppm. Based on Surecell dual-reservoir sensor design and Reflex Technology automated internal testing, the BWC3R-M requires no sensor replacement, no battery charging, and no battery replacement for three full years of continuous operation.
Key Features:
- Default alarm setpoints: 35–200 ppm; adjustable range: 5–200 ppm
- Measuring range: 0–300 ppm CO
- Temperature: -22 to +122°F; Humidity: 5–95% RH (non-condensing)
- Alarm: visual, vibrating, audible (95 dB), wide-angle flash
- Automated self-test of battery, sensor and electronics
- Logs 35 most recent gas events, bump test and calibration results
- Ingress Protection: IP 66/67; battery life: 3 years
- Hibernation capable — store in BW Clip Hibernation Case CLIPHB-CASE to extend service life
- Compatible with MicroDock II and IntelliDoX instrument management systems (firmware update required)
- Certifications: Class I Div. 1 Gr. A, B, C, D; Ex ia IIC T4 Ga IP66/67; ATEX; IECEx; CE
Unit Includes:
- Detector with CO sensor, stainless steel alligator clip, and concussion-proof housing
- Calibration/test cap and hose
- Manual
Please Note: MM and DD on the display denote months and days remaining before the monitor expires. Once activated, these units cannot be shut down and will run continuously for their 3-year lifespan — they cannot be shipped after activation or resold. Non-activated units may be returned. Add BW Clip Real Time 2-Year CO BWC2R-M for a shorter-duration option.
Regulatory Note: Per OSHA 29 CFR 1910.1000 Table Z-1, the PEL for CO is 50 ppm as an 8-hour TWA. Employers in permit-required confined spaces per 29 CFR 1910.146 must use calibrated gas detection equipment; the BWC3R-M satisfies this requirement when bump-tested per manufacturer recommendations.
PK Safety services BW Technologies by Honeywell gas monitors in-house with factory-trained technicians. For help selecting the right part or to schedule calibration and repair, call 800.829.9580 or contact us online.
BW Clip Series Specification Sheet:
Part Number:
BWC3R-M
Related Searches
Bw Technologies By Honeywell, Co Gas Monitors, Gas Detection
Frequently Asked Questions
What is the difference between the BWC3R-M and the BWC2R-M?
The BWC3R-M provides three years of continuous maintenance-free operation, while the BWC2R-M provides two years. Both feature the same real-time digital CO display, Surecell sensor, and Reflex Technology. The BWC3R-M is the better value for facilities with ongoing, long-duration monitoring programs where instrument rotation and service downtime are operational concerns.
Can I calibrate the BWC3R-M, and how often is required?
Yes. Unlike the non-display BW Clip series, the BWC3R-M supports user-initiated calibration with calibration reminders settable up to 180-day intervals. Use the BW Demand Flow Regulator REG-DF-1 with compatible calibration gas. OSHA and most industry standards require calibration verification at least every 6 months or per manufacturer guidance — whichever is more frequent.
Is the BWC3R-M compatible with IntelliDoX automated docking stations?
Yes, with a firmware update the BWC3R-M is compatible with both the MicroDock II and the IntelliDoX docking station. IntelliDoX automates bump testing, calibration, and data logging — reducing manual recordkeeping burden and supporting OSHA 29 CFR 1910.146 compliance documentation requirements.
What does the hibernation feature do, and do I need a separate case?
Hibernation pauses the clock on the BWC3R-M's 3-year lifespan while the unit is not in use. To use hibernation, you need the BW Clip Hibernation Case CLIPHB-CASE, sold separately. This is ideal for turnaround projects, seasonal workforces, or supplemental monitors kept on reserve. Time spent in hibernation does not count toward the 3-year operational window.
What CO alarm setpoints does the BWC3R-M use?
The factory default alarm setpoints are 35 ppm (low) and 200 ppm (high), corresponding to OSHA-relevant CO exposure thresholds. The low/high setpoints are user-adjustable from 5 to 200 ppm. The OSHA 8-hour TWA PEL for CO under 29 CFR 1910.1000 is 50 ppm; the ACGIH TLV-TWA is 25 ppm. PK Safety's gas detection specialists can help configure alarm setpoints to match your specific regulatory and site requirements — call 800.829.9580.
Can PK Safety service or repair the BWC3R-M?
PK Safety is a BW Technologies by Honeywell Factory Authorized Service Center. We can inspect, bump test, calibrate, and manage BW Clip Real Time detectors in-house. For end-of-life units or transition planning, our specialists can recommend the next-generation replacement and help you evaluate the IntelliDoX automated management system. Call 800.829.9580 or chat online.
