French Creek Production

French Creek Portable Guardrail System GR200

Ships in 4 - 6 weeks
  • FRC01-GR200-Product_Image_1
  • FRC01-GR200-Product_Image_2
  • FRC01-GR200-Product_Image_4
  • FRC01-GR200-Product_Image_3

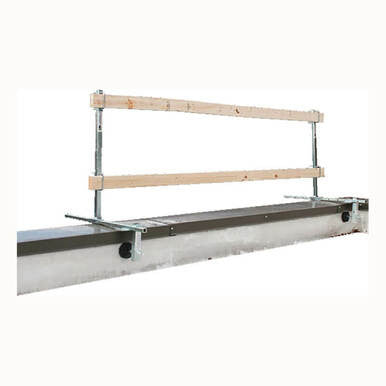

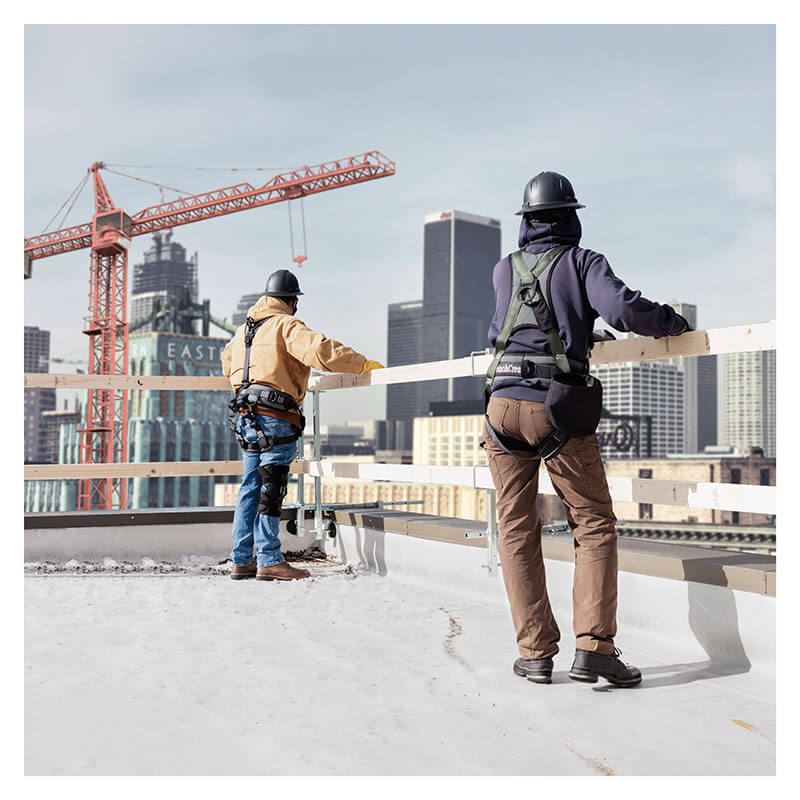

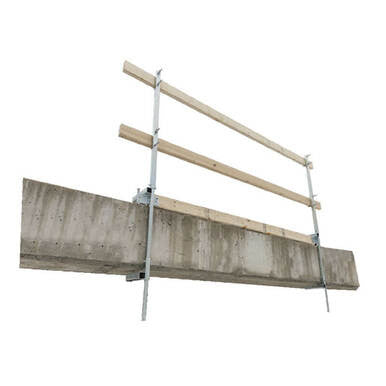

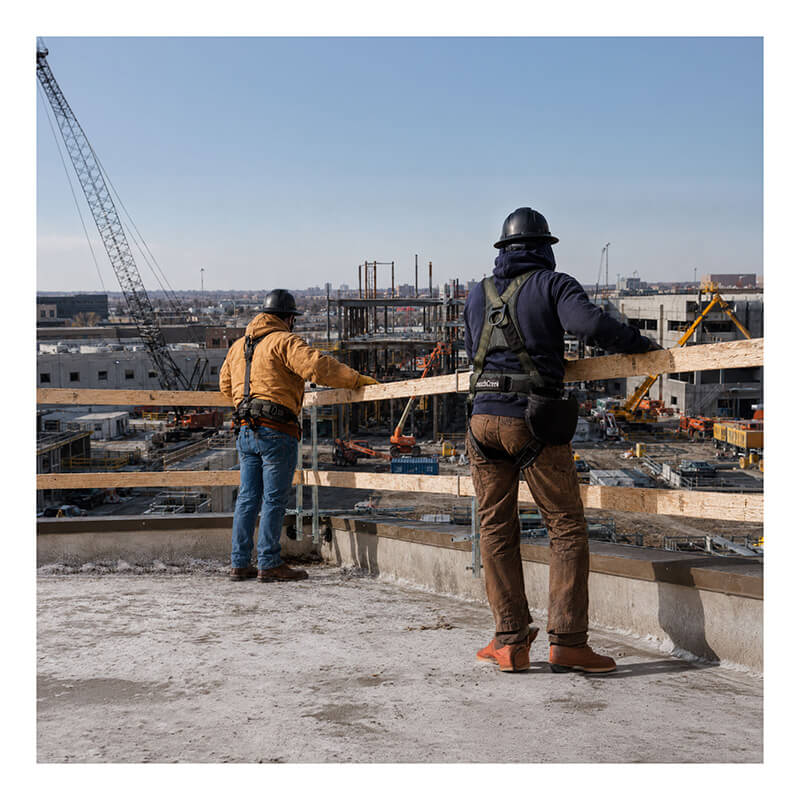

French Creek Portable Guardrail System provides a secure perimeter and is able to be installed on both a parapet, or on the edge of a concrete slab. This system provides a strong barrier without the need for hammers, drills, screws, or nails. A guardrail system is a fundamental of fall prevention when working on open floors and roof tops.

Key Features:

  • Fits 4”-24” Parapets and C-slabs
  • Dual-use versatility for slab edge and parapet installations

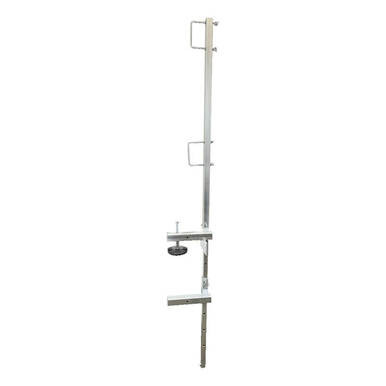

  • Secures with adjustable clamp lever
  • Plated alloy steel provides corrosion and damage resistance
  • Lightweight, one-person setup and installations
  • Must be used in Fall Prevention Applications Only
  • Minimum parapet wall height: 7.5”
  • Placement width: 8’ apart maximum
  • Toe-boards must be a minimum 3-1/2” from top edge to working surface, and must not have greater than 1/4” clearance between the bottom edge and working surface
  • Mid rail must withstand 150 lbs. of force
  • Working Capacity: Top rail must withstand 200 lbs. of force
  • Fits any parapet or concrete slab from 4”-24” thick
  • Guardrails must overlap at least 12” at each end
  • Material: Zinc plated alloy steel
  • Standards: Meets & Exceeds OSHA 1926 Subpart M & 1910

Specification Sheet:

Product Number:

View AllClose

Additional Information

30.50 LBS
41.00 (in)
7.00 (in)
11.00 (in)
View AllClose
