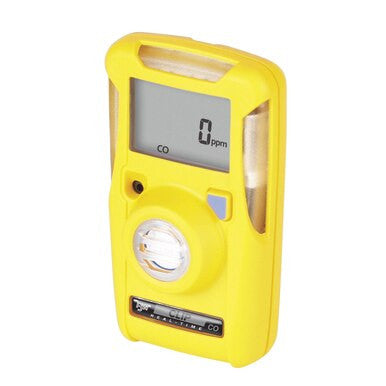

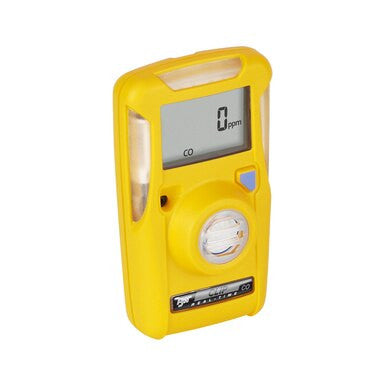

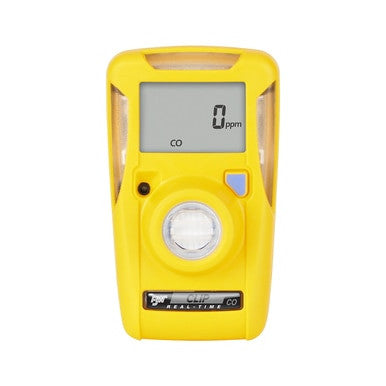

BW Clip Real Time 2 Year CO Detector 35-200 ppm BWC2R-M
Description
The BW Clip Real Time 2-Year CO Detector (BWC2R-M) is a lightweight and easy to handle single gas detector for carbon monoxide. Designed for a wide range of harsh environments and extreme temperatures, this monitor has default alarm setpoints at 35 ppm to 200 ppm. BW Clip Real Time includes a real-time gas level display and the ability to calibrate the device. It provides two years of maintenance-free operation: just turn on the device, and it runs continuously. There is no need for sensor replacement and battery charging or replacement.
You can also put the device in a BW Clip Hibernation Case when you're not using it, and extend its life by that period of time — great for turnarounds, short-term projects, and employee leave. Add on the CO Bump Alarm Test Gas to regularly test the monitor is functioning properly.
It is based on Surecell and Reflex Technology. Surecell is a unique dual reservoir sensor design that dramatically improves instrument performance, response time, and longevity. Reflex Technology is an advanced automated internal test function that routinely checks the operating condition of the sensor to increase safety, uptime, and overall worker confidence.
Key Features:
- Default alarm setpoints: 35–200 ppm
- Alarm setpoints range: 5–200 ppm
- Measuring range: 0–300 ppm
- Temperature: -22 to +122°F
- Humidity: 5%–95% RH (non-condensing)
- Alarm: visual, vibrating, audible (95 dB), low, high
- Wide-angle flash, which alerts simultaneously with audible and vibrating alarm
- Automated self-test of battery, sensor and electronics
- Automatic logging of the 35 most recent gas events, bump test and calibration results
- Ingress Protection: IP 66/67
- Battery life: 2 years
- Hibernation capable
- Surecell and Reflex Technology
- Compatible with hands-free Hard Hat Clip carrying accessory
- Certifications: Class I, Div. 1, Gr. A, B, C, D, Class I, Zone 0, Gr. IIC; Ex ia IIC T4 Ga IP66/67, IECEx UL 14.0063, Ex ia IIC T4 Ga IP66/67, DEMKO 14 ATEX 1356, CE European Conformity
Unit Includes:
- Detector complete with specified sensor, stainless steel alligator clip and concussion-proof housing
- Calibration/test cap and hose
- Manual
Regulatory Note: The OSHA PEL for carbon monoxide is 50 ppm (29 CFR 1910.1000, Table Z-1). The BWC2R-M default low alarm of 35 ppm provides warning before the OSHA PEL is reached. Employers operating in permit-required confined spaces must comply with 29 CFR 1910.146 atmospheric testing requirements. The real-time display supports immediate worker awareness of rising CO levels.
Please Note: MM and DD denote the number of months and days left before the gas monitor expires. Once activated, these units cannot be shut down and will continue to run for their two-year life span, prohibiting these items from being shipped because the alarm may be activated during transit. Additionally, these items are unable to be resold after activation.
PK Safety services BW Technologies by Honeywell gas monitors in-house with factory-trained technicians. For help selecting the right part or to schedule calibration and repair, call 800.829.9580 or contact us online.
Part Number:
BWC2R-M
BW Clip Series Specification Sheet:
Related Searches
Bw Technologies By Honeywell, Co Gas Monitors, Gas Detection, Portable Gas Monitors And Detectors, Single-Gas Monitors
Frequently Asked Questions
What distinguishes the BW Clip Real Time BWC2R-M from the standard BWC2-M?
The key difference is the real-time digital gas concentration display. The BWC2-M (standard BW Clip) does not show a live CO reading — it only alarms at set thresholds. The BWC2R-M displays the actual CO ppm reading in real time, allowing workers to monitor ambient CO levels continuously. The BWC2R-M also supports user-initiated calibration, unlike the standard BW Clip which is fully sealed and non-calibratable.
Can the BWC2R-M be calibrated by the user?
Yes. Unlike the standard BW Clip, the BWC2R-M supports user-initiated calibration. Use the included calibration cap and hose with an appropriate CO calibration gas. For automated calibration, the BW IntelliDoX DX-CLIP can perform rapid calibrations for multiple units simultaneously. Pair with the REG-DF-1 Demand Flow Regulator for IntelliDoX-based calibrations.
What alarm setpoints does the BWC2R-M use?
The BWC2R-M ships with default low alarm at 35 ppm and high alarm at 200 ppm. The setpoint range is 5–200 ppm, adjustable using the BW IntelliDoX DX-CLIP. The full measuring range is 0–300 ppm CO. The OSHA PEL for CO is 50 ppm per 29 CFR 1910.1000, Table Z-1.
Is the BWC2R-M compatible with the Hibernation Case?
Yes. The BW Clip Hibernation Case CLIPHB-CASE is compatible with the BWC2R-M, allowing you to pause the device when not in use for a week or more and extend its life by the hibernation period, up to 12 additional months.
What certifications does the BWC2R-M carry?
The BWC2R-M is certified for use in hazardous locations: Class I, Div. 1, Gr. A, B, C, D; Class I, Zone 0, Gr. IIC; Ex ia IIC T4 Ga IP66/67; IECEx UL 14.0063; DEMKO 14 ATEX 1356; CE European Conformity. Its IP 66/67 rating provides full protection against dust and water immersion to 1 meter.
Can PK Safety service or calibrate my BWC2R-M?
Yes. PK Safety is a BW Technologies by Honeywell Factory Authorized Service Center with factory-trained technicians. We provide in-house calibration and repair services for BW gas monitors including the BWC2R-M. Visit our BW Honeywell Gas Monitor Calibration Service page or call 800.829.9580.
