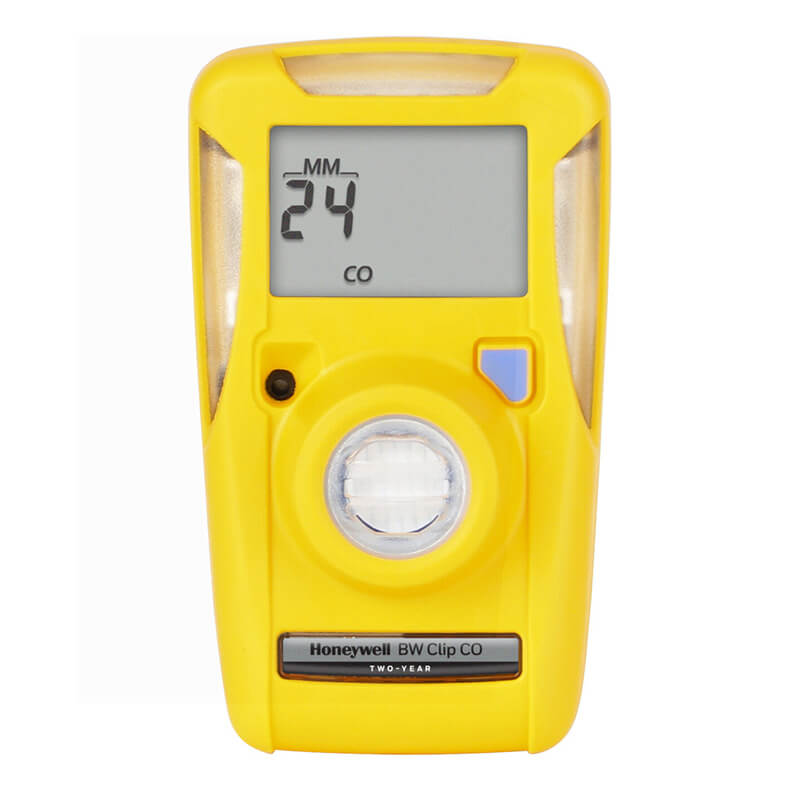

BW Clip 2 Year CO Single Gas Detector, BWC2-M50200
Description
The BW Clip 2-Year Detector for CO is a maintenance-free, single gas detector for carbon monoxide. This monitor has default alarm setpoints at 50 ppm to 200 ppm, making it suitable for operations where the higher CO threshold is appropriate for the work environment.
As your everyday companion for hazardous environments, the BW Clip has everything you need — plus new features to make your gas detection easier, safer, and more reliable. Just turn on the device and it runs continuously — no need for calibration, sensor replacement, battery replacement or battery charging. That means great reliability and no downtime.
With the two-year BW Clip for CO, you can use the BW Clip Hibernation Case when you're not using it for a week or more and extend its life by that period of time, up to 12 months.
Use the hands-free Hard Hat Clip carrying accessory GA-HC-1 with any of the BW single gas monitors. Add on the CO Bump Alarm Test Gas to regularly test the monitor is functioning properly.
BW Clip Standard Features:
- Maintenance-free: no sensor or battery changes necessary
- Compact, lightweight design with one-button operation
- Designed for a range of harsh environments and extreme temperatures
- Hibernation mode with case accessory or IntelliDoX
- Automated self-test of battery, sensor and electronics
- Wide-angle flash, which alerts simultaneously with audible and vibrating alarm
- Automatic logging of the 35 most recent gas events and bump test results
- IP 66/67 — can be submerged up to 1 meter
- Default Alarm Setpoints: Low 50 ppm, High 200 ppm
- Alarm Setpoints Range from 5 ppm to 200 ppm
- Detector measuring range from 0–300 ppm
- Automated self-test
- Affordable, with low cost of ownership
Unit Includes:
- Detector complete with specified sensor, stainless steel alligator clip and concussion-proof housing
- Calibration/test cap and hose
- Manual
Configurable Options with IntelliDoX Management System:
- Configuration of high and low alarm set points before the device is activated
- Adjustment of alarm set points and other parameters as needed throughout the lifespan
- Non-compliance chirp indicator
- Configuration without activation
- Option to enable the noncompliance indicator, which flashes red when a bump test is due or a gas event occurs
- Option to display gas reading during alarm
- User settable bump test reminder
- 7–8 sec bump test with no more than 1 minute purge
- Option to display the Real Time Clock
Advanced Technology for Safety Compliance and Productivity:
- Unique dual reservoir sensor design dramatically improves instrument performance, response time, and longevity compared to traditional electrochemical sensors
- Reflex Technology advanced automated self-test function routinely checks the operating condition of the sensor to increase safety, uptime, and overall worker confidence
BW Clip Specifications:
- Weight: 0.6 lbs.
- Temperature: -40 to 122°F
- Humidity: 5–95% RH (non-condensing)
- Alarms: Visual, vibrating, and audible
- Typical Battery Life: Two years
Regulatory Note: The OSHA PEL for carbon monoxide is 50 ppm (29 CFR 1910.1000, Table Z-1). The BWC2-M50200's default low setpoint of 50 ppm corresponds exactly to the OSHA PEL. Employers in confined spaces must comply with 29 CFR 1910.146 and verify that setpoints meet all applicable site-specific regulatory requirements.
Please Note: MM and DD denote the number of months and days left before the gas monitor expires. This monitor does not have a digital display of the gas concentration. Once activated, these units cannot be shut down and will continue to run for their two-year life span, prohibiting these items from being shipped because the alarm may be activated during transit. Additionally, these items are unable to be resold after activation.
PK Safety services BW Technologies by Honeywell gas monitors in-house with factory-trained technicians. For help selecting the right part or to schedule calibration and repair, call 800.829.9580 or contact us online.
Part Number:
BWC2-M50200 2 Year CO 50-200
Related Searches
Bw Technologies By Honeywell, Co Gas Monitors, Gas Detection, Limited Time Offers, Portable Gas Monitors And Detectors, Single-Gas Monitors
Frequently Asked Questions
What is the difference between the BWC2-M50200 and the BWC2-M?
Both are 2-year maintenance-free CO monitors with the same 0–300 ppm measuring range. The BWC2-M has default alarm setpoints at 35 ppm (low) and 200 ppm (high), aligning with the NIOSH REL. The BWC2-M50200 alarms at 50 ppm (low) and 200 ppm (high), which corresponds to the OSHA PEL for CO per 29 CFR 1910.1000. Choose based on your site's regulatory requirements and safety program.
Does the BWC2-M50200 require calibration or sensor replacement?
No. Like all BW Clip monitors, the BWC2-M50200 is truly maintenance-free for two years. Reflex Technology automated self-tests continuously verify sensor and battery condition. The device comes ready to activate and run — no calibration or setup required. A calibration/test cap and hose are included for bump testing.
Can I change the alarm setpoints on the BWC2-M50200?
Yes, with the BW IntelliDoX DX-CLIP docking station. Setpoints can be configured before or after activation, within the adjustable range of 5 ppm to 200 ppm. The IntelliDoX Enabler Kit DX-ENBL-NA is required for docking station operation. PK Safety can also pre-configure setpoints — call 800.829.9580 before ordering.
Is the BWC2-M50200 compatible with the BW Clip Hibernation Case?
Yes. The BW Clip Hibernation Case CLIPHB-CASE is compatible with the BWC2-M50200. Storing the monitor in the case when not in use for a week or more pauses the internal clock and can extend the unit's useful life by up to 12 months beyond the standard two-year period.
What is the IP rating of the BWC2-M50200?
The BWC2-M50200 carries an IP 66/67 rating — fully dust-tight and capable of withstanding water immersion up to 1 meter. It operates from -40 to 122°F, making it suitable for a wide range of harsh industrial environments, from cold storage to outdoor worksites.
Can PK Safety provide CO monitors with custom pre-configured setpoints?
Yes. As a BW Technologies by Honeywell Factory Authorized Service Center, PK Safety's technicians can pre-configure alarm setpoints on BW Clip monitors before shipment. We also provide factory-authorized calibration service for BW gas monitors. Contact us at 800.829.9580 to discuss fleet configuration needs.
Read more
Description
The BW Clip 2-Year Detector for CO is a maintenance-free, single gas detector for carbon monoxide. This monitor has default alarm setpoints at 50 ppm to 200 ppm, making it suitable for operations where the higher CO threshold is appropriate for the work environment.
As your everyday companion for hazardous environments, the BW Clip has everything you need — plus new features to make your gas detection easier, safer, and more reliable. Just turn on the device and it runs continuously — no need for calibration, sensor replacement, battery replacement or battery charging. That means great reliability and no downtime.
With the two-year BW Clip for CO, you can use the BW Clip Hibernation Case when you're not using it for a week or more and extend its life by that period of time, up to 12 months.
Use the hands-free Hard Hat Clip carrying accessory GA-HC-1 with any of the BW single gas monitors. Add on the CO Bump Alarm Test Gas to regularly test the monitor is functioning properly.
BW Clip Standard Features:
- Maintenance-free: no sensor or battery changes necessary
- Compact, lightweight design with one-button operation
- Designed for a range of harsh environments and extreme temperatures
- Hibernation mode with case accessory or IntelliDoX
- Automated self-test of battery, sensor and electronics
- Wide-angle flash, which alerts simultaneously with audible and vibrating alarm
- Automatic logging of the 35 most recent gas events and bump test results
- IP 66/67 — can be submerged up to 1 meter
- Default Alarm Setpoints: Low 50 ppm, High 200 ppm
- Alarm Setpoints Range from 5 ppm to 200 ppm
- Detector measuring range from 0–300 ppm
- Automated self-test
- Affordable, with low cost of ownership
Unit Includes:
- Detector complete with specified sensor, stainless steel alligator clip and concussion-proof housing
- Calibration/test cap and hose
- Manual
Configurable Options with IntelliDoX Management System:
- Configuration of high and low alarm set points before the device is activated
- Adjustment of alarm set points and other parameters as needed throughout the lifespan
- Non-compliance chirp indicator
- Configuration without activation
- Option to enable the noncompliance indicator, which flashes red when a bump test is due or a gas event occurs
- Option to display gas reading during alarm
- User settable bump test reminder
- 7–8 sec bump test with no more than 1 minute purge
- Option to display the Real Time Clock
Advanced Technology for Safety Compliance and Productivity:
- Unique dual reservoir sensor design dramatically improves instrument performance, response time, and longevity compared to traditional electrochemical sensors
- Reflex Technology advanced automated self-test function routinely checks the operating condition of the sensor to increase safety, uptime, and overall worker confidence
BW Clip Specifications:
- Weight: 0.6 lbs.
- Temperature: -40 to 122°F
- Humidity: 5–95% RH (non-condensing)
- Alarms: Visual, vibrating, and audible
- Typical Battery Life: Two years
Regulatory Note: The OSHA PEL for carbon monoxide is 50 ppm (29 CFR 1910.1000, Table Z-1). The BWC2-M50200's default low setpoint of 50 ppm corresponds exactly to the OSHA PEL. Employers in confined spaces must comply with 29 CFR 1910.146 and verify that setpoints meet all applicable site-specific regulatory requirements.
Please Note: MM and DD denote the number of months and days left before the gas monitor expires. This monitor does not have a digital display of the gas concentration. Once activated, these units cannot be shut down and will continue to run for their two-year life span, prohibiting these items from being shipped because the alarm may be activated during transit. Additionally, these items are unable to be resold after activation.
PK Safety services BW Technologies by Honeywell gas monitors in-house with factory-trained technicians. For help selecting the right part or to schedule calibration and repair, call 800.829.9580 or contact us online.
Part Number:
BWC2-M50200 2 Year CO 50-200
Related Searches
Bw Technologies By Honeywell, Co Gas Monitors, Gas Detection, Limited Time Offers, Portable Gas Monitors And Detectors, Single-Gas Monitors
Frequently Asked Questions
What is the difference between the BWC2-M50200 and the BWC2-M?
Both are 2-year maintenance-free CO monitors with the same 0–300 ppm measuring range. The BWC2-M has default alarm setpoints at 35 ppm (low) and 200 ppm (high), aligning with the NIOSH REL. The BWC2-M50200 alarms at 50 ppm (low) and 200 ppm (high), which corresponds to the OSHA PEL for CO per 29 CFR 1910.1000. Choose based on your site's regulatory requirements and safety program.
Does the BWC2-M50200 require calibration or sensor replacement?
No. Like all BW Clip monitors, the BWC2-M50200 is truly maintenance-free for two years. Reflex Technology automated self-tests continuously verify sensor and battery condition. The device comes ready to activate and run — no calibration or setup required. A calibration/test cap and hose are included for bump testing.
Can I change the alarm setpoints on the BWC2-M50200?
Yes, with the BW IntelliDoX DX-CLIP docking station. Setpoints can be configured before or after activation, within the adjustable range of 5 ppm to 200 ppm. The IntelliDoX Enabler Kit DX-ENBL-NA is required for docking station operation. PK Safety can also pre-configure setpoints — call 800.829.9580 before ordering.
Is the BWC2-M50200 compatible with the BW Clip Hibernation Case?
Yes. The BW Clip Hibernation Case CLIPHB-CASE is compatible with the BWC2-M50200. Storing the monitor in the case when not in use for a week or more pauses the internal clock and can extend the unit's useful life by up to 12 months beyond the standard two-year period.
What is the IP rating of the BWC2-M50200?
The BWC2-M50200 carries an IP 66/67 rating — fully dust-tight and capable of withstanding water immersion up to 1 meter. It operates from -40 to 122°F, making it suitable for a wide range of harsh industrial environments, from cold storage to outdoor worksites.
Can PK Safety provide CO monitors with custom pre-configured setpoints?
Yes. As a BW Technologies by Honeywell Factory Authorized Service Center, PK Safety's technicians can pre-configure alarm setpoints on BW Clip monitors before shipment. We also provide factory-authorized calibration service for BW gas monitors. Contact us at 800.829.9580 to discuss fleet configuration needs.
The BW Clip 2-Year Detector for CO is a maintenance-free, single gas detector for carbon monoxide. This monitor has default alarm setpoints at 50 ppm to 200 ppm, making it suitable for operations where the higher CO threshold is appropriate for the work environment.
As your everyday companion for hazardous environments, the BW Clip has everything you need — plus new features to make your gas detection easier, safer, and more reliable. Just turn on the device and it runs continuously — no need for calibration, sensor replacement, battery replacement or battery charging. That means great reliability and no downtime.
With the two-year BW Clip for CO, you can use the BW Clip Hibernation Case when you're not using it for a week or more and extend its life by that period of time, up to 12 months.
Use the hands-free Hard Hat Clip carrying accessory GA-HC-1 with any of the BW single gas monitors. Add on the CO Bump Alarm Test Gas to regularly test the monitor is functioning properly.
BW Clip Standard Features:
- Maintenance-free: no sensor or battery changes necessary
- Compact, lightweight design with one-button operation
- Designed for a range of harsh environments and extreme temperatures
- Hibernation mode with case accessory or IntelliDoX
- Automated self-test of battery, sensor and electronics
- Wide-angle flash, which alerts simultaneously with audible and vibrating alarm
- Automatic logging of the 35 most recent gas events and bump test results
- IP 66/67 — can be submerged up to 1 meter
- Default Alarm Setpoints: Low 50 ppm, High 200 ppm
- Alarm Setpoints Range from 5 ppm to 200 ppm
- Detector measuring range from 0–300 ppm
- Automated self-test
- Affordable, with low cost of ownership
Unit Includes:
- Detector complete with specified sensor, stainless steel alligator clip and concussion-proof housing
- Calibration/test cap and hose
- Manual
Configurable Options with IntelliDoX Management System:
- Configuration of high and low alarm set points before the device is activated
- Adjustment of alarm set points and other parameters as needed throughout the lifespan
- Non-compliance chirp indicator
- Configuration without activation
- Option to enable the noncompliance indicator, which flashes red when a bump test is due or a gas event occurs
- Option to display gas reading during alarm
- User settable bump test reminder
- 7–8 sec bump test with no more than 1 minute purge
- Option to display the Real Time Clock
Advanced Technology for Safety Compliance and Productivity:
- Unique dual reservoir sensor design dramatically improves instrument performance, response time, and longevity compared to traditional electrochemical sensors
- Reflex Technology advanced automated self-test function routinely checks the operating condition of the sensor to increase safety, uptime, and overall worker confidence
BW Clip Specifications:
- Weight: 0.6 lbs.
- Temperature: -40 to 122°F
- Humidity: 5–95% RH (non-condensing)
- Alarms: Visual, vibrating, and audible
- Typical Battery Life: Two years
Regulatory Note: The OSHA PEL for carbon monoxide is 50 ppm (29 CFR 1910.1000, Table Z-1). The BWC2-M50200's default low setpoint of 50 ppm corresponds exactly to the OSHA PEL. Employers in confined spaces must comply with 29 CFR 1910.146 and verify that setpoints meet all applicable site-specific regulatory requirements.
Please Note: MM and DD denote the number of months and days left before the gas monitor expires. This monitor does not have a digital display of the gas concentration. Once activated, these units cannot be shut down and will continue to run for their two-year life span, prohibiting these items from being shipped because the alarm may be activated during transit. Additionally, these items are unable to be resold after activation.
PK Safety services BW Technologies by Honeywell gas monitors in-house with factory-trained technicians. For help selecting the right part or to schedule calibration and repair, call 800.829.9580 or contact us online.
Part Number:
BWC2-M50200 2 Year CO 50-200
Related Searches
Bw Technologies By Honeywell, Co Gas Monitors, Gas Detection, Limited Time Offers, Portable Gas Monitors And Detectors, Single-Gas Monitors
Frequently Asked Questions
What is the difference between the BWC2-M50200 and the BWC2-M?
Both are 2-year maintenance-free CO monitors with the same 0–300 ppm measuring range. The BWC2-M has default alarm setpoints at 35 ppm (low) and 200 ppm (high), aligning with the NIOSH REL. The BWC2-M50200 alarms at 50 ppm (low) and 200 ppm (high), which corresponds to the OSHA PEL for CO per 29 CFR 1910.1000. Choose based on your site's regulatory requirements and safety program.
Does the BWC2-M50200 require calibration or sensor replacement?
No. Like all BW Clip monitors, the BWC2-M50200 is truly maintenance-free for two years. Reflex Technology automated self-tests continuously verify sensor and battery condition. The device comes ready to activate and run — no calibration or setup required. A calibration/test cap and hose are included for bump testing.
Can I change the alarm setpoints on the BWC2-M50200?
Yes, with the BW IntelliDoX DX-CLIP docking station. Setpoints can be configured before or after activation, within the adjustable range of 5 ppm to 200 ppm. The IntelliDoX Enabler Kit DX-ENBL-NA is required for docking station operation. PK Safety can also pre-configure setpoints — call 800.829.9580 before ordering.
Is the BWC2-M50200 compatible with the BW Clip Hibernation Case?
Yes. The BW Clip Hibernation Case CLIPHB-CASE is compatible with the BWC2-M50200. Storing the monitor in the case when not in use for a week or more pauses the internal clock and can extend the unit's useful life by up to 12 months beyond the standard two-year period.
What is the IP rating of the BWC2-M50200?
The BWC2-M50200 carries an IP 66/67 rating — fully dust-tight and capable of withstanding water immersion up to 1 meter. It operates from -40 to 122°F, making it suitable for a wide range of harsh industrial environments, from cold storage to outdoor worksites.
Can PK Safety provide CO monitors with custom pre-configured setpoints?
Yes. As a BW Technologies by Honeywell Factory Authorized Service Center, PK Safety's technicians can pre-configure alarm setpoints on BW Clip monitors before shipment. We also provide factory-authorized calibration service for BW gas monitors. Contact us at 800.829.9580 to discuss fleet configuration needs.
