RKI RP-3R Sample Drawing Pump For GX-3R (Pro)
Description
Compatible only with the GX-3R Pro multi-gas detector. The regular GX-3R uses a separate RP-3R pump model.

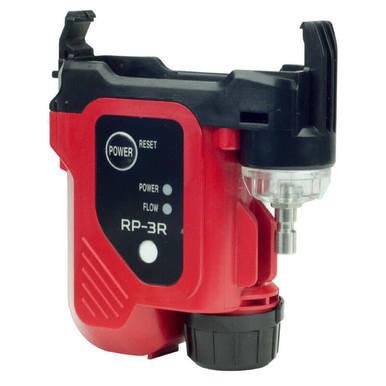

The RKI RP-3R Pro Sample Drawing Pump is a compact, battery-operated, motorized pump that attaches to the GX-3R Pro to convert it from diffusion operation to sample-draw operation. With a 100-foot sampling range and independent power supply, the pump allows gas monitoring in confined spaces, manholes, tanks, and other areas where the operator cannot or should not enter. Together, the RP-3R Pro pump assembly and the GX-3R Pro gas monitor provide a complete solution for confined space pre-entry testing under 29 CFR 1910.146.

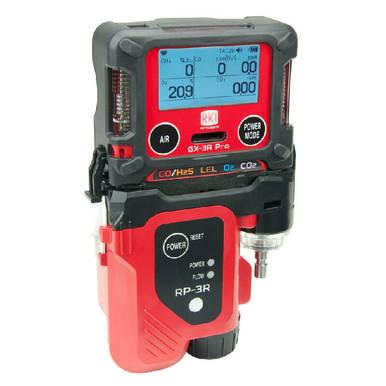

All pumps include a 4-inch tapered red nozzle for sampling. The pump snaps firmly over the sensor area of the GX-3R Pro — no tools required — and removes just as easily when sampling is complete. Built-in dust and hydrophobic filters protect the sensor area from particulates and moisture during sampling.
Pump Specifications:
- Power Supply: AA-size alkaline battery (included)
- Runtime: up to 5 hours of continuous operation
- Filters: built-in dust and hydrophobic filters
- Quick-disconnect fitting for hose connection
- Hoses available up to 230-foot length
- Maximum sampling range: 100 feet
- GX-3R Pro monitor not included
PK Safety services RKI Instruments gas monitors in-house with factory-trained technicians — calibration, sensor replacement, bump testing, and full repair. Call 800.829.9580 to speak with a technician.
Part Numbers:
81-1199 — RP-3R Pro pump with tapered red nozzle for GX-3R Pro
81-1200 — RP-3R Pro pump with 10-ft hose, 10-inch probe, and tapered red nozzle for GX-3R Pro
81-1200-20 — RP-3R Pro pump with 20-ft hose, 10-inch probe, and tapered red nozzle for GX-3R Pro
Related Searches
Gas Detection, Gas Detector Accessories
Frequently Asked Questions
Will the RP-3R Pro pump work with the standard GX-3R (non-Pro)?
No. The RP-3R Pro is designed specifically for the GX-3R Pro. The standard GX-3R uses a different version — the RP-3R pump for GX-3R. The two pumps are not interchangeable.
How far can this pump draw a sample?
The RP-3R Pro pump supports a maximum sampling range of 100 feet. Hose lengths are available up to 230 feet for the pump assembly itself, but effective gas sample integrity should be verified for distances beyond the rated 100-foot range. For confined space pre-entry testing under 29 CFR 1910.146, sample the atmosphere at the top, middle, and bottom of the space.
How long does the battery last during continuous sampling?
One AA-size alkaline battery powers the RP-3R Pro pump for up to 5 hours of continuous operation. The pump includes a battery, but keeping a spare in the kit bag is recommended for extended-duration jobs.
Is the probe attachable to the 81-1199 (pump only) variant?
The 81-1199 includes only the pump with a tapered red nozzle — no hose or probe. The 81-1200 adds a 10-foot hose and 10-inch probe; the 81-1200-20 adds a 20-foot hose and probe. If a longer sampling distance is needed, order the 81-1200 or 81-1200-20. Call 800.829.9580 for guidance on the right configuration.
Can PK Safety service or repair the GX-3R Pro?
Yes. PK Safety services RKI Instruments gas monitors in-house — including the GX-3R Pro — with factory-trained technicians. Services include calibration, sensor replacement, bump testing, and full repair. Call 800.829.9580 to arrange service or request a return authorization.
Do the built-in filters need to be replaced?
The built-in dust and hydrophobic filters protect the sensor area during sampling operations. If filters become visibly clogged or sampling performance degrades, inspect and replace as needed. Consult the GX-3R Pro operator manual for filter maintenance intervals and part numbers, or call 800.829.9580 for assistance.
