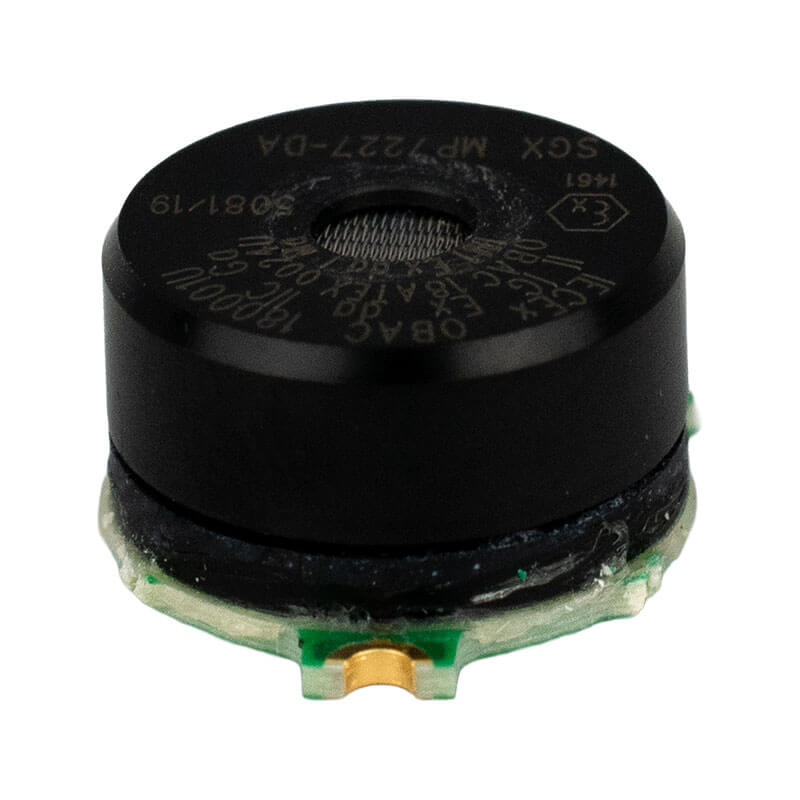

WatchGas SST4-MICRO Replacement LPC LEL Sensor SST-X1-RPL

The SST-X1-RPL is compatible with the WatchGas SST4-MICRO Diffusion 4-Gas Detector ONLY.

It is NOT compatible with the SST4-MINI or the SST4-PUMP. Those monitors use different LEL sensor cells:

• SST4-MINI: use SST-X2-RPL (CAT / catalytic bead) or SST-X3-RPL (NDIR)
• SST4-PUMP: use SST-X2-RPL (CAT), SST-X3-RPL (NDIR), or SST-X4-RPL (LPC configured for the PUMP form factor)

If you're not certain which monitor you own, look at the label on the back or the invoice — MICRO / MINI / PUMP is called out in the product name. Or call PK Safety at 800.829.9580 with the serial number and we'll confirm which X-variant fits.

Toxic-gas sensors (H2S, CO, O2) protect against exposure — the alarm setpoints are anchored to permissible exposure limits like OSHA PELs or NIOSH RELs, and the concentrations of concern are typically parts per million.

LEL sensors protect against fire and explosion. The scale is 0–100% LEL, where 100% LEL means the atmosphere has reached the lower flammable limit and is now ignitable given a spark or heat source. The concentrations are much higher than toxic thresholds — methane at 100% LEL is about 5% by volume, or 50,000 ppm.

OSHA's permit-required confined space rule (29 CFR 1910.146) draws two hard lines: workers must retrieve at 10% LEL, and evacuate at 100% LEL. A drifting LEL sensor means those hard lines are being drawn in the wrong place. The consequence isn't a delayed alarm on a slowly-escalating exposure — it's the difference between exiting a confined space safely and being inside when an atmosphere becomes ignitable.

The most common LEL sensor failure modes for pellistor cells (including the LPC variant in the SST-X1-RPL):

• Silicone poisoning — the classic pellistor killer. Silicones from RTV sealants, greases, lubricants, some hand creams and hair products, and industrial mold-release agents deposit on the pellistor bead and reduce its catalytic activity. Damage is progressive and typically permanent.
• Sulfur compound poisoning (H2S, mercaptans) — common concern in oil & gas and wastewater environments where H2S is often present alongside methane.
• Halogen poisoning — chlorinated solvents, refrigerants, and other halogenated compounds can inhibit pellistor response.
• Over-range exposure — pellistor cells exposed to concentrations above 100% LEL can be thermally damaged by the exothermic reaction and may not recover full sensitivity.
• Mechanical shock — traditional catalytic bead pellistors can crack the bead structure under impact. The LPC MEMS design is engineered to be more shock-resistant than traditional pellistors, but it is not immune.
• Normal wear — pellistor cells drift with cumulative use as the bead structure ages. This is why calibration cadence matters and why a 2-year warranty exists.

If your SST4-MICRO has been used in an environment with silicone or sulfur exposure and the LEL channel is showing drift, poisoning is the most likely cause. A drift you can't recover with calibration is a replacement signal, not a re-calibration signal.

LEL is the fire channel of a 4-gas monitor, so the SST4-MICRO buyer set is broad — anyone doing confined-space entry, hot-work permits, or general industrial atmosphere monitoring where combustible gas is a hazard.

• Oil & gas exploration, production, and field service — LEL monitoring at wellheads, tank batteries, and confined spaces
• Petroleum refining and petrochemical plants — hot-work permits, tank entry, unit shutdowns and turnarounds
• Natural gas utilities and pipelines — distribution work, meter sets, service repairs, and leak surveys
• Wastewater treatment — methane (digester gas) monitoring in wet wells, headworks, and process confined spaces
• Confined-space entry contractors — utility (sewer, water, telecom vaults), industrial, marine, tank cleaning
• Landfill and biogas — methane monitoring in gas collection systems and around leachate infrastructure
• Brewery, distillery, and fermentation — ethanol vapor monitoring in cellars, tank rooms, and process areas
• Cannabis extraction — butane, propane, and ethanol vapor monitoring in closed-loop and open-blast extraction rooms
• Painting, coatings, and print shops — solvent vapor monitoring where LEL accumulation is possible in spray booths or enclosed application areas
• Marine vessel interior spaces — cargo holds, engine rooms, ballast tanks (per API RP 2016 and USCG confined-space guidance)

Both paths work. The SST4 platform is designed for user sensor replacement, and the WatchGas SST4-MICRO manual walks through the swap procedure. After installation, you must complete a full calibration to verify the new LEL sensor's response against a known span gas — typically 50% LEL methane (2.5% CH4 in air) or 50% LEL pentane, depending on your calibration protocol.

LEL calibration is more straightforward than specialty-gas calibration (methane cal gas is standard, non-corrosive, and widely stocked), so DIY sensor swap is a realistic path if you have a functioning calibration workflow.

If you don't have LEL cal gas or a calibration station on hand — or you'd rather have the swap done by a factory-trained technician who verifies calibration against multiple LEL span points — sending the monitor to PK Safety is often the safer path. We handle the swap, cal gas, and return-to-service documentation.

The SST-X1-RPL sensor cell costs $160. A full new SST4-MICRO monitor starts at $680. Sensor swap saves $520 — about 76% of the full-monitor cost is preserved by the maintenance action.

That's the best sensor economics ratio in the entire WatchGas SST replacement-sensor catalog, because a 4-gas monitor carries the full electronics, display, battery, pump/diffusion housing, and sensor manifold — an LEL cell alone represents only a fraction of that assembly.

Sensor replacement is the more cost-effective path when the monitor's housing, display, battery, and other three sensors (O2, CO, H2S) are in good working order. Full-monitor replacement is a better fit when the monitor itself is aging, has physical damage, has a battery that no longer holds charge, or has multiple sensors due for replacement — and a full new monitor comes with the 3-year instrument warranty on the electronics.

Call PK Safety at 800.829.9580 with your monitor's condition and use pattern and we'll walk you through the choice.
