RKI Instruments  |  SKU: RKI01-66-6192-01

RKI VOC Pro (10.6 eV PID) Low Range Sensor/Transmitter

Ships in 6 - 8 weeks

Price $2,900.00
Shipping calculated at checkout.

RKI VOC Pro Series (10.6 eV PID) Low Range Sensor/Transmitter with j-box is a 3-wire explosion proof VOC gas detector that uses a PID sensor to detect a variety of gases. Wired power (12 to 35 VDC) with 4-20 mA analog and RS-485 Modbus outputs are standard. Magnetic switches allow for non-intrusive calibration while in the field as well as full system settings and diagnostics.

Please call Customer Service at 800-829-9580 if you have questions in choosing the correct product.

Designed to work with all RKI Beacon controllers, as well as most DCS / PLC systems: Beacon 110, Beacon 200, Beacon 410, or Beacon 800 Controllers.

Applications: Petrochemical plants, Refineries, Water & wastewater treatment plants, Pulp & paper mills, Manufacturing facilities, Automotive, Semiconductor plants, Chemical plants

Key Features:

  • PID sensor options: 10.6 eV ppm
  • Explosion Proof Transmitter without Relays, Class I, Div
  • Wired power (3-Wire), 12 to 35 VDC operating voltage
  • Operating temperature range -40°C to +54°C
  • Graphical LCD with LED backlight
  • 3 Push-button interface (ADD, MENU, SUB) with corresponding magnetic, non-intrusive switches
  • 2 Individually configurable alarms
  • 2 Front panel LED indicators (amber and red)
  • Output options: 4-20mA (3-wire) analog, RS-485 modbus (4 wire)
  • 1-Year warranty

Specification Sheet:

</div>

Manual:

Manual

Part Numbers:
66-6192-01 - 0-10 ppm
66-6192-02 - 0-20 ppm
66-6192-05 - 0-50 ppm

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

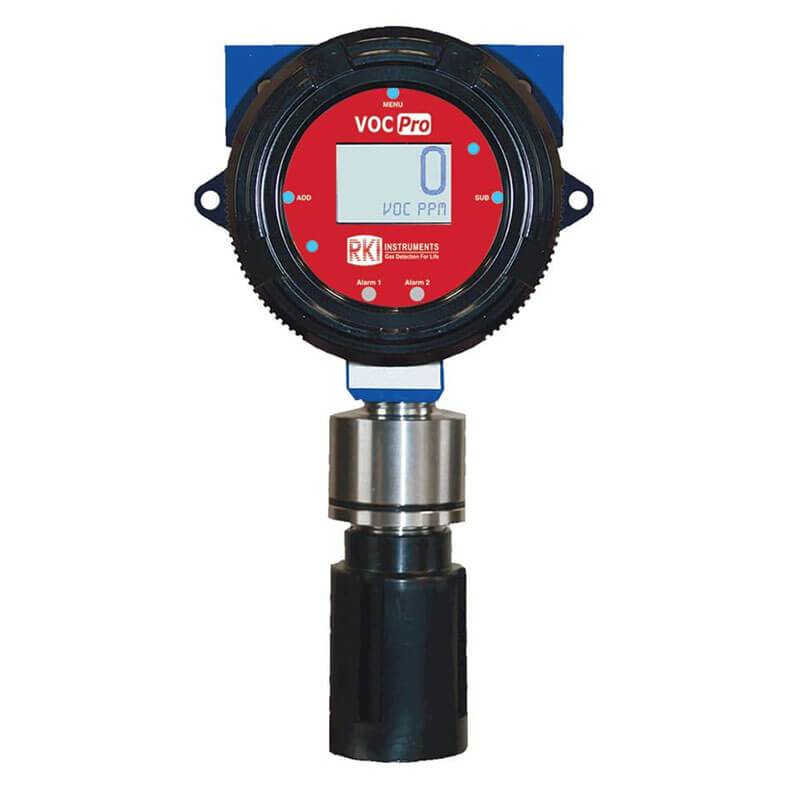

The image features the RKI VOC Pro (10.6 eV PID) Low Range Sensor/Transmitter from RKI Instruments, complete with a digital display showing "0 VOC PPM". The device exhibits a sleek red and black design, a protective casing, and a silver sensor at the bottom, making it ideal for effectively monitoring volatile organic compounds.
