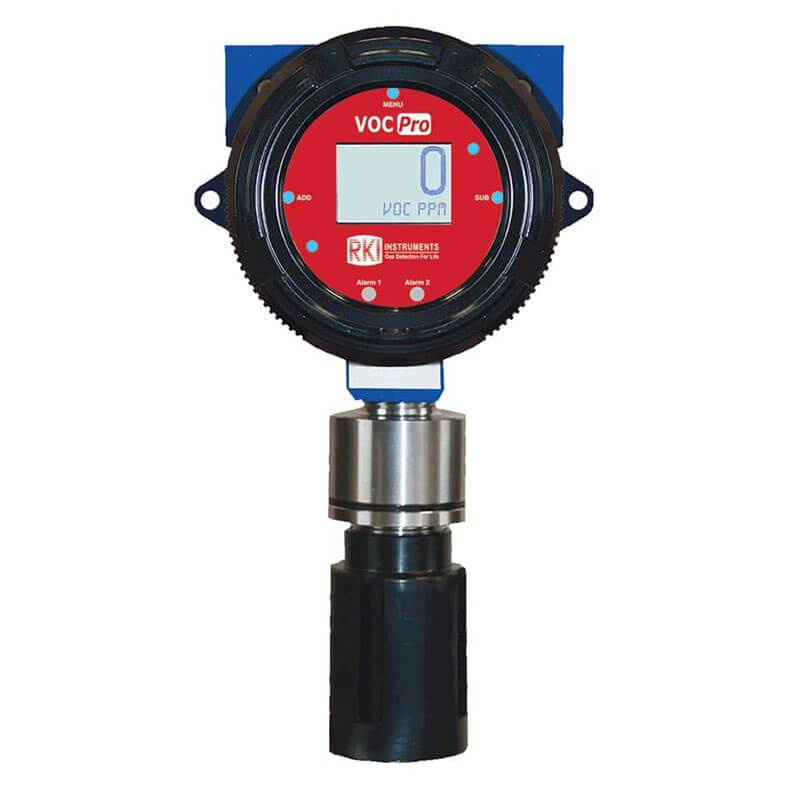

RKI VOC Pro (10.0 eV PID ) Sensor/Transmitter

RKI VOC Pro Series (10.0 eV PID) Sensor/Transmitter with j-box is a 3-wire explosion proof VOC gas detector that uses a PID sensor to detect a variety of gases. Wired power (12 to 35 VDC) with 4-20 mA analog and RS-485 Modbus outputs are standard. Magnetic switches allow for non-intrusive calibration while in the field as well as full system settings and diagnostics.

Please call Customer Service at 800-829-9580 if you have questions in choosing the correct product.

Designed to work with all RKI Beacon controllers, as well as most DCS / PLC systems: Beacon 110, Beacon 200, Beacon 410, or Beacon 800 Controllers.

Applications: Petrochemical plants, Refineries, Water & wastewater treatment plants, Pulp & paper mills, Manufacturing facilities, Automotive, Semiconductor plants, Chemical plants

Key Features:

• PID sensor options: 10.0 eV ppm
• Explosion Proof Transmitter without Relays, Class I, Div
• Wired power (3-Wire), 12 to 35 VDC operating voltage
• Operating temperature range -40°C to +54°C
• Graphical LCD with LED backlight
• 3 Push-button interface (ADD, MENU, SUB) with corresponding magnetic, non-intrusive switches
• 2 Individually configurable alarms
• 2 Front panel LED indicators (amber and red)
• Output options: 4-20mA (3-wire) analog, RS-485 modbus (4 wire)
• 1-Year warranty

Part Numbers:
66-6195-01 - 0-10 ppm
66-6195-02 - 0-20 ppm
66-6195-05 - 0-50 ppm
66-6195-10 - 0-100 ppm
