Frontline Patriot CS Davit with 3-Way Retrieval System

Please call us at 800-829-9580 for a shipping estimate and to place your order. Due to the size/weight of this system, it does not qualify for free shipping.

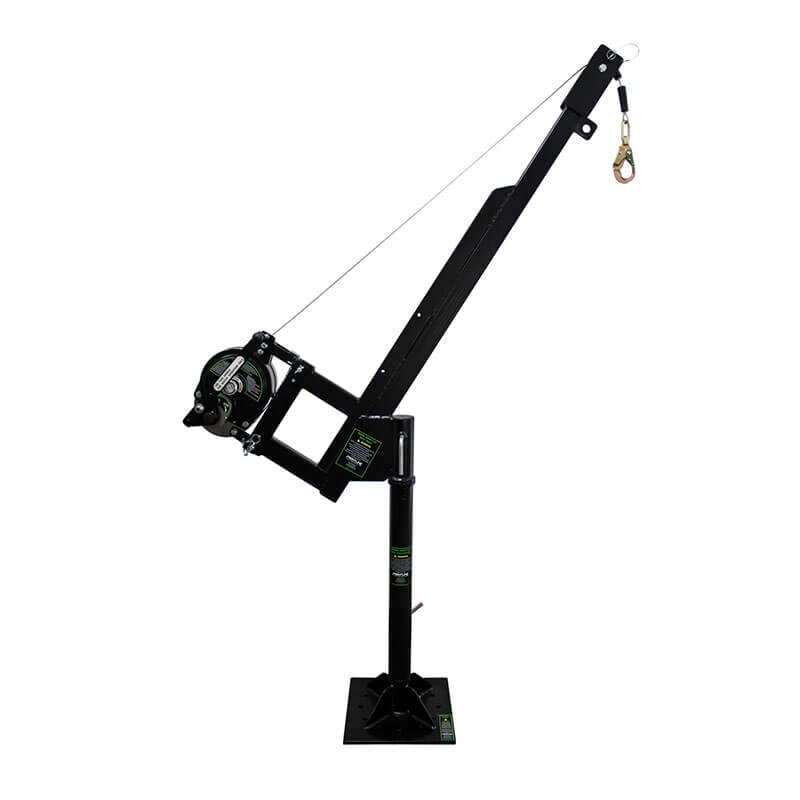

Frontline DAN75RA-US Patriot Confined Space Davit with 50' 3-Way Retrieval System is made up of highly durable powder coated steel material, the boom rotates 360° and can be conveniently used on concrete, steel surfaces or even out of the back of a truck. The Patriot Davit should be used with the Patriot 3-Way Retrieval to act as a complete fall arrest and rescue system for confined spaces.

Davit Key Features:

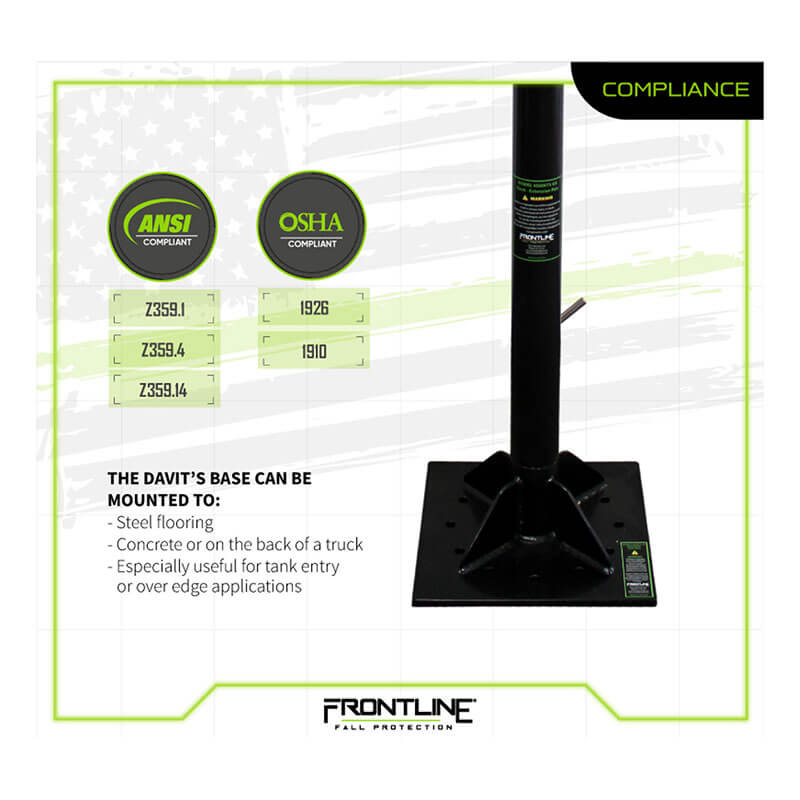

• The Davit’s base can be mounted to steel flooring, concrete or on the back of a truck and its especially useful for tank entry or over edge
• applications
• The Davit system can be easily set-up in just a matter of seconds by one person
• The removable boom rotates 360°, easily attaches to the base and can be locked in any position to offer flexibility for maneuvering equipment or a worker

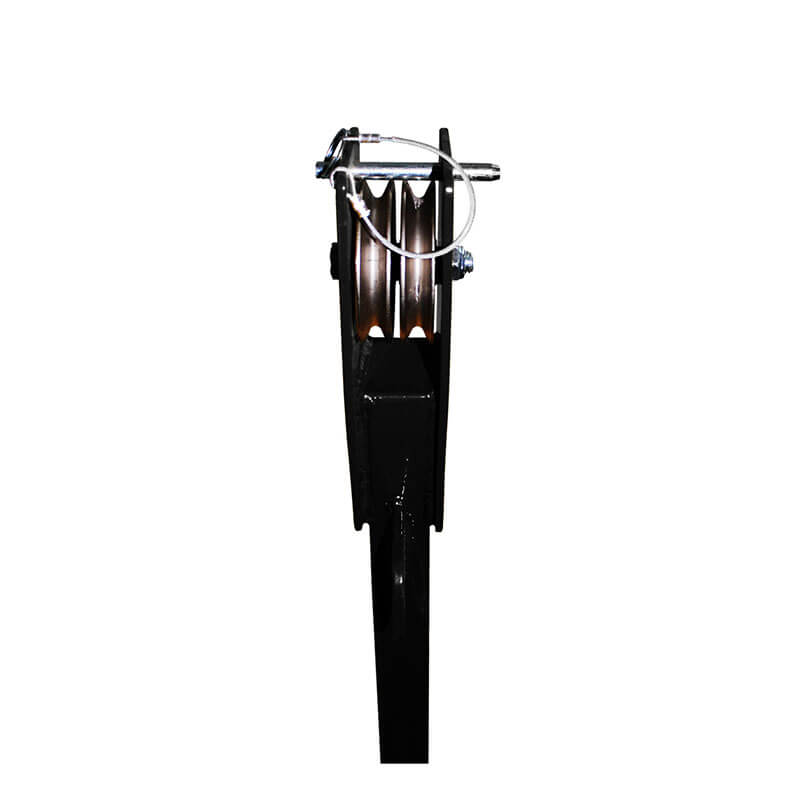

• Offers two connection points for device attachments, 3-way retrieval or winch option

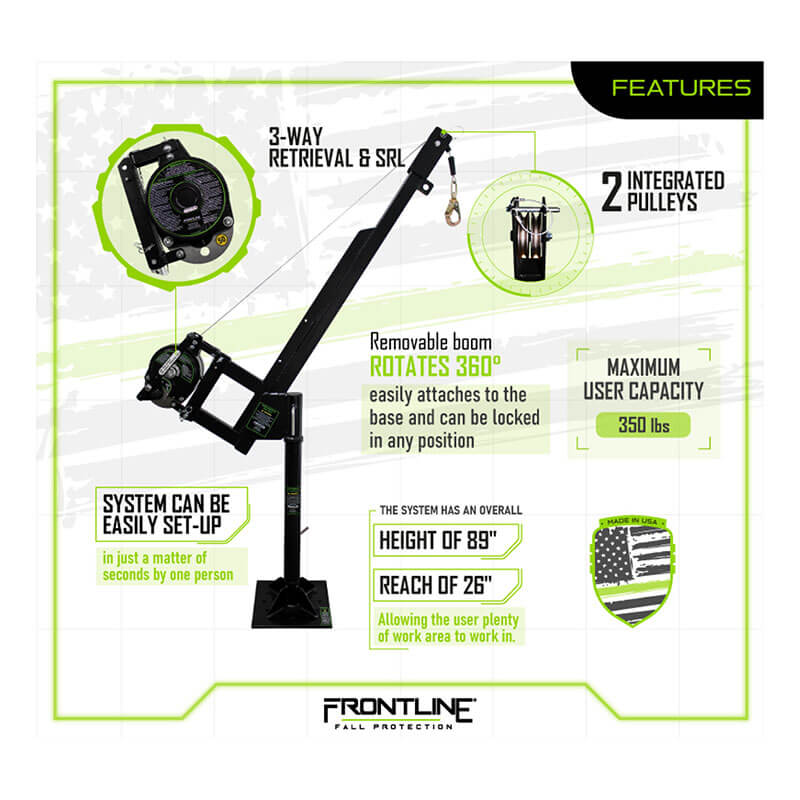

• The system has an overall height of 89" and reach of 26", allowing the user plenty of work area to work in

3-Way Key Features:

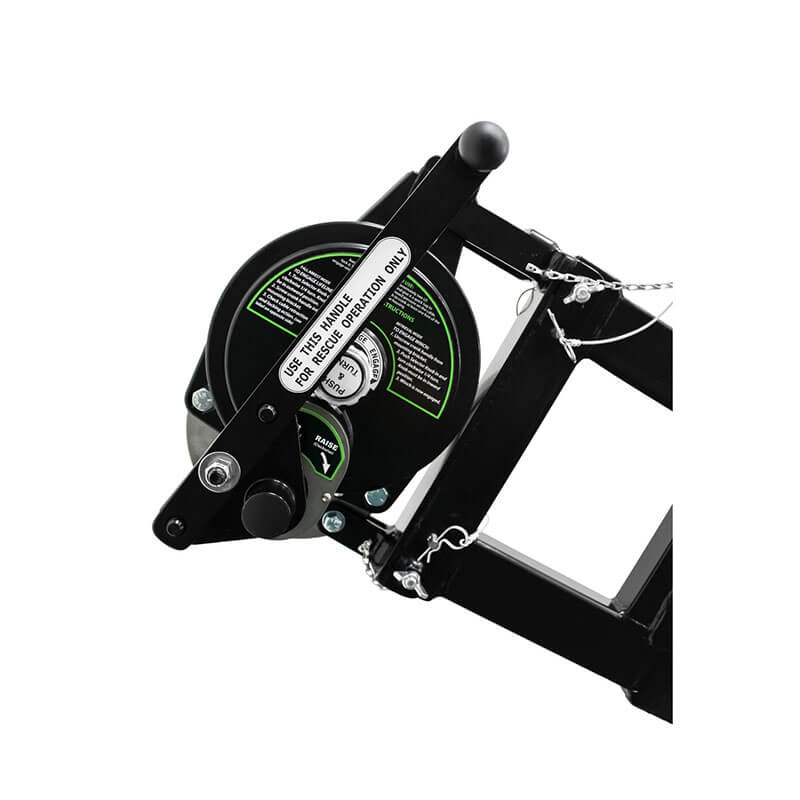

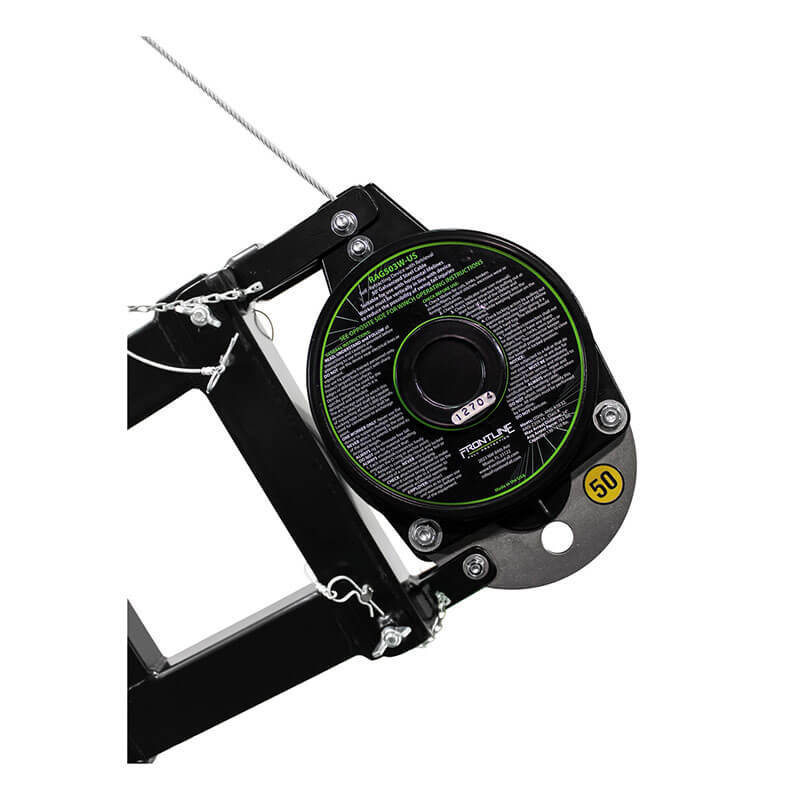

• Personnel 3-Way serves to lower, raise, rescue personnel and also as a self-retracting device in seconds with a quick switch of knob
• Includes precision internal components and a strong, weather-resistant cast aluminum housing to ensure reliability and dependability
• The Patriot model has two independent braking systems:
  • An energy absorbing centrifugal brake arrests a fall softly within 24"
  • A friction brake which activates immediately when raising or lowering is stopped and holds the load in place

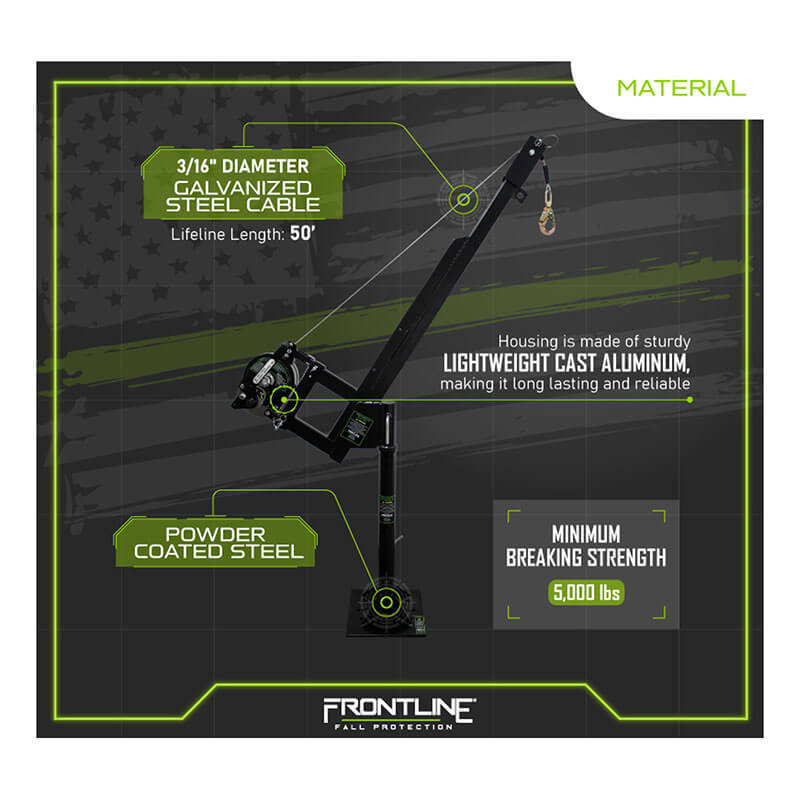

• Housing is made of sturdy lightweight cast aluminum, making it long lasting and reliable

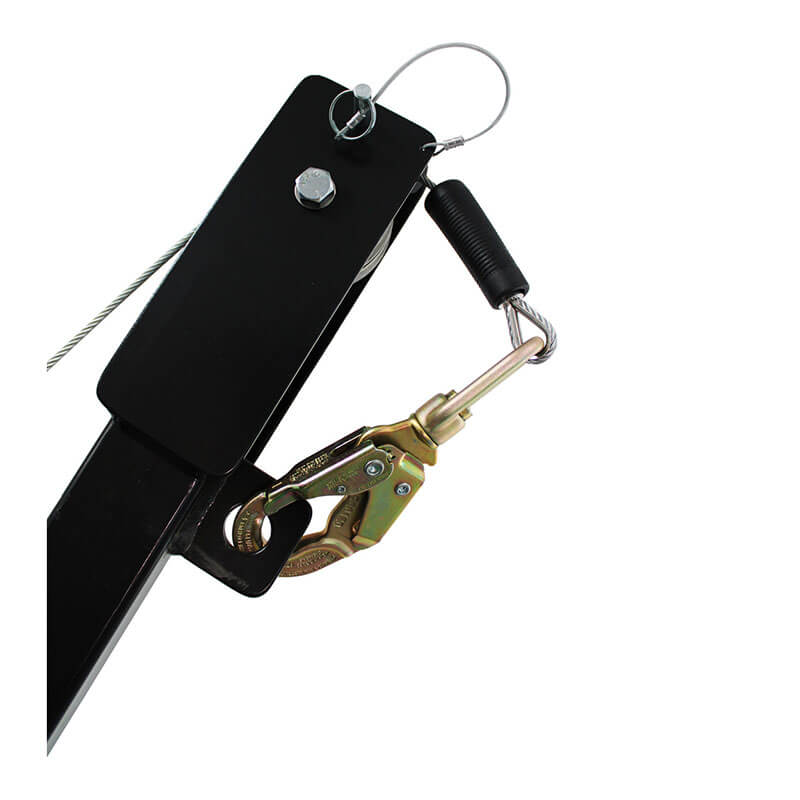

• Comes with 3/16" diameter galvanized steel cable with locking swivel snaphook with impact indicator

Part Number:
DAN75RA-US
