Allegro EZ Air Flex Grinding/Welding Air Shield SAR 9907-WADF

Note: This item is Made to Order, cannot be exchanged and is non-returnable.

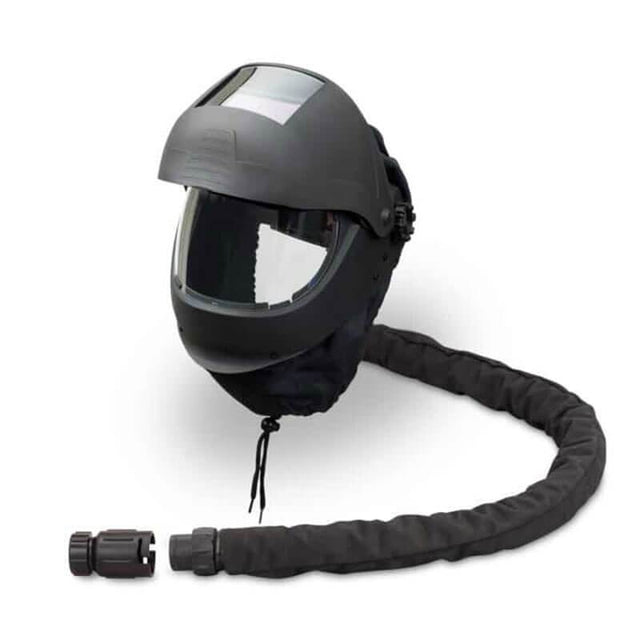

Allegro EZ Air Flex Grinding Air Shield Supplied Air Respirator (SAR) s intended for industrial applications where combined respiratory, eye and face protection are required. This durable grinding shield features a large viewing lens that maintains respiratory protection in different work environments. It is a system that provides a constant supply of fresh air over the user’s face. At an APF level of 25, it creates an optimal protective pressure inside the respirator head top keeping away particulates (dust, steel, manganese, stainless steel, chromium, galvanized steel, cadmium, lead and ozone). Complies with ANSI Z87.1+ for face-shield/eye protection. CE certified. NIOSH approved.

Shield Key Features:

• Made from Dupont super tough flame-retardant nylon that can withstand extreme cold/heat without cracking or deforming
• Large shield design accommodates safety glasses under the face shield
• Adjustable durable Pera-Lok locking ratcheting head gear with replaceable ultrasoft sweat band
• Comfortable and easily replaceable 100% cotton FR treated face seal
• Visor dimension: 7” x 5.4” x 0.040” (176.9 mm x 137.7 mm x 1.0 mm)
  • Viewing area: 41.2 sq. in. (26,560 mm2)
  • Visor thickness: 0.067” (1.7 mm)
• Complete with comfortable sweatband
• Complete head top assembly weighs 0.58 lbs. (265 grams)
• Shell is 0.28 lbs. (130 grams)
• Visor is 0.12 lbs. (55 grams)
• Direct flow into the helmet with new air-manifold system
• User control of airflow direction
  • Fully open-air setting to mitigate fogging
  • Fully closed air setting to channel airflow to breathing zone
  • Partially closed air setting for taking the sweat out of welding
  • Lightweight, super comfortable 100% FR treated face seal
  • Easy change face seal, no more nuts and bolts to fiddle around with
• APF 25
• Certifications:
  • Complies with ANSI Z87.1+
  • CE certified
  • NIOSH approved

Neck Shroud Key Features:

• Comfortable 100% cotton fire retardant material
• Full neck and ear coverage to prevent arc burns
• Easily replaceable and washable

Breathing Tube Key Features:

• Flexible breathing tube to accommodate more users
• Removable fire-retardant hose cover
• Same quick-disconnect bayonet couplers on both ends for easy assembly

Auto-Darkening Filter Key Features:

• Viewing area: 9.3 sq. in. (2.36” x 3.93”), 236.2 sq. mm (59.94 mm x 99.82 mm)
• Arc sensors: 2
• UV/IR: Up to shade 16, permanent outer coating to protect eyes
• Battery: Solar Cells primary with digital Lithium powered backup (lasts 5 – 10 years)
• Switching time: 1/10,000
• Light Shade Modes: 3
• Dark Shade Modes: 5-14
• TIG rating:<5 Amps
• Grind mode: Yes
• Magnetic Sensor:Yes
• Standards: ANSI and CSA
• Sensitivity: 8 Settings
• Delay: 8 Settings

Part Numbers:
9907-WADF - No Valve
9907-CWADF - w/HP Personal Air Cooler
9907-CVWADF - w/HP Flow Control Valve
9907-DWADF - w/Low Pressure Adapter
9907-HCWADF - w/HP Air Temperature Controller
