In today’s dynamic industrial environments, several processes involve exposure to hazardous airborne contaminants. Frequently, these include organic vapors found in everyday materials, such as solvents, paints and lacquers, adhesives, fuels, and refrigerants. Prolonged exposure to these vapors can cause a range of health problems, from eye, nose, and throat irritation to more serious illnesses like kidney damage and even cancer (Medical News Today, 2024).
Fortunately, respirators with organic vapor cartridges offer a straightforward, albeit critical, line of defense against these health risks.
What Is an Organic Vapor Cartridge?
An organic vapor cartridge is a replaceable respirator filter that removes organic vapors from being inhaled in the air. Organic vapor cartridges contain activated carbon, which absorbs organic compounds, preventing them from entering the respiratory system.
These cartridges are typically color-coded and labeled to indicate the specific contaminants they can filter, helping workers and safety managers choose the appropriate cartridge for their needs. Versatile solutions are also available, such as the 3M 6001 organic vapor cartridge, which provides NIOSH-approved protection for a range of organic vapors, including acetone, toluene, and gasoline.
The National Institute for Occupational Safety and Health (NIOSH) is the federal agency responsible for testing and approving respirators used in US workplace settings. According to the Centers for Disease Control and Prevention, “When an employer determines that respiratory protection is necessary in a workplace, the Occupational Safety and Health Administration (OSHA) requires the use of NIOSH-approved respirators (CDC, n.d.).
Applications of Organic Vapor Cartridges in Industry
Every day, workers across industries are exposed to organic chemicals and solvents. Below are some common applications for organic vapor cartridges:
- Chemical Manufacturing: Workers involved in the production, handling, or storage of chemicals often require organic vapor cartridges to protect themselves from vapors released during mixing, processing, or spills.
- Painting and Coating: Paints, varnishes, and lacquers emit organic vapors, making organic vapor cartridges essential personal protective equipment (PPE) for workers such as automotive paint technicians, furniture finishers, and construction workers.
- Printing: Inks and other solutions used in various printing processes often contain organic solvents.
It’s important to note that some applications require using a prefilter in addition to the organic vapor cartridge. For instance, spray painting and pesticide applications require prefilters, such as the 3M 5P71 or 3M 5N11. A filter retainer is required for secure attachment.
How Organic Vapor Cartridges Provide Protection
Organic vapor cartridges work through the absorption, where activated carbon within the cartridge traps and holds organic vapors. Activated carbon is typically made by heating coal, wood, or coconut shells in nitrogen or steam at approximate temperatures of 800-900 °C. This process results in materials with significant amounts of micropores that help absorb various organic vapors.
Here’s a closer look at how this process works:
- Absorption mechanism: Activated carbon in the cartridge has a large surface area with numerous micropores. When organic vapors pass through the cartridge, the air is filtered as vapors condense into these carbon pores. This prevents the vapors from reaching the user’s respiratory system.
- Selectivity: Organic vapor cartridges target specific types of organic vapors. Their micropores can be measured and optimized for specific product needs and performance. The effectiveness of the cartridge can also depend on the chemical compatibility between the vapor and the activated carbon. However, activated carbon alone cannot absorb other vapors, such as acid gases, ammonia, and formaldehyde. Additional metals and salts are usually added to the carbon to filter out these types of compounds.
- Capacity: The capacity of an organic vapor cartridge to absorb vapors is finite, influenced by factors including exposure concentration, temperature, humidity, and breathing rate. Over time, the activated carbon becomes saturated and loses its effectiveness. Most cartridges come with guidelines on their lifespan and indicators that signal when replacement is needed.
Remember, organic vapors can enter the cartridge during storage. As such, always be mindful of end-of-service life indicators and follow the manufacturer’s replacement guidelines to maintain optimal protection.
Choosing the Right Organic Vapor Cartridge
Here are some factors to consider when choosing a cartridge to ensure protection from harmful vapors:
- Identify the contaminants: Determine the specific organic vapors present in your work environments and their concentration levels. This may require consulting safety data sheets or conducting air detection using multi-gas monitors.
Select the cartridge type: Use the color-coding system to identify the appropriate cartridge for your needs. For example, cartridges for organic vapors typically have black labels, while pink and black labels are for certain organic vapors and particulates.
- Check for NIOSH approval: Ensure the cartridge is NIOSH-approved for the specific types of vapors and concentration levels in your workplace. NIOSH approval signifies rigorous testing and guarantees a minimum level of protection.
- Respirator compatibility: Ensure the cartridge is compatible with your respirator model. Different brands and models may require specific cartridges.
Contact PK Safety if you’re unsure which organic vapor cartridge is appropriate for your specific applications.
Popular Models: 3M Organic Vapor Cartridges
3M has had a long history of developing high-quality and reliable respiratory kits and protection equipment. Here are some popular models of 3M organic vapor cartridges to consider:
- 3M Organic Vapor Cartridge 6001: Suitable for various applications,the 6001 may be used for vapor concentrations up to 10 times the Permissible Exposure Limit (PEL) with half facepieces or 50 times PEL with full facepieces.

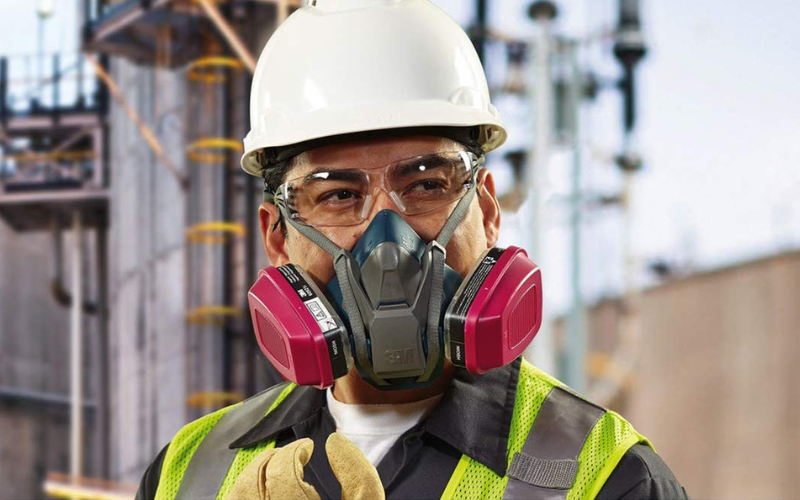

- 3M 60921 Organic Vapor Cartridge/P100 Filter: This product combines a charcoal-filled organic vapor cartridge with a P100 filter. It’s an ideal protective solution for workers in petrochemical, construction, transportation, and chemical manufacturing.
- 3M 6003 Organic Vapor/Acid Gas Cartridge: The 3M 6003 has granulated charcoal that absorbs organic vapors and certain acid gases, including chlorine, hydrogen chloride, and sulfur dioxide. It is commonly used in agriculture, petrochemicals, and pharmaceuticals.
PK Safety offers these organic vapor cartridges and other respiratory protection products from leading manufacturers. Contact our worker safety experts to learn more.
References:
- Photo credit: 3M
- Medical News Today (May 13, 2024). Health effects of volatile organic compounds. Retrieved from Volatile organic compounds (VOCs): Health effects and risks (medicalnewstoday.com)
Centers for Disease Control and Prevention (n.d.) The Respiratory Protection Information Trusted Source. Retrieved from Use of NIOSH-approved Respirators | NPPTL | NIOSH | CDC
Frequently Asked Questions
What does an organic vapor cartridge protect against?
Organic vapor (OV) cartridges use activated carbon to absorb specific organic vapors from the ambient air, including vapors from solvents, paints, lacquers, adhesives, fuels, and many industrial chemicals. The cartridge's protection is defined by its NIOSH certification — each cartridge is approved for specific vapor classes. OV cartridges do NOT protect against particulates (dust, mist, or aerosols), acid gases, ammonia, or oxygen-deficient atmospheres. For dual hazards, combination cartridges pair OV with additional filter media (see the OV/P100, OV/AG combinations below).
What is the NIOSH color code for organic vapor cartridges?
NIOSH assigns standardized colors to cartridge and filter labels so wearers and safety managers can identify protection at a glance. Black indicates organic vapor (OV) cartridges. White indicates acid gas (AG) cartridges (chlorine, hydrogen chloride, sulfur dioxide, hydrogen sulfide). Yellow indicates combined organic vapor and acid gas (OV/AG) cartridges. Green indicates ammonia/methylamine cartridges. Magenta indicates P100 particulate filters. Combination cartridges display multiple color bands (for example, a yellow band plus a magenta band for OV/AG/P100). All NIOSH-certified cartridges must be labeled per 42 CFR Part 84 and the label must remain legible during use.
When do you need to change an organic vapor cartridge?
OSHA 29 CFR 1910.134 requires employers to implement a cartridge change schedule for organic vapor cartridges based on objective information about the workplace exposure. If the cartridge has an End-of-Service-Life Indicator (ESLI) certified for the specific conditions, replacement follows the indicator. If no ESLI exists, the employer must establish a data-driven change schedule using cartridge service-life data, exposure concentrations, work rate, temperature, and humidity. Manufacturers such as 3M provide service-life software to help calculate change intervals. Change immediately if the wearer detects vapor breakthrough (taste or smell of the contaminant) or if breathing resistance increases significantly.
What is the difference between OV, OV/P100, and OV/AG cartridges?
Standard organic vapor (OV) cartridges filter organic vapors only. OV/P100 combination cartridges pair the OV filter with a P100 particulate filter (99.97% efficiency) — required when workers face both organic vapors AND particulates such as paint spray, sanding dust, or lead-containing aerosols. OV/AG cartridges combine organic vapor protection with acid gas protection for hazards like chlorine, hydrogen chloride, sulfur dioxide, and hydrogen sulfide. OV/AG/P100 cartridges combine all three. Selection depends on the specific hazards identified in the workplace exposure assessment; consult Safety Data Sheets and NIOSH-approved manufacturer selection guides.
Do organic vapor cartridges protect against ammonia or formaldehyde?
Standard OV cartridges do NOT protect against ammonia, methylamine, or formaldehyde. Ammonia and methylamine require a dedicated ammonia/methylamine cartridge (NIOSH color-coded green). Formaldehyde requires a formaldehyde/organic vapor combination cartridge and, per OSHA regulations, gas-proof goggles when a half-facepiece respirator is used. Do not use a standard OV cartridge outside its NIOSH-approved contaminant list; check the cartridge label and manufacturer documentation before every use.
What OSHA rule covers organic vapor respirator use?
OSHA 29 CFR 1910.134 (the Respiratory Protection standard) governs all workplace respirator use, including organic vapor cartridge respirators. It requires employers to conduct a workplace hazard assessment, select NIOSH-certified respirators appropriate for the identified hazards, implement a written respiratory protection program (including fit-testing, medical evaluation, and training), and establish cartridge change schedules for gas and vapor cartridges when no End-of-Service-Life Indicator is available. All filters, cartridges, and canisters must remain properly labeled and color-coded per NIOSH standards throughout use.
