RKI Direct Connect Gas Sensor (O2, H2S, CO)

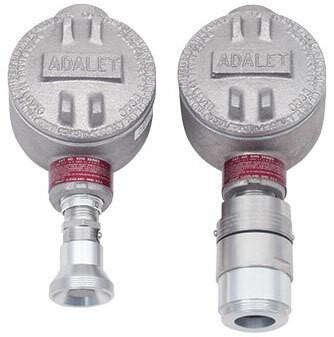

The Direct Connect series of gas sensors from RKI Instruments provide reliable, economical detection of common gas hazards. Designed specifically to work with RKI controllers such as the Beacon 110, Beacon 200, or Beacon 410, the Direct Connect Sensors can be either mounted directly to the controller box, or mounted to explosion-proof junction boxes for remote gas detection. The Direct Connect Sensors are available for CO2, LEL, H2 Specific LEL, O2, H2S, CO, and for a variety of toxic gases. The LEL sensors, as well as O2, H2S, CO, and CO2 sensors are explosion-proof with flame arrestors and are approved for use in classified hazardous areas (Class 1, Groups B, C, and D).

Key Features:

• Electrochemical-type plug-in sensors
• Fast response
• Compatible with Beacon 110, Beacon 200, and Beacon 410
• Long life
• No tools required for replacement
• Indoor/outdoor
• Water repellent patented sensor coating (except toxics)
• Available for LEL, H2, O2, CO, H2S, and CO2
• Toxics available: Cl2, NH3, SO2, and more
• Long life sensors (2 + years typical)
• Explosion proof construction

Description: Oxygen (O2)

Measuring Range: 0-25%

Lower Detectable Limit (LDL): 0.1% volume

Response Time: 90 seconds

Life Expectancy: 2-3 years with normal service

Part Numbers:
65-2514RK - Sensor only
65-2515RK - With J-Box

Description: Hydrogen Sulfide (H2S)

Measuring Range: 0-100 ppm

Lower Detectable Limit (LDL): 2% of full scale

Response Time: 60 seconds

Life Expectancy: 2-3 years with normal service

Part Numbers:
65-2428 - Sensor only
65-2427RK-05 - With J-Box

Description: Carbon Monoxide (CO)

Measuring Range: 0-300 ppm

Lower Detectable Limit (LDL): 2% of full scale

Response Time: 90 seconds

Life Expectancy: 2-3 years with normal service

Part Numbers:
65-2438 - Sensor only
65-2437RK-05 - With J-Box
